Overview

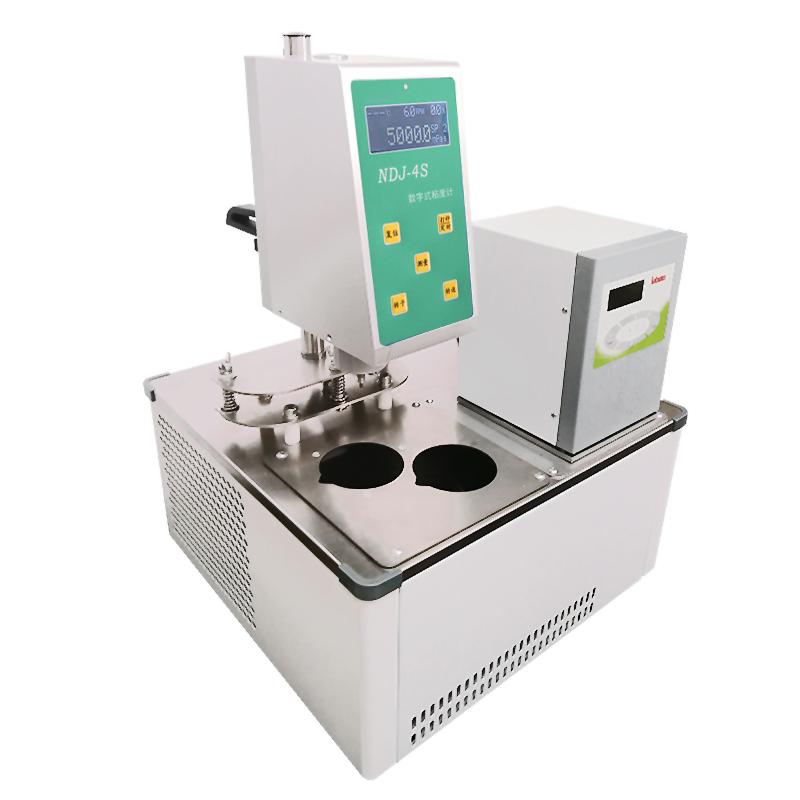

HuiNuo NDJ-4S + LC-1008 Thermostatic bath digital display Rotational Viscometer uses LCD screen, which can display viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. Measurement range is 20~ 2000000 mPa · s, accuracy is +/- 5%, with 1~ 4 rotors. Thermostatic bath has heating and cooling functions. Temperature range is -10 ° C to 150 ° C, which can be used for internal and external circulation applications.
Features
1. The LCD screen can display a variety of parameters
2. Wide measurement range and high accuracy
3. Thermostatic bath Appearance compact, small size, easy to place on the desktop
4. With heating and cooling functions, precise temperature control
5. Low-level buoy provides alarm function to prevent dry burning
6. Maintenance-free pressure/suction pump, Pump Power, Temperature uniformity
7. Multiple operation modes are available, and accidental power failure can be automatically restored
8. Optional intelligent control function, support remote communication and analog signal input
Principle
Viscometer uses swirl/spin rotors to generate shear forces in liquids for viscosity measurement. Thermostatic bath controls temperature with intelligent PID and circulates inside and outside using a pressure/suction pump to ensure that the sample remains thermostatic at the set temperature, thus ensuring accurate viscosity measurement.
Applications
Chemical, Petroleum, Food, Pharmaceutical, Coatings, Scientific Research
Steps
1. Connect the Power Adapter
Step 2 Install the right rotor
3. Rotation speed and temperature parameters
4. Thermostatic bath
5. Start measurement and read display data
6. Turn off the instrument after completing the test
Notice
• Check the liquid level before use to avoid dry burning
• Power supply voltage meets requirements
• Operating Ambient Temperature should be within the range of 5~ 32 ℃
• relative humidity not more than 80%
• Regular maintenance of pumps and Thermostatic bath components
• Avoid running Thermostatic baths without liquids
