Overview

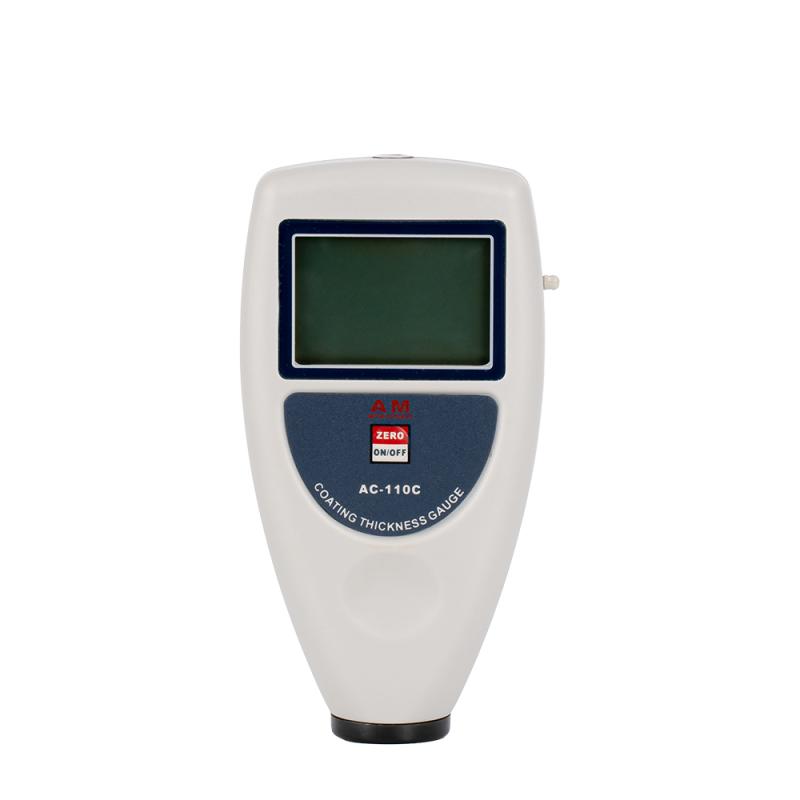

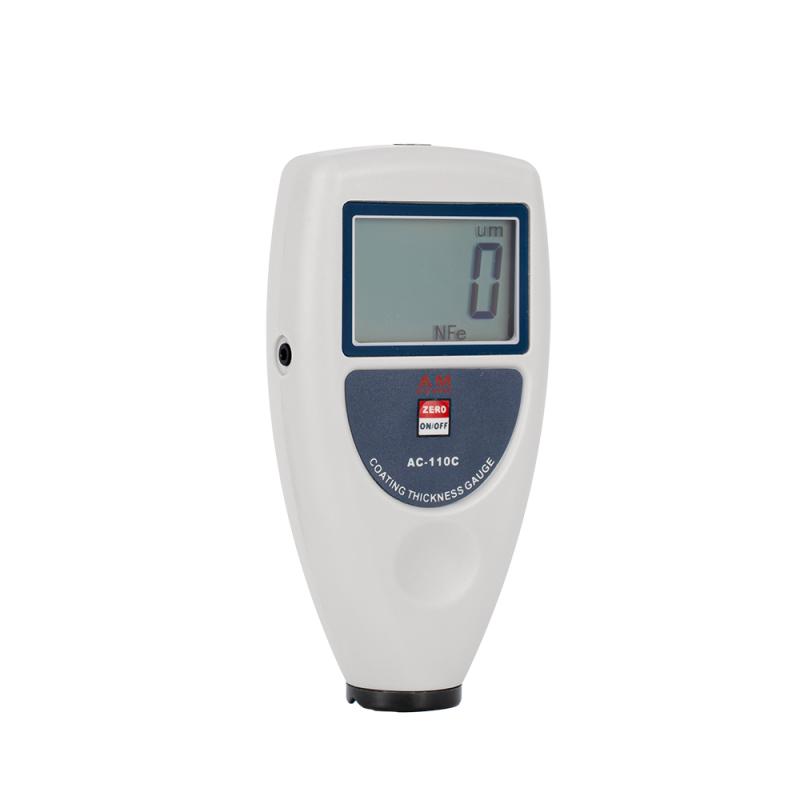

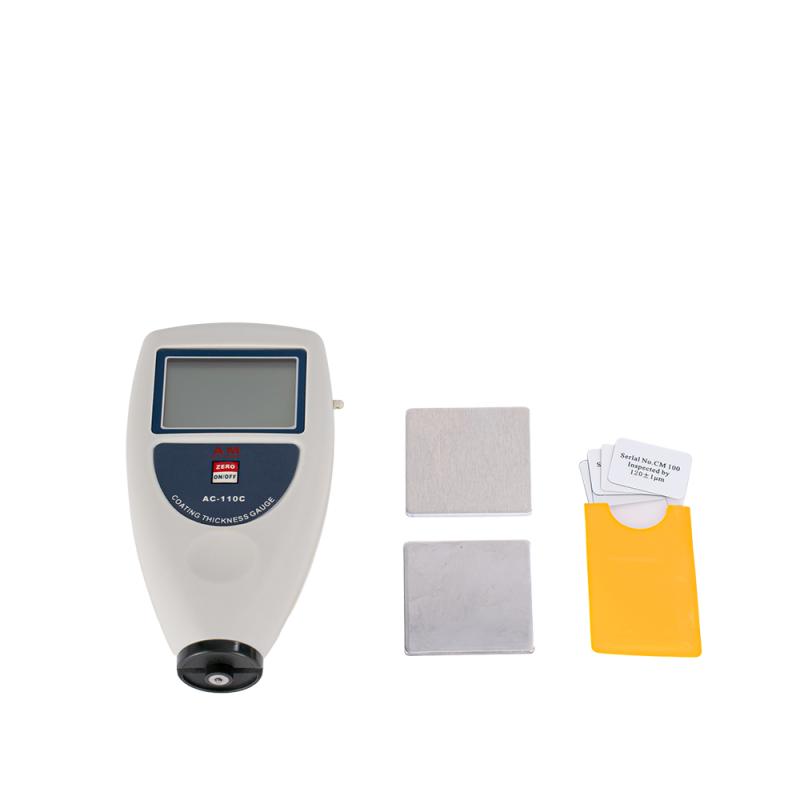

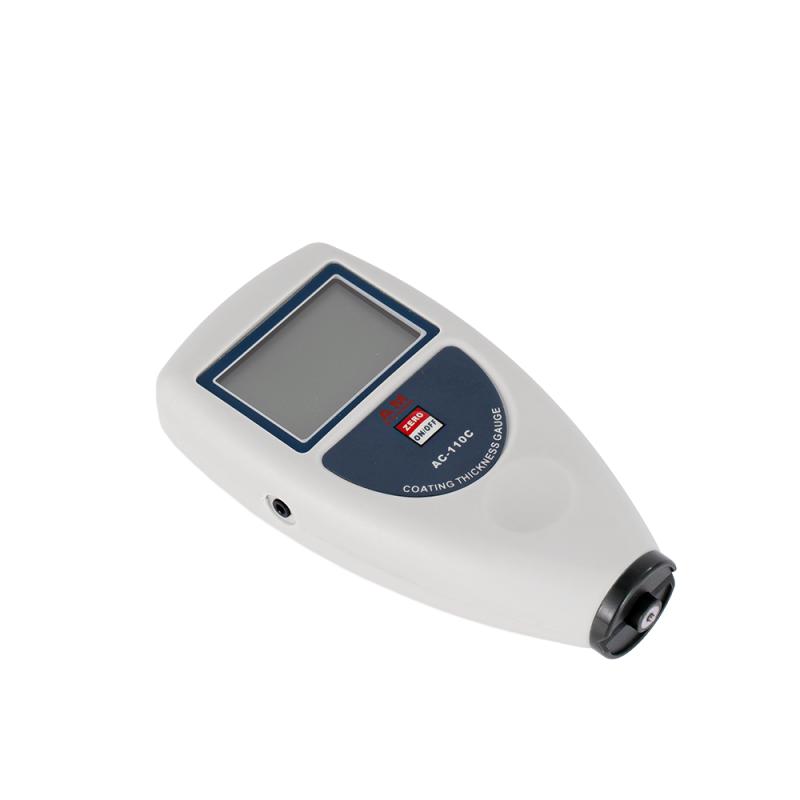

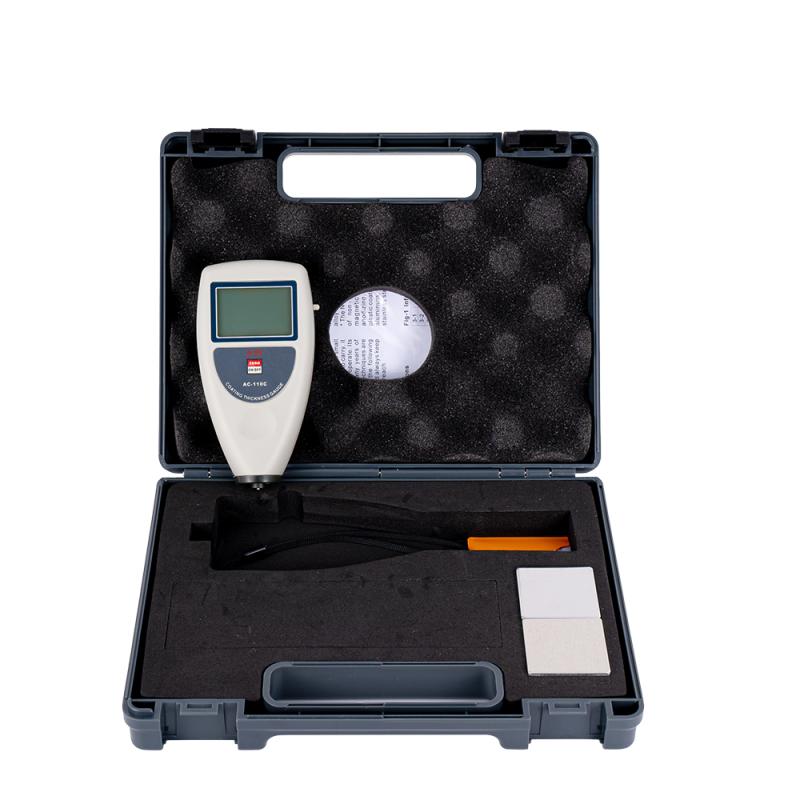

The AMITTARI AC-110C Coating thickness gauge is a basic monolithic instrument suitable for Coating thickness measurement in automobiles, paints, etc. It has a wide range of applications and accurate measurements. The instrument can measure almost all substrates, including iron and non-iron, with USB data connection and Bluetooth transmission. The monolithic design is suitable for one-handed operation, stable measurement, and the large contact surface Probe provides continuous and accurate measurement results with strong Repeatability.
Features
1. Iron-based and non-iron-based dual-use Coating thickness gauge.
2. Single and continuous Measurement modes are available.
3. Male/imperial unit conversion, with functions such as manual shutdown, automatic shutdown and undervoltage prompt.
4. Automatically remember the calibrated value and automatically identify the material of the tested substrate; there is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement.
5. Use USB data cable output to communicate with PC; in addition, provide optional configuration Bluetooth data output selection.
Principle
The Coating thickness gauge automatically recognizes the substrate material and measures Coating thickness by contacting the measured surface through Probe. Adopts automatic memory calibrating value technology to ensure measurement accuracy, provides a prompt tone through a buzzer during operation, and supports single and continuous Measurement modes.
Applications
Automotive, paints
Steps
1. Turn on the instrument power.
2. Select Single or Continuous Measurement mode.
3. Probe contact with the measured surface for measurement.
4. Read the measurement results, select the metric/imperial unit.
5. Transfer data to the PC using USB or Bluetooth.
Notice
• Operating conditions: Temperature -5~ 50 ° C, Humidity < 95% RH.
• Powered by 2 * 1.5AAA AA batteries.
• The buzzer does not sound during continuous measurement.
• The thinnest substrate is 0.3mm, and the smallest curved surface must meet the specifications.
