Overview

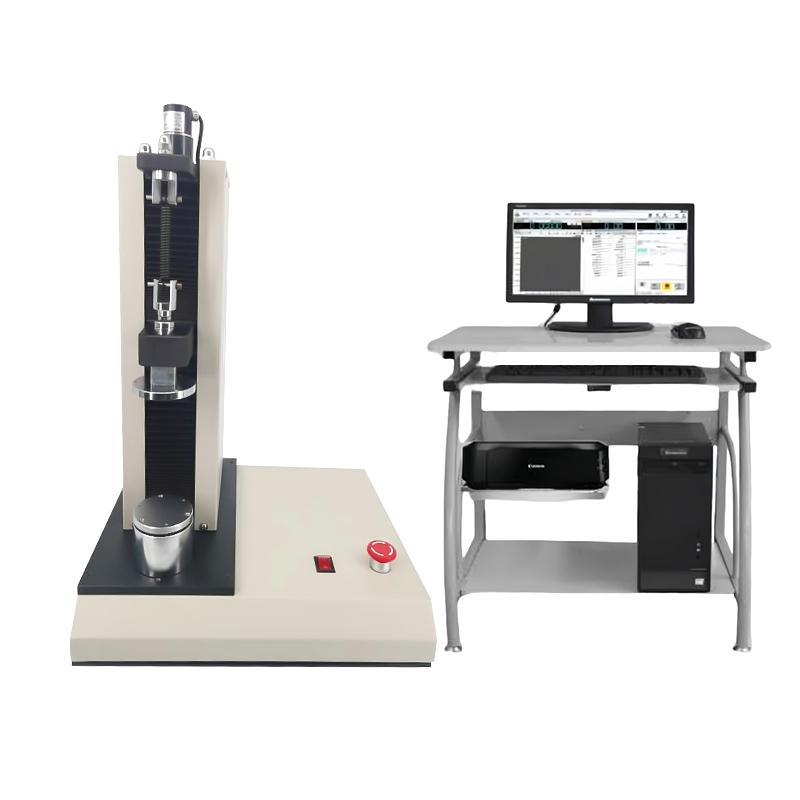

HBO ZTD-10 desktop microcomputer-controlled spring testing machine is a device dedicated to spring performance testing. It adopts an all-digital speed control system and stepper motor drive. The control software with Windows as the Operating interface realizes screen display and automatic operation of test force, displacement, deformation and other parameters. This machine is mainly used for spring deformation, tensile pressure, spring coefficient and other performance testing. It conforms to JB/T7796-2017 standard and supports national standards and ISO, JIS, ASTM, DIN and other international standards. It is suitable for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High resolution, High Stability
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Test software: Chinese WINDOWS interface, menu prompts, mouse operation
7. Display mode: Test data and Linear dispersion are dynamically displayed with the test process
8. Automatic transmission: Test speed can be automatically changed according to the preset program
9. Automatic reset: After the test is completed, the moving beam automatically returns to its original position
10. Qualification judgment: In addition to automatically obtaining the test results, the qualification judgment can be made according to the qualified range of the preset Standard value
11. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
12. Test data: Test data can be queried and exported in word or excel format
13. Test report: Test report can be prepared in the format required by the user, form a report and print it
14. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
This testing machine adopts all-digital speed control system with high speed regulation accuracy and stable performance and stepper motor as the driving system, the controller is the core of the Control system, and the control and data processing software with Windows as the Operating interface realizes the screen display of test force, peak test force, beam displacement, test deformation and test Linear dispersion. All test operations can be automatically completed on the computer through the mouse.
Applications
Testing of spring deformation, tensile pressure, spring coefficient and other performance parameters, relevant tests of various resilience samples and Miscellaneous similar parts, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017 "Spring Tension and Compression Testing Machine", national standard, ISO, JIS, ASTM, DIN
Steps
1. Start the test software on the computer with the mouse
2. Select the test mode (fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation)
3. Set test parameters, including force value unit, displacement unit, Graduation, Test speed, etc
4. Start the test, the system automatically displays the test data and Linear dispersion
5. After the test is completed, the moving beam automatically returns to its original position
6. View and export trial data or generate reports
Notice
• Power supply voltage 220V 50HZ
• Pay attention to the overload protection function to avoid equipment overload
• Use an emergency shutdown device to stop the test in time under abnormal circumstances
• Check the leakage protection device to ensure safety
• Periodic calibrated force value Indication Error and displacement accuracy
Test space is kept clean to avoid affecting test results
