Overview

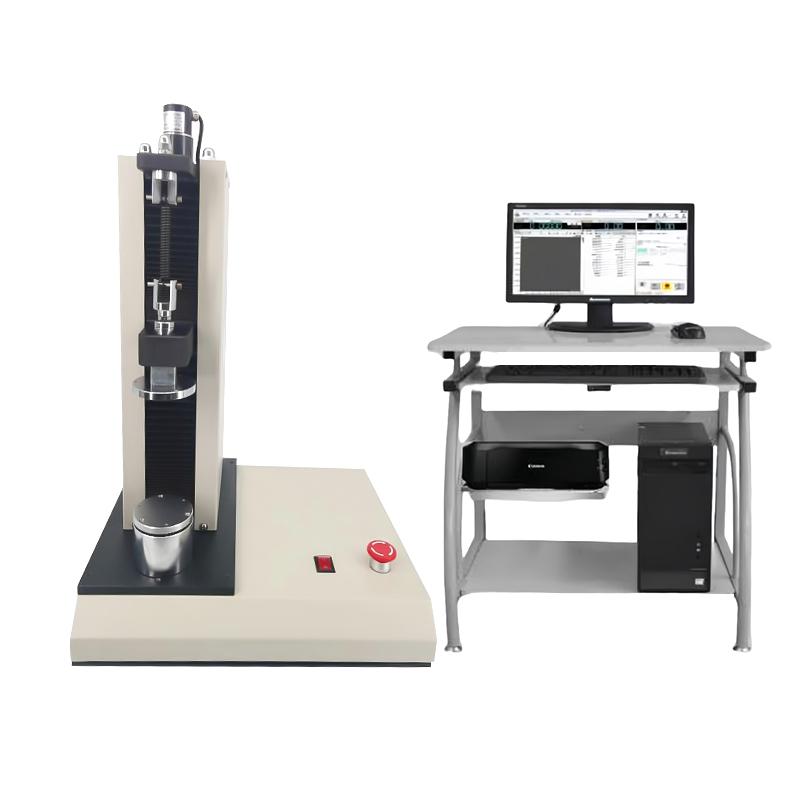

HBO ZTD-50 desktop microcomputer-controlled spring testing machine is a device dedicated to spring performance testing. It adopts an all-digital speed control system and stepper motor drive. Operating interface control software with Windows realizes screen display and automatic operation of test force, displacement, deformation and other parameters. Mainly used in spring deformation, tensile pressure, spring coefficient and other performance testing, in line with JB/T7796-2017 standards, and supports national standards and ISO, JIS, ASTM, DIN and other international standards. It is suitable for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High resolution, High Stability
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Test software: Chinese WINDOWS interface, menu prompts, mouse operation
7. Display mode: Test data and Linear dispersion are dynamically displayed with the test process
8. Automatic transmission: Test speed can be automatically changed according to the preset program
9. Automatic reset: After the test is completed, the moving beam automatically returns to its original position
10. Qualification judgment: In addition to automatically obtaining the test results, the qualification judgment can be made according to the qualified range of the preset Standard value
11. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
12. Test data: Test data can be queried and exported in word or excel format
13. Test report: Test report can be prepared in the format required by the user, form a report and print it
14. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
The testing machine adopts a fully digital speed control system with high speed regulation accuracy and stable performance and a stepper motor as the driving system. The controller is the core of the Control system. The screen display of test force, peak test force, beam displacement, test deformation and test Linear dispersion is realized through the control and data processing software of the Windows Operating interface. All test operations can be automatically completed on the computer through the mouse.
Applications
Spring performance testing, resilience test, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Start the test software on the computer with the mouse
2. Select the test mode: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height or fixed force value to measure deformation
3. Set test parameters, such as force value units, displacement units, Graduation, etc
4. Start the test, and the system automatically controls the test process
5. After the test is completed, the moving beam automatically returns to its original position
6. View the test data and Linear dispersion for qualified judgment
7. Store or export test data, generate and print test reports
Notice
* Power supply voltage AC 220V 50HZ
Check equipment connections and parameter settings before testing
* Avoid overload use, the device comes with overload protection function
Use emergency shutdown devices in emergencies
Pay attention to leakage protection to ensure safe operation
Maintain equipment regularly for accuracy and Stability
