Overview
Coating thickness gauge AC-112AS (split) is widely used, accurate measurement, and can measure all substrates, whether ferrous or non-ferrous. The instrument has RS-232C data cable, USB data connection and Bluetooth transmission function. The integral instrument is suitable for one-handed operation and stable measurement. Split provides a variety of Probes for greater measurement mobility.
Features
1. Iron-based and non-iron-based dual-use Coating thickness gauge
2. Single and Continuous Measurement modes available
3. Male/imperial unit conversion, with functions such as manual shutdown, automatic shutdown and undervoltage prompt
4. Automatically remember the calibrated value and automatically identify the material of the tested substrate; there is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement
5. Adopt USB data cable output, RS-232C data cable and software to communicate with PC; in addition, provide optional configuration Bluetooth BluetoothTM data output selection
Principle
The instrument automatically recognizes the substrate material and measures Coating thickness by contacting the tested substrate through Probe. The large contact surface of the large type of Probe provides better Stability, ensuring continuous and strong measurement results. Repeatability.
Steps
1. Select Single or Continuous Measurement mode

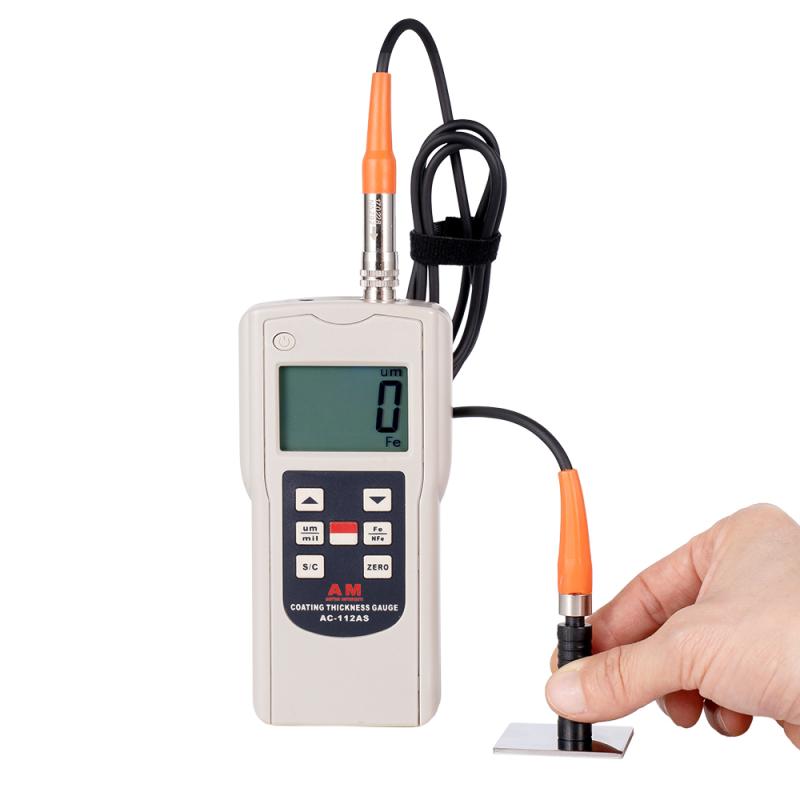

2. Contact the Probe with the surface of the tested substrate
3. Read the measurement results on the display
4. Data can be transferred via USB, RS-232C or Bluetooth
Notice
* Temperature range 0~ 50 ° C (32~ 122 ° F)
Humidity should be less than 80% RH
* The thinnest substrate is 0.3mm/12mil
* Minimum convex diameter is 4mm/0.16inch
* Minimum concave radius is 25mm/0.98inch
* Minimum measurement surface diameter is 6mm/0.24inch
* Powered by 4x1.5V AAA AA batteries
