Overview

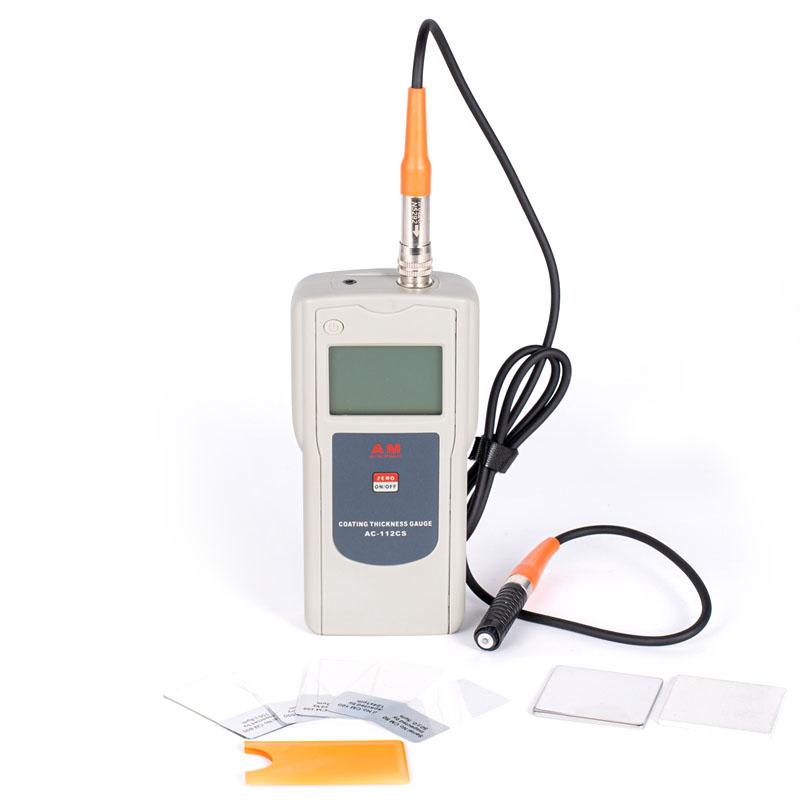

The AMITTARI AC-112CS Coating thickness gauge is a dual-use Coating thickness gauge compliant with ISO2178, ISO-2361, DIN, ASTM and BS standards, suitable for laboratory and harsh field environments. F Probe can measure the thickness of non-magnetic materials (such as paints, plastics, enamels, copper, zinc, aluminum, chromium, etc.) on magnetic materials (such as iron, nickel), and is often used for measurement of galvanized coatings, lacquers, enamels, phosphating coatings, copper tiles, aluminum tiles, certain alloy tiles, paper, etc.
Features
1. Iron-based and non-iron-based dual-use Coating thickness gauge
2. Single and Continuous Measurement modes available
3. Male/imperial unit conversion, with functions such as manual shutdown, automatic shutdown and undervoltage prompt
4. Automatically remember the calibrated value and automatically identify the material of the tested substrate
5. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement
6. Use USB data cable output, RS-232C data cable and software to communicate with PC
7. Provide optional configuration Bluetooth BlueTothTM data output selection
Principle
The Coating thickness gauge uses F Probe measurement of the thickness of non-magnetic materials on magnetic materials to achieve accurate measurement by automatically identifying the material of the tested substrate and automatically remembering the calibrated value. Measurement mode can be selected as needed, and measurement data can be communicated with PC via USB, RS-232C or Bluetooth.
Applications
Thickness measurement of galvanized layer, paint layer, enamel layer, phosphating layer, copper tile, aluminum tile, some alloy tile, paper, etc
Standards
ISO2178、ISO-2361、DIN、ASTM、BS
Steps
1. Measurement mode (single or continuous)

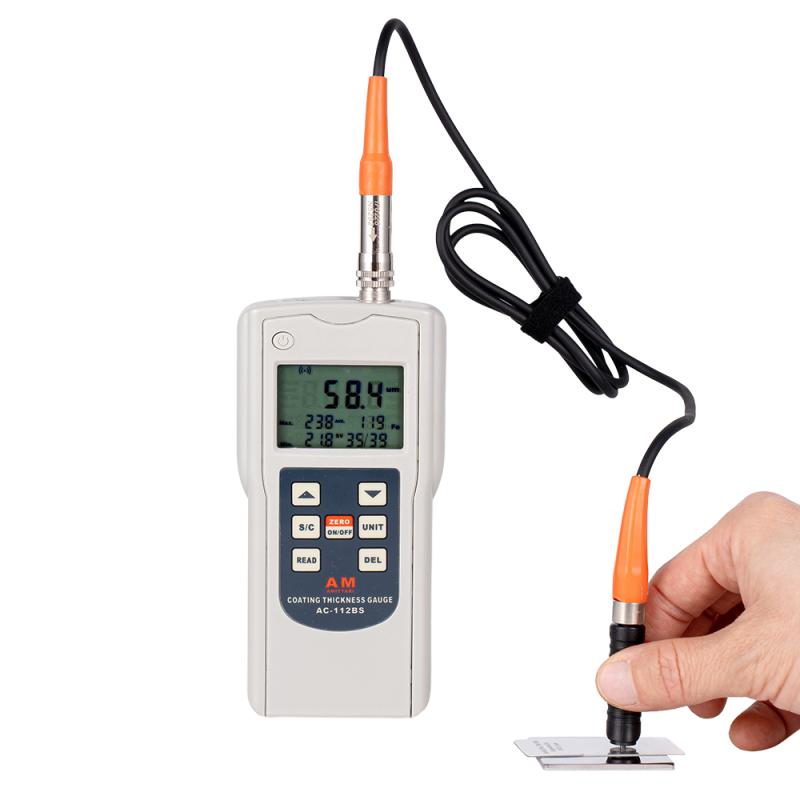

2. Align the Probe to the substrate under test
3. Carry out measurement, there is a buzzer prompt tone during operation
4. Can communicate with PC via USB, RS-232C or Bluetooth to transmit data
5. Manual shutdown or wait for automatic shutdown after use
Notice
• Temperature range 0~ 50 ° C (32~ 122 ° F)
• Operating Humidity should be less than 80% RH
• The thinnest substrate is 0.3mm/12mil
• Minimum convex diameter of 4mm/0.16inch
• Minimum concave radius of 25mm/0.98inch
• Minimum measurement surface diameter of 6mm/0.24inch
• Power supply with 4x1.5V AAA No. 7 battery, pay attention to the undervoltage prompt
