Overview

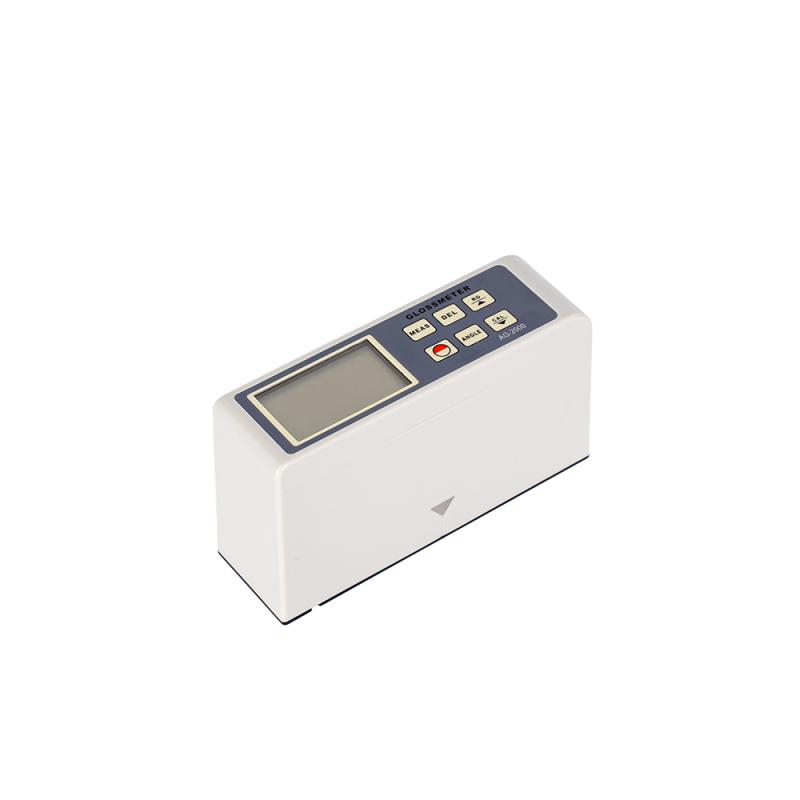

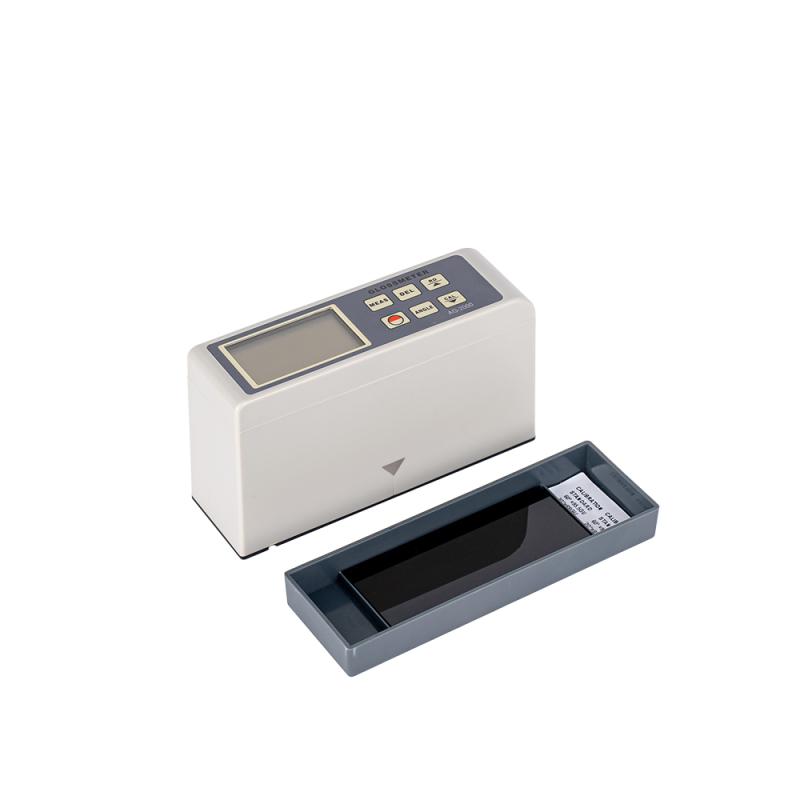

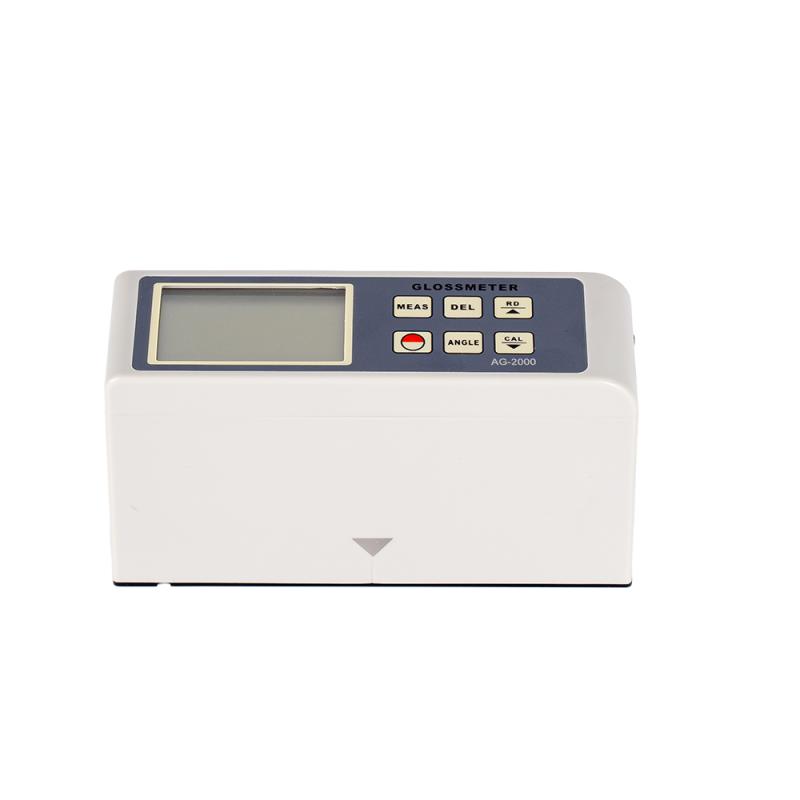

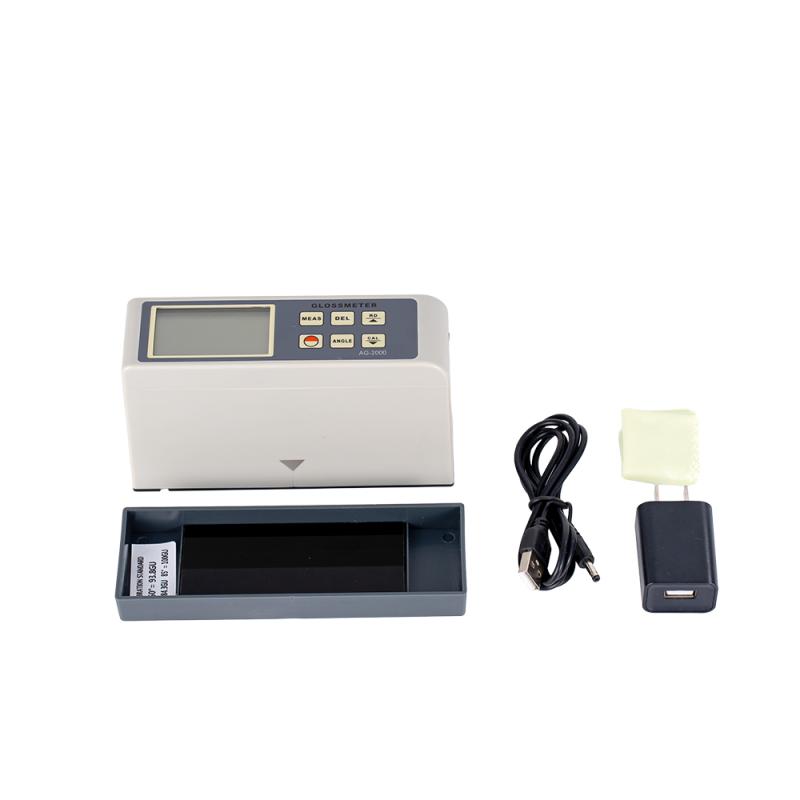

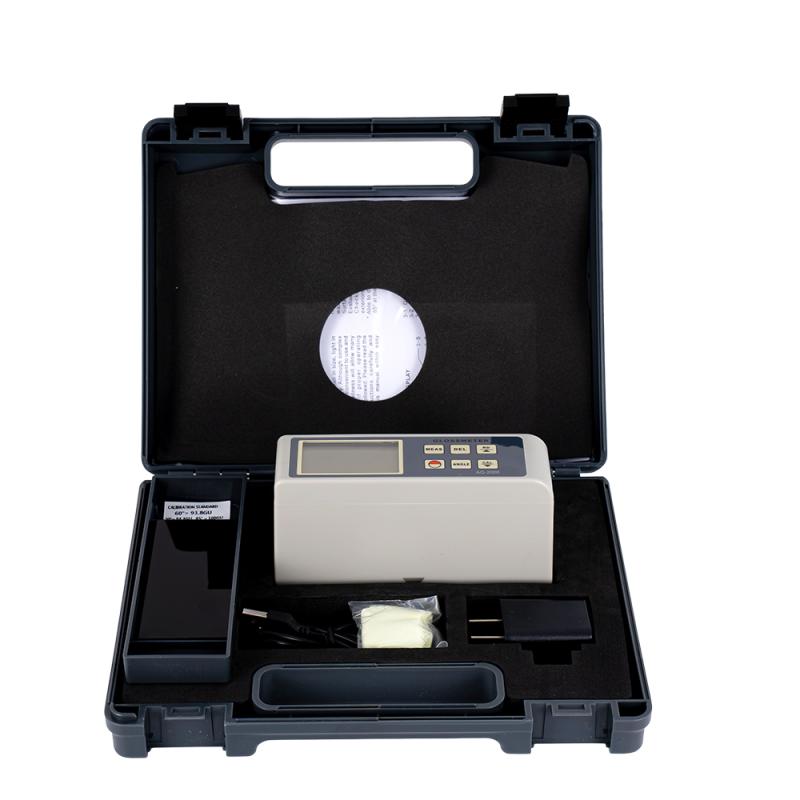

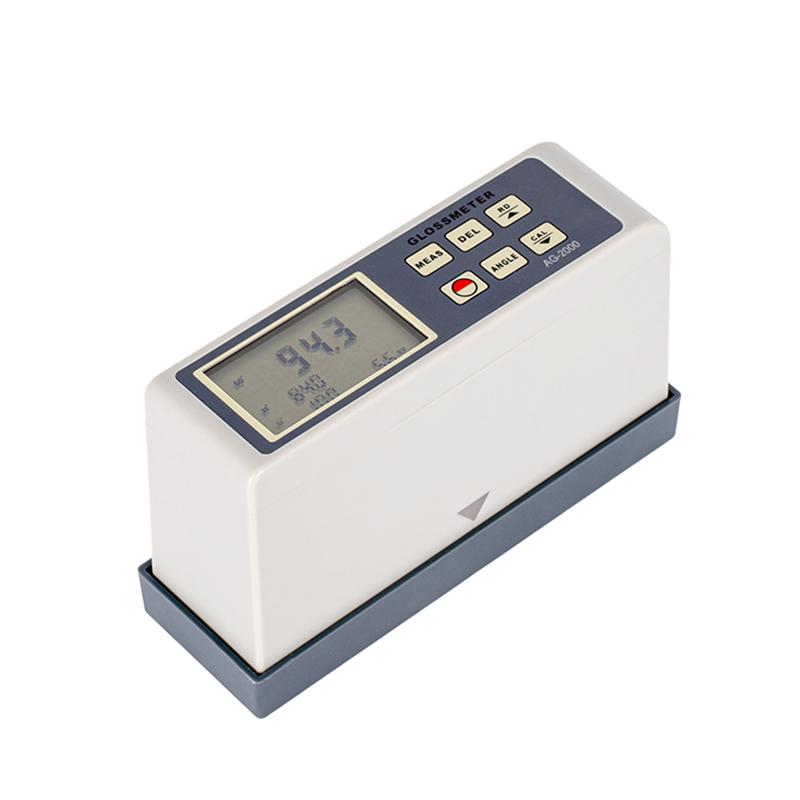

The AMITTARI AG-2000 glossmeter is a Portable measuring instrument for gloss measurement on a wide range of material surfaces. The instrument is lightweight, easy to operate, supports a variety of data transmission methods, and is suitable for quality control in a variety of industrial fields.
Features
1. Adopt USB data cable output and connect to PC.
2. Provide Bluetooth data output selection.
3. Precision construction, strong and durable structure, lightweight appearance, easy to carry.
4. Automatic calibration can be performed by pressing only one key, no manual adjustment is required.
5. Intelligent design, fast measurement, accurate measurement, Repeatability.
56 sets of data can be stored for instant browsing or import into a computer.
7. Built-in high-capacity rechargeable lithium-ion battery, no battery Memory effecy.
8. There is a backlight display, which is convenient to use in a dark environment with dark rays of light.
9. Glossiness of 20 ° angle measurement, 60 ° angle measurement, and 85 ° angle measurement is displayed at the same time.
Principle
Glossmeter calculates the Glossiness value by projecting rays of light onto a material surface and measuring the intensity of the reflected light. It uses three projection angles of 20 °, 60 ° and 85 ° to accommodate different Glossiness ranges of measurement, ensuring data accuracy and Repeatability.
Applications
Gloss measurement on the surface of paints, paints, coatings, inks and other coating materials, Gloss measurement on the surface of Stone, ceramic tiles, profiles and other building decoration materials, Gloss measurement on the surface of paper, bamboo, wood, plastic, film and other surfaces, Gloss measurement on the surface of various other metals and Non-metallic materials
Standards
ASTMD-523、ASTMD1455、ASTM C346、ASTMC584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB8807、JJG 696-2002
Notice
• Ambient Temperature should be used in the range of 0~ 40 ° C.
• The relative humidity should not exceed 85%.
• Ensure that the measurement surface is clean to avoid affecting the measurement results.
• Regularly calibrate instruments to maintain accuracy.
Avoid use in bright light or extreme environments.
