Overview

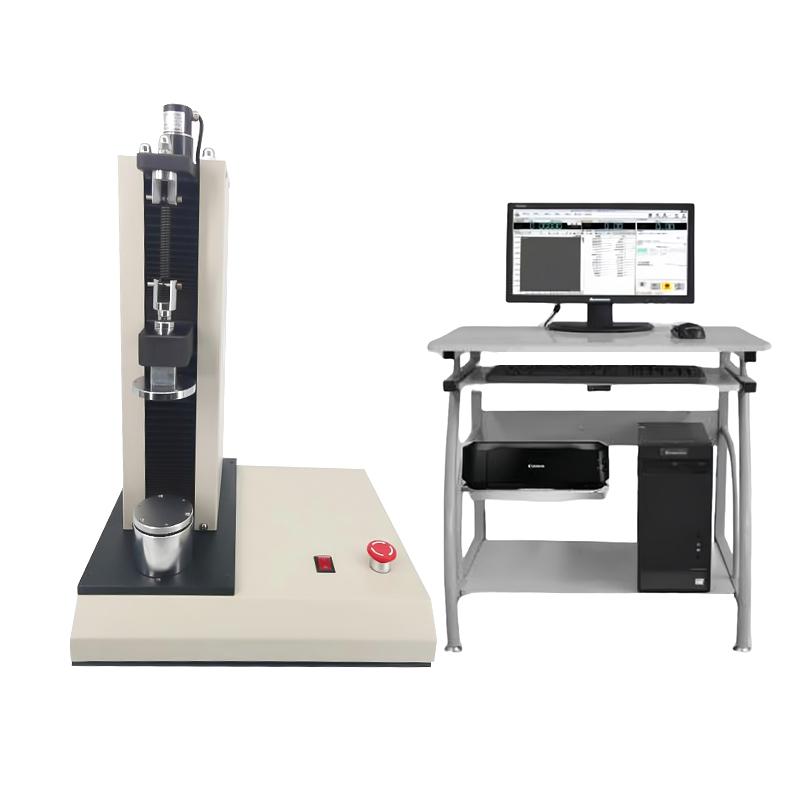

HBO ZTD-200 desktop microcomputer-controlled spring testing machine is a device dedicated to spring performance testing. The machine adopts a fully digital speed control system and stepper motor drive, and the control software with Windows as the Operating interface realizes screen display and automatic operation of test force, displacement, deformation and other parameters. It is mainly used for performance testing of spring deformation, tensile pressure, spring coefficient, etc., and can also test Miscellaneous resilience parts. It meets JB/T7796-2017 standards and international standards. It is suitable for industrial and mining enterprises, technical supervision, scientific research institutes and other departments.
Features
1. High Accuracy, High resolution, High Stability
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Chinese WINDOWS interface software, menu prompts, mouse operation
7. Test data and Linear dispersion dynamic display
8. Test speed automatic transmission
9. Automatic reset of the moving beam after the test is completed
10. Qualification judgment function, automatically judge according to the preset Standard value
11. Automatic unlimited storage of test data and Linear dispersion
12. Data can be queried and exported in word or excel format
13. Customizable format for preparing and printing test reports
14. Comes with memory function, overload protection, emergency shutdown, leakage protection
Principle
The test machine adopts all-digital speed control system and stepper motor as the drive system, and the controller as the core Control system. The real-time display and automatic control of test force, displacement, deformation and other parameters are realized through the software of Windows Operating interface. All operations are completed on the computer through the mouse, and various test modes and automatic functions are supported.
Applications
Spring deformation, tension, spring coefficient testing, resilience test, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Start the test software on the computer with the mouse
2. Set test parameters and modes
3. Start the test, the system automatically controls and displays the data and Linear dispersion
4. Automatic reset of the moving beam after the test is completed
5. View, store, or export test results
6. Prepare and print test reports
Notice
* Power supply voltage AC 220V 50HZ
Pay attention to the use of overload protection and emergency shutdown devices
Regularly check the leakage protection function
* Standard value set according to the preset qualified range
* Linear dispersion and timely storage and backup of test data
