Overview

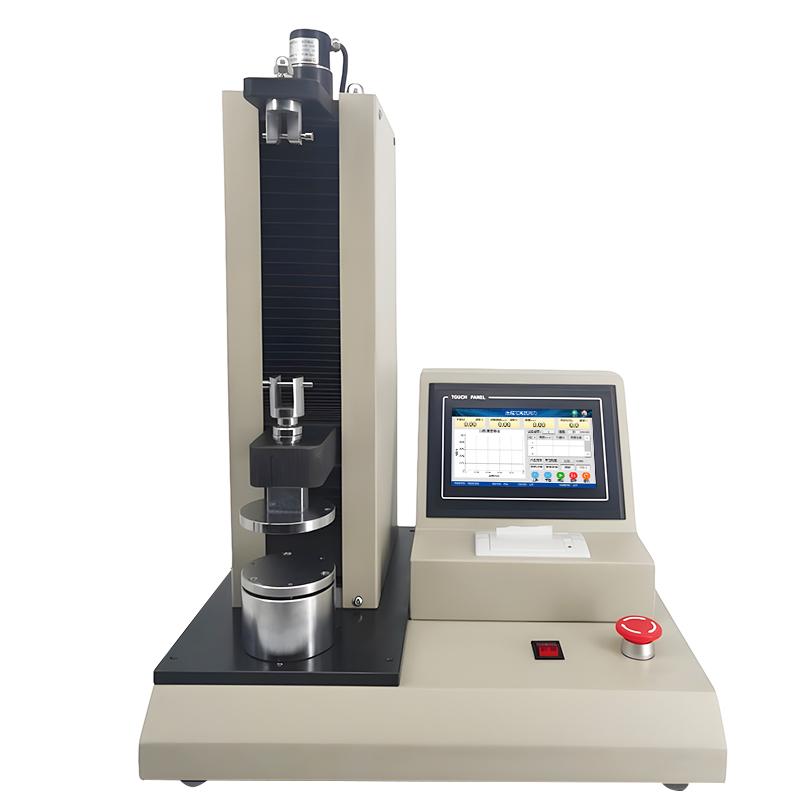

ZT-50 Desktop Electric Spring Testing Machine is a desktop spring special testing equipment of HBO brand. It adopts precision automatic control and data collection system to significantly improve the test accuracy and reduce the operation requirements. It is mainly used for the detection of spring deformation, tensile force, spring coefficient and other performance parameters. It can also test various resilience samples and similar parts. It meets the JB/T7796-2017 standard and supports national standards and ISO, JIS, ASTM, DIN and other international standards. It is suitable for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High resolution, High Stability
2.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
3.6 units of force value: N, kgf, lbf, gf, kN, tf
4.3 displacement units: mm, cm, in
5. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
6. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
7. The test interface directly displays parameters such as force value, displacement, spring free length/height, deformation value, test time, speed, test point stiffness and average stiffness
8. 10 sets of test points can be customized, and the qualification interval judgment of the corresponding test parameters can be set
9. Linear dispersion and tabular display of test data
10. After the test is completed, the data bar is automatically saved, up to 10,000 pieces of data can be saved
11. The machine comes with a micro printer, which can directly print the test results
12. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
The testing machine adopts a precision automatic control and data collection system, which is driven by a stepper motor to achieve accurate measurement of spring deformation, tensile pressure and other parameters. The system automatically performs tests according to the set test mode (such as fixed height force measurement value or fixed force value to measure deformation), and collects and displays data in real time to ensure High Accuracy and High Stability.
Applications
Industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Turn on the power and start the device
2. Select the test mode and set parameters (such as force unit, displacement unit, Graduation, etc.) through the 7-inch Touchscreen
3. Install the spring or sample and adjust the pressure plate
4. Set test points (up to 10 groups) and qualification interval
5. Start testing, observe real-time data and Linear dispersion
6. After the test is completed, the data is automatically saved, and the print result can be selected
7. Use emergency shutdown devices or overload protection functions (if necessary)
Notice
• Power supply voltage is 220V 50HZ to avoid voltage instability
• Check whether the equipment is in good condition before operation, and stop using it immediately if there is any abnormality
• Avoid overloading during testing to prevent damage to equipment
• Use an emergency shutdown device to quickly stop testing in an emergency
• Maintain equipment regularly to ensure accuracy and Stability
• Storage capacity when saving data, up to 10,000 pieces of data
