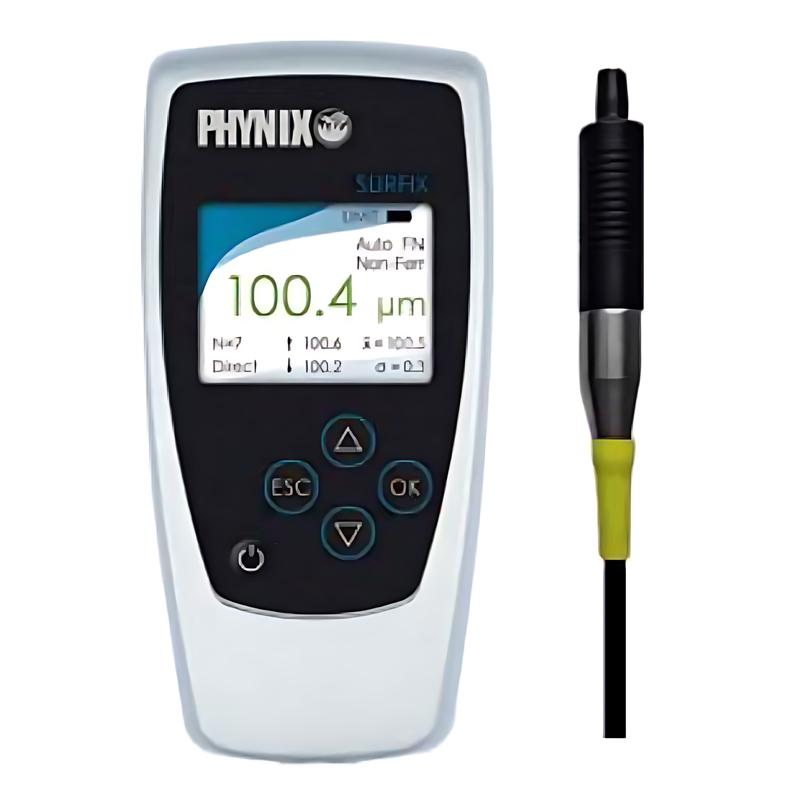

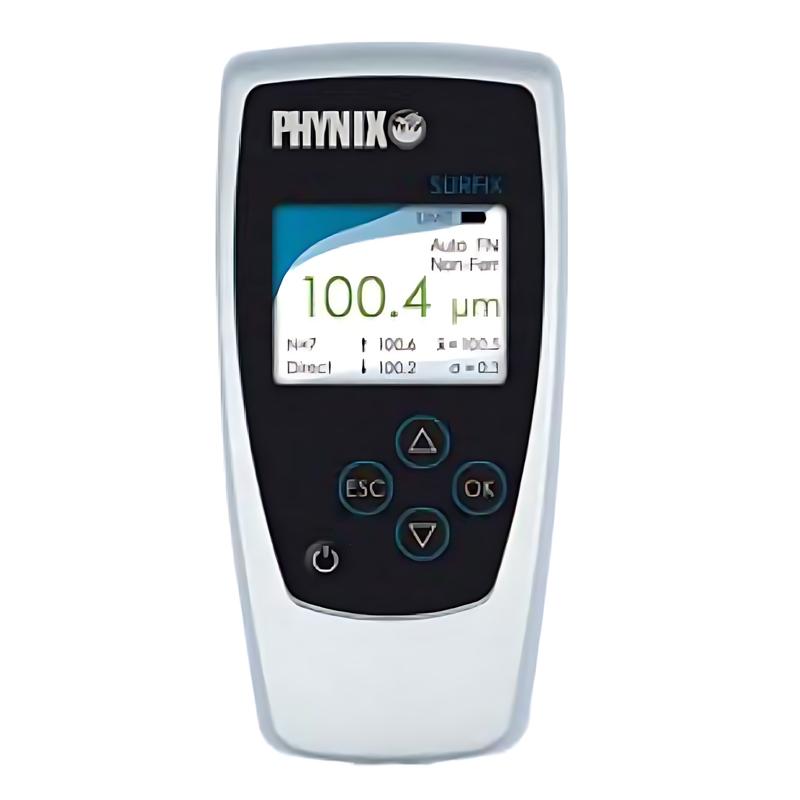

PHYNIX Surfix SX-N0.5A Split Micro Probe Coating thickness Gauge eddy current principle Carbide Probe

Name: PHYNIX Surfix SX-N0.5A Split Micro Probe Coating thickness Gauge eddy current principle Carbide Probe
Brand: PHYNIX
SKU: NB047835
Price: 2114.0 USD
Availability: InStock

$ 2114.00Ex works

Measurement range 0-500μm, accuracy +/- (0.7μm + 1%), support horizontal, rough and curved surface measurement, with automatic identification and statistical functions.

Model

Surfix SX-N0.5A

Get Quote

Category : Coating Thickness Gauge

Brand : PHYNIX

SKU : NB047835

Service :The delivery and service By NBCLab.Com

Overview

The Sofis Surfix SX-N0.5A Split Miniature Probe Coating thickness gauge is a Coating thickness gauge produced in Phoenix, Germany. It uses an external separation Probe and eddy current Measurement principle for testing nonmagnetic metal substrates and has an automatic identification function. All measurement Probes are made of cemented carbide and have a high service life. The front end is designed with a V-shaped groove for measurement cylindrical or curved top coating. It is equipped with a Probe cap for stable measurement plane coating. It is a reliable instrument without abrasion measurement.

Features

1. Small measurement Probe, stable measurement 2. No need to calibrate, can display Measured value, average and other statistical parameters 3. Probes are made of hard alloy, wear-resistant 4. Innovative and humanized measurement technology: open measurement 5. Horizontal, rough and curved surfaces can be measured 6. N type for non-ferrous metal measurement without calibrating measurement 7. Online statistics (n, x, s, min, max) 8. Large contact surface to ensure accurate positioning 9. Audio signal during measurement 10. Switchable μm/mils 11. Manufacturer's factory inspection certificate

Principle

Measurement principle of eddy current, suitable for testing nonmagnetic metal substrate, with automatic identification function.

Applications

Paints workshop, paints and powder coating process, automotive evaluation and automotive repair shop, steel structure, automotive manufacturing and shipbuilding, aluminum oxidation layer, production process, final inspection and quality control, circuit board three-proof paint and other laboratory and field tests

Standards

Factory calibrated certificate

Steps

1. Open the instrument to start measurement 2. Perform measurements on horizontal, rough or curved surfaces 3. The instrument will send an audio signal during measurement 4. Measured values and statistical parameters

Notice

• Suitable for nonconductive layer thickness measurement on non-ferromagnetic metal substrates • Temperature range 0~ 60 ℃ • Minimum headroom height is 85mm • The minimum sample diameter is 3mm • Can be powered by 2xAA dry or rechargeable batteries

Measurement Range
0-500μm
display screen
SX---color screen, backlight
power supply
2xAA dry batteries, rechargeable batteries can also be used.
Battery life
With 1 reading per second, it can operate continuously for up to 24 hours
Dimension
137*66*23mm
weight
223g
Operating temperature
0—60℃
Certificate Type
Factory calibrated certificate
Calibrated mode
Factory calibrated, zero calibrated
Memory
1000 pieces
data transmission
USB2.0
statistical function
n,X,S,min.,max,Kvar,cp,cpk
margin of error
+/-(0.7um+1%)
minimum headroom
85mm
minimum sample diameter
3mm
