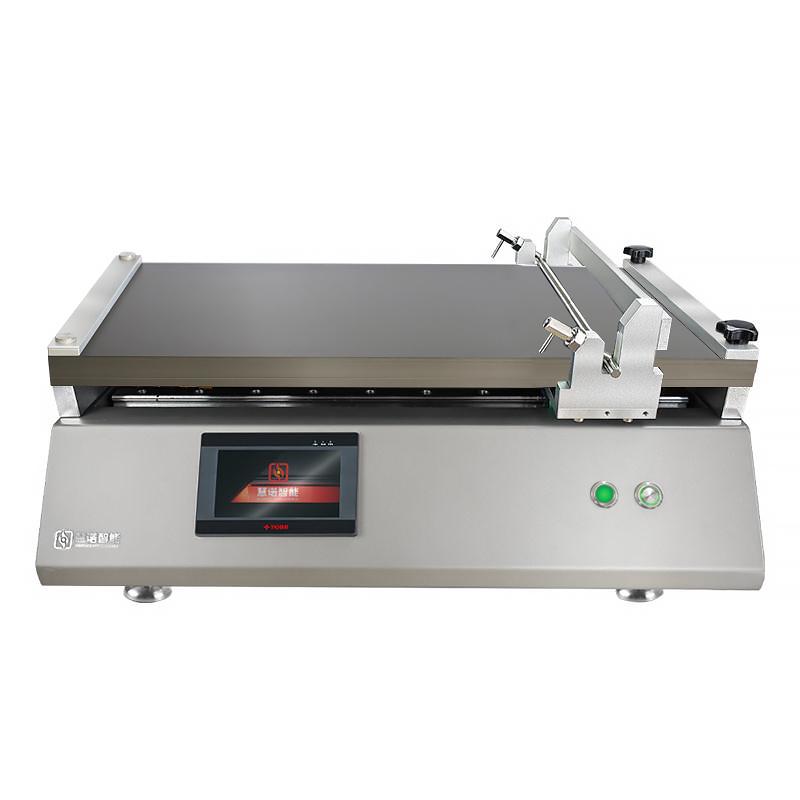

HuiNuo TM1100/01 Automatic Film Applicator bar type with heating High Accuracy Coater

Name: HuiNuo TM1100/01 Automatic Film Applicator bar type with heating High Accuracy Coater
Brand: HuiNuo
SKU: NB047844
Price: 3738.0 USD
Availability: InStock

$ 3738.00Ex works

Adopt bar coating method accuracy of +/- 0.001mm, equipped with heating table Temperature Uniformity +/- 3 ℃, support Spreader speed and length free adjustment, clamshell drawdown blade is easy to clean and improve efficiency.

Model

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB047844

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a bar type Automatic Film Applicator with heating function, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy cleaning, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film.

Features

1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. With heating function 3. High Accuracy Film Applicator, high accuracy of original imported bar film 4. Touchscreen control panel, easy to operate 5. Free adjustment of application length and Spreader speed

Principle

The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.

Applications

Moulding proofing in research institutes of universities, New materials, hot-melt adhesives, glues, Resin and other laboratories

Steps

1. Set Spreader parameters 2. Fixed substrate 3. Start the film program 4. Cleaning equipment after film

coating method
Bar Spreader
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table Size
300*600mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
meyer rod coating accuracy
±0.001mm
Coating Size
300*400mm
display screen
Color LCD Touchscreen
Host power supply
100V~220V/50~60HZ
Power
2000w
Temperature Range
RT +~ 260 ℃ (mica sheet heating)
Temperature Uniformity
±3℃
Dimension
658*438*400mm
Operating language
Chinese (can be customized in English)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
