Overview

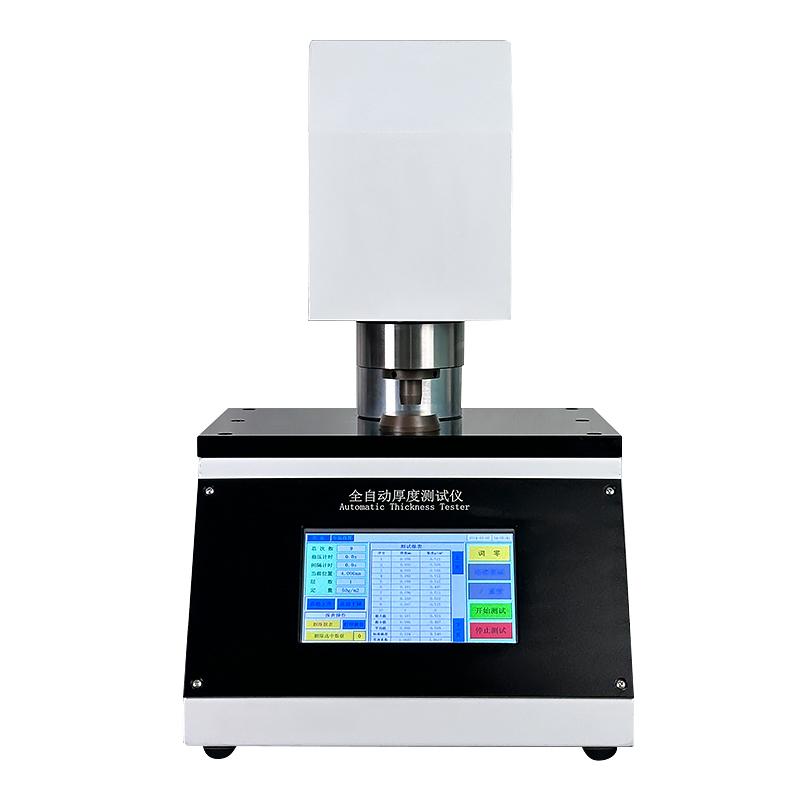

The automatic thickness tester is a new type of testing instrument developed in accordance with national standards. The instrument is a mechatronics product, using modern mechanical design concepts and ergonomic design principles. It is a high Accuracy automatic thickness tester with novel design, convenient use, excellent performance and beautiful appearance. The automatic Paper thickness tester adopts High Accuracy Displacement Sensor. The instrument has the functions of testing, conversion, display, memory, printing and data processing. It is a reliable test equipment for industries and departments such as papermaking, Encasement, thin film scientific research and product mass supervision and inspection.
Features
1. One-click test function;
2.7-Inch Touchscreen Operating system, can switch between Chinese and English;
3. Automatic processing of measurement data;
4. Mechatronics Modern Design Concept, Compact Structure, Appearance, Easy Maintenance;
5. Can be connected to a computer for operation, with professional computer software, can operate the instrument and store the test results on the computer, and can print A4 paper size test reports (optional) through a computer connected to a color printer.
Principle
The automatic thickness tester uses High Accuracy Displacement Sensor for measurement, and realizes testing, conversion, display, memory, printing and data processing functions through mechatronics design.
Applications
Papermaking, Encasement, Film research, Product mass supervision and inspection
Standards
QB/T 1035、QB/T 451.3、QB/T 1055、ISO 534、ISO 438、ISO 3034
Steps
1. Connect the power supply;
2. Turn on the instrument;
3. Use Touchscreen to set parameters;
4. Place samples;
5. One-click start test;
6. View and process data.
7. Optional connection of computer and printer output report.
Notice
- Power supply voltage AC220V +/- 10% 2A 50Hz;
- Measurement range not exceeding 4mm;
The contact pressure should be maintained at (100 +/- 10) kPa.
- The adjustable range of falling speed is ≤ 0.5-10 mm/s;
- Maintain instruments regularly to ensure accuracy;
- Check measurement parallelism ≤ 0.002mm before use;
- The contact area of the paper is (200 +/- 5) mm ²;
- weight about 25kg, pay attention to safety when handling.
