Overview

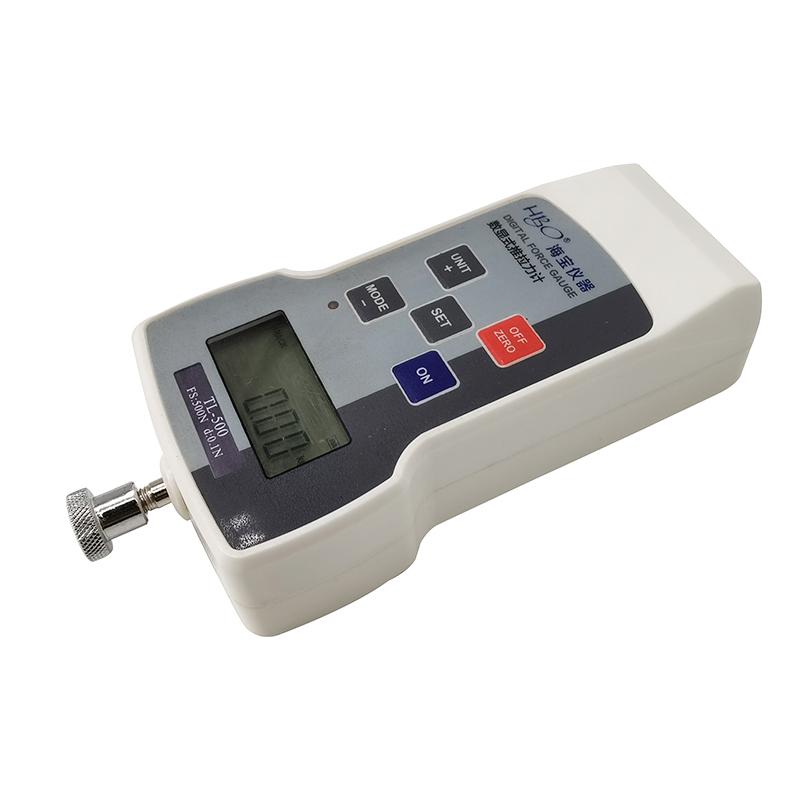

The TL-30 Digital Force Gauge is a general-purpose Portable push-pull load testing instrument launched by HBO, which is suitable for push-pull load testing, plug-in force testing and failure testing of various products. It can be combined with various machines and fixtures to form a small testing machine for different purposes.
Features
1. Light weight, small size, wider application scenarios
2. LCD display, white backlight, convenient reading
3.5 Units: N, KN, Kgf, lbf, tf are converted to each other
4. Real-time tracking mode, peak hold mode can be switched freely
5. Free setting of upper and lower limits, automatic sound and light alarm
6. Peak hold time can be set (can be set from 0 to 99 seconds)
7. Gravity acceleration value can be set
8. Free setting of automatic shutdown time without operation (0-99 minutes)

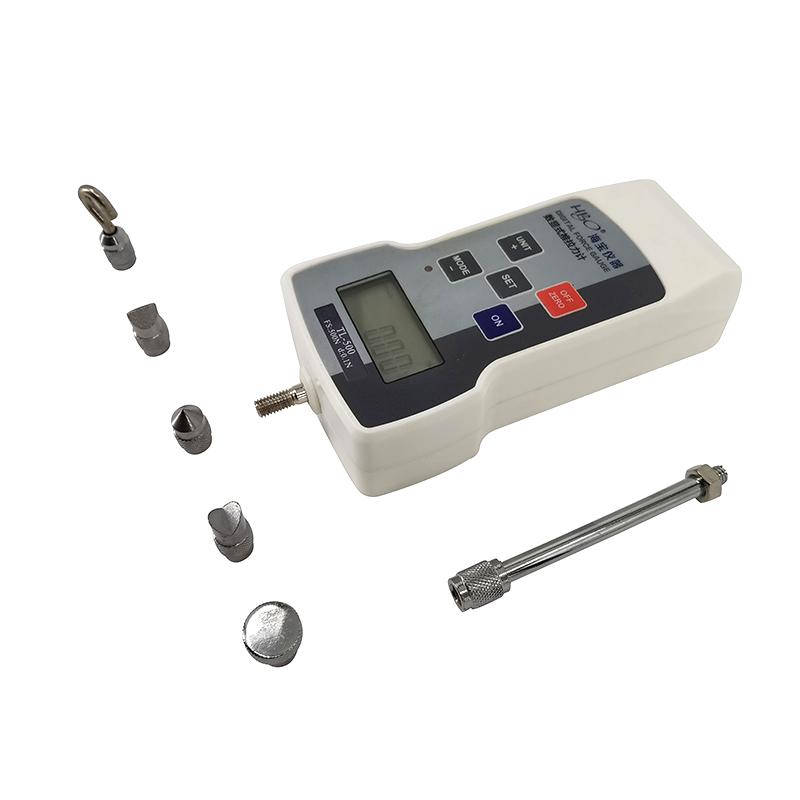

9. Feel free to combine various testing devices to make the test more accurate
10. Special Instrument Toolbox, Contains Foam Shockproof Encasement, Easy to Transport, Save and Carry
11. Lithium battery powered, no need to replace the battery
12. Smart Charging, Safe Charging, Extend Battery life
Principle
TL-30 Digital Display Force Gauge detects the push-pull load through the built-in Sensor, converts the mechanical signal into an electrical signal, and displays the measurement result through the LCD screen after processing. It supports two Operating Modes: real-time tracking and peak holding.
Applications
Pushing and pulling force load test, insertion force test, failure test
Standards
Precision: 0.5, indication relative error ：≤ +/- 0.5%
Steps
1. Turn on the power switch
2. Select the desired Measurement unit (N, KN, Kgf, lbf, tf)
3. Set Operating Mode (Real Time Tracking or Peak Hold)
4. Set the upper and lower limit qualification range
5. Set peak hold time (0-99 seconds)
6. Set the gravitational acceleration value
7. Set the automatic shutdown time (0-99 minutes)
8. Connect the testing device and fixture
9. Start the test and observe the LCD display results
10. Turn off the power after the test is completed
Notice
• Operating temperature range: 0 ℃ -40 ℃
• Storage Temperature range: -20~ 70 ℃
• relative humidity range: 15% -80%
• Environmental requirements: no vibration and corrosion around
• Charging time: about 4 hours
• Battery life: about 25 hours (continuous use)
• Use special charger: AC Input: 220V/50HZ, DC Output: 5V/1A
• Pay attention to battery maintenance and use smart charging to extend Battery life

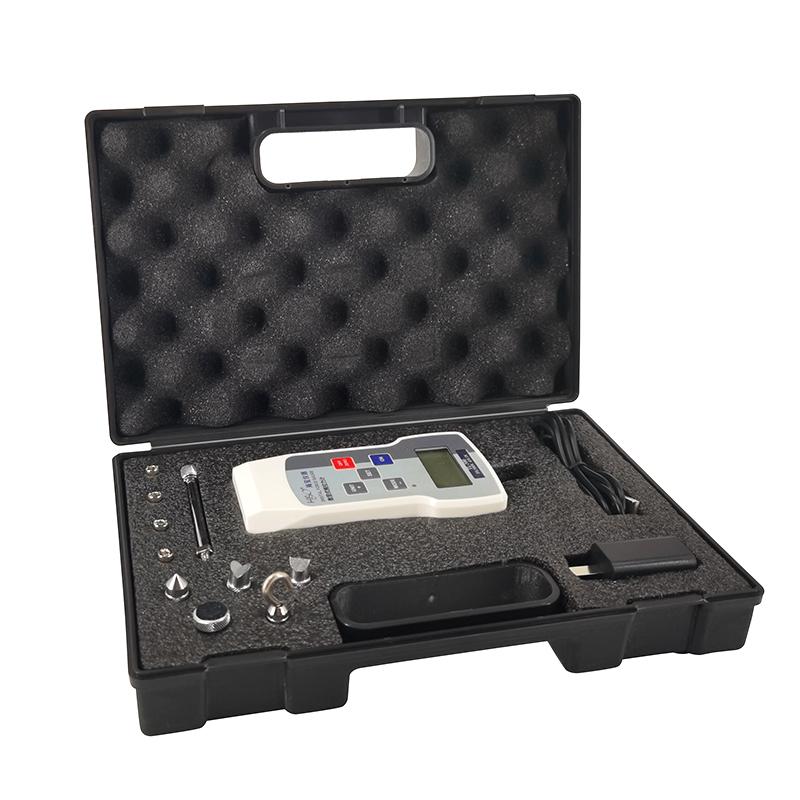

• Special instrument toolbox for transportation and storage, including foam shock-proof Encasement
