Overview

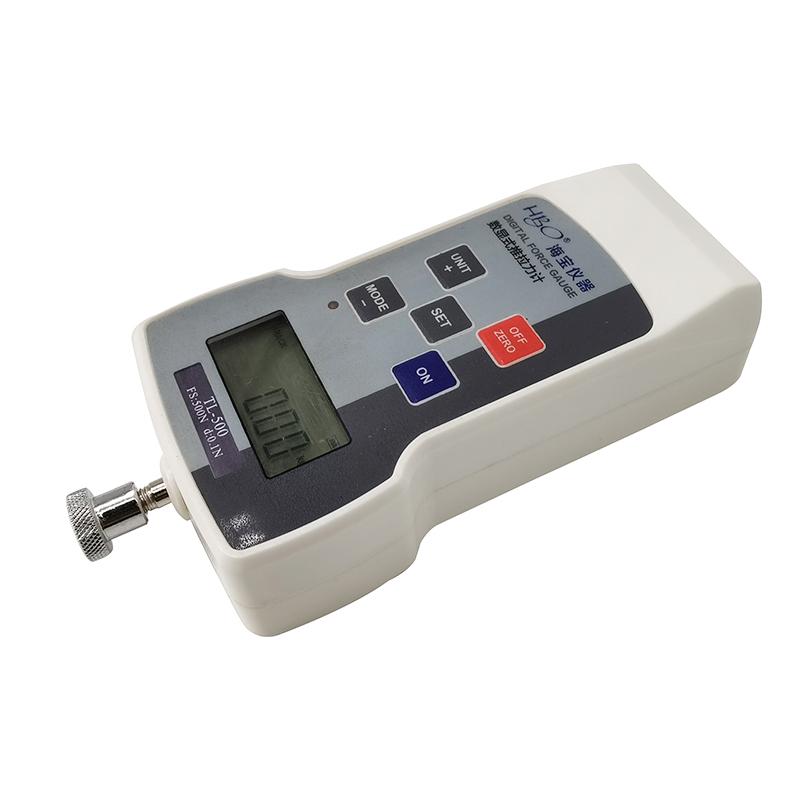

The TL-50 digital display Force Gauge is a general-purpose Portable push-pull load testing instrument launched by HBO, which is suitable for push-pull load testing, plug-in force testing, failure testing, etc. of various products. It can be combined with various machines and fixtures to form a small testing machine for different purposes.
Features
1. Light weight, small size, wider application scenarios
2. LCD display, white backlight, convenient reading
3.5 Units: N, KN, Kgf, lbf, tf are converted to each other
4. Real-time tracking mode, peak hold mode can be switched freely
5. Free setting of upper and lower limits, automatic sound and light alarm
6. Peak hold time can be set (can be set from 0 to 99 seconds)
7. Gravity acceleration value can be set
8. Free setting of automatic shutdown time without operation (0-99 minutes)
9. Feel free to combine various testing devices to make the test more accurate
10. Special Instrument Toolbox, Contains Foam Shockproof Encasement, Easy to Transport, Save and Carry
11. Lithium battery powered, no need to replace the battery
12. Smart Charging, Safe Charging, Extend Battery life
Principle
The Force Gauge detects push-pull loads through the built-in Sensor structure, converts mechanical signals into electrical signals, and displays measurement results on the LCD screen after processing. It supports real-time tracking and peak holding two Operating Modes.
Applications
Pushing and pulling force load test, insertion force test, failure test
Standards
Precision: 0.5, indication relative error ：≤ +/- 0.5%
Steps
1. Combine the required machine and fixture to form a test system
2. Select Measurement unit (N, KN, Kgf, lbf, tf)
3. Set Operating Mode (Real Time Tracking or Peak Hold)
4. Set the upper and lower limit qualification interval, peak holding time, gravitational acceleration value or automatic shutdown time as needed
5. Perform the test operation, the instrument automatically displays the results and can sound and light alarms when the set range is exceeded
6. Charge in time after use to ensure next use
Notice
• The working environment needs no vibration and corrosion medium around
• Operating temperature is 0 ℃ -40 ℃, storage temperature is -20~ 70 ℃
• relative humidity should be kept at 15% -80%
• Charging time is about 4 hours, using a special charger (AC input 220V/50HZ, DC output 5V/1A)
• Continuous use battery life is about 25 hours, pay attention to charging in time
• Special Toolbox for Transportation and Storage, Containing Foam Shockproof Encasement
