Overview

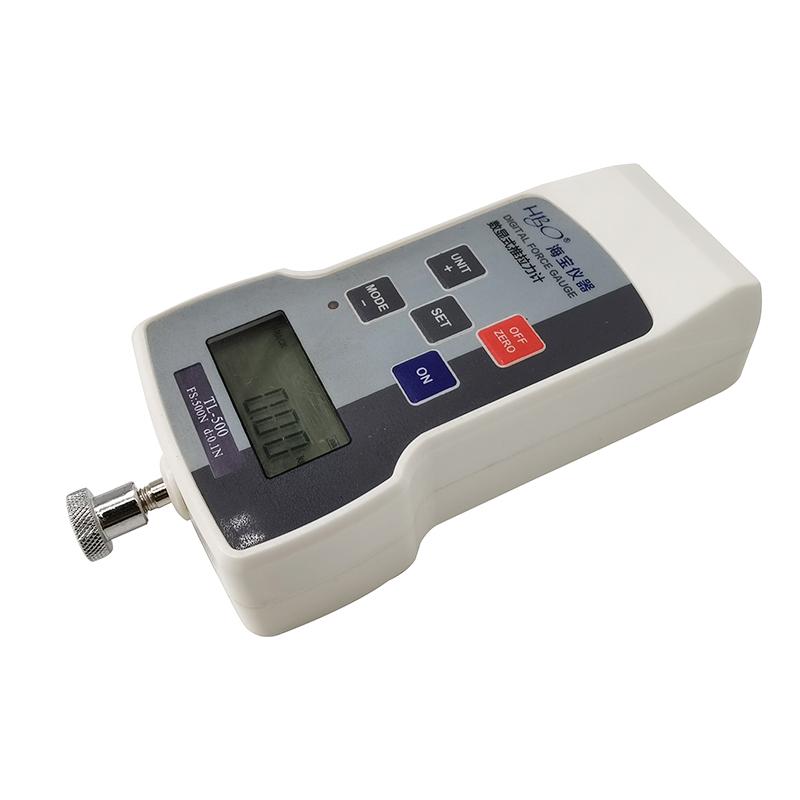

TL series digital display Force Gauge is a general-purpose Portable push-pull load testing instrument, suitable for push-pull load testing, plug-in force testing, failure testing, etc. of various products, and can be combined with various machines and fixtures to form small testing machines for different purposes.
Features
1. Light weight, small size, wider application scenarios
2. LCD display, white backlight, convenient reading
3.5 Units: N, KN, Kgf, lbf, tf are converted to each other
4. Real-time tracking mode, peak hold mode can be switched freely
5. Free setting of upper and lower limits, automatic sound and light alarm
6. Peak hold time can be set (can be set from 0 to 99 seconds)
7. Gravity acceleration value can be set
8. Free setting of automatic shutdown time without operation (0-99 minutes)
9. Feel free to combine various testing devices to make the test more accurate
10. Special Instrument Toolbox, Contains Foam Shockproof Encasement, Easy to Transport, Save and Carry
11. Lithium battery powered, no need to replace the battery
12. Smart Charging, Safe Charging, Extend Battery life
Principle
The Force Gauge detects push-pull loads through a built-in Sensor, converts the signal into a digital display, supports a variety of unit conversions and mode switches, and combines machine and fixture for accurate testing.
Applications
Pushing and pulling force load test, insertion force test, failure test
Standards
Precision: 0.5, indication relative error ：≤ +/- 0.5%
Steps
1. Connect the testing device and fixture
2. Turn on the power and select the desired unit
3. Set upper and lower qualifying intervals and peak retention times
4. Select real-time tracking or peak hold mode
5. Perform a push-pull test
6. Observe the LCD screen reading and pay attention to the sound and light alarm
7. Automatic shutdown or manual shutdown after the test is completed
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature: 0 ℃ -40 ℃, storage temperature: -20~ 70 ℃
• Keep the relative humidity at 15% -80%
• Charge with a special charger, Charging time is about 4 hours
• Avoid over-discharge to prolong Battery life
• Use a special toolbox for shock protection during transportation and storage
