Overview

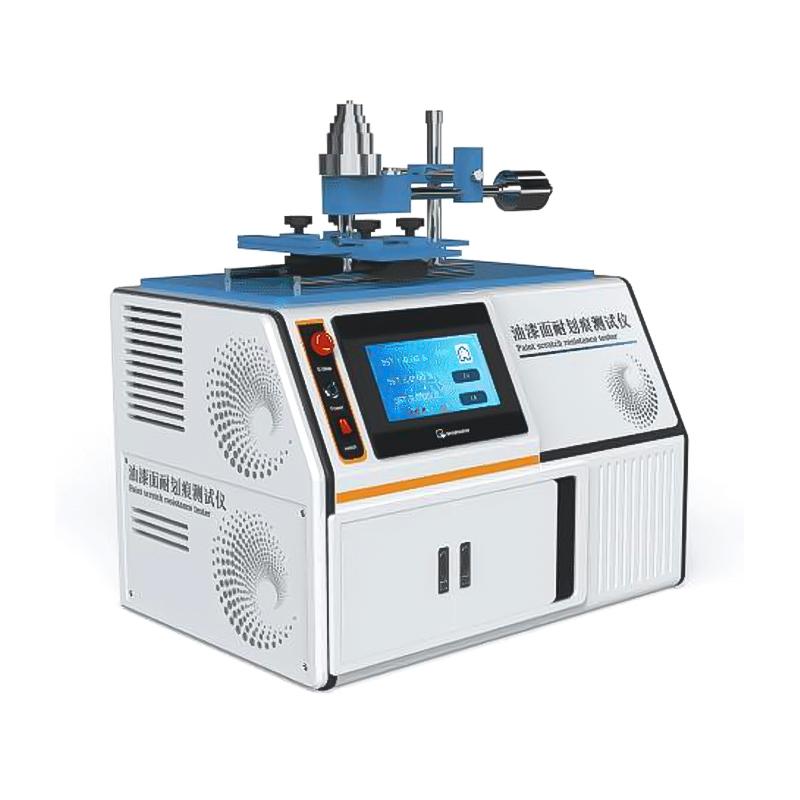

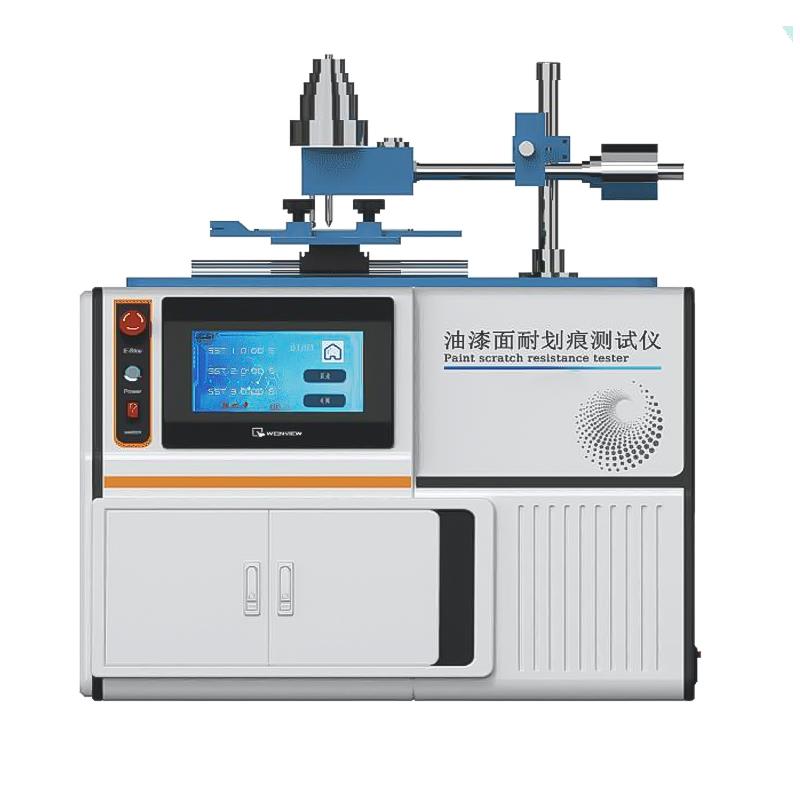

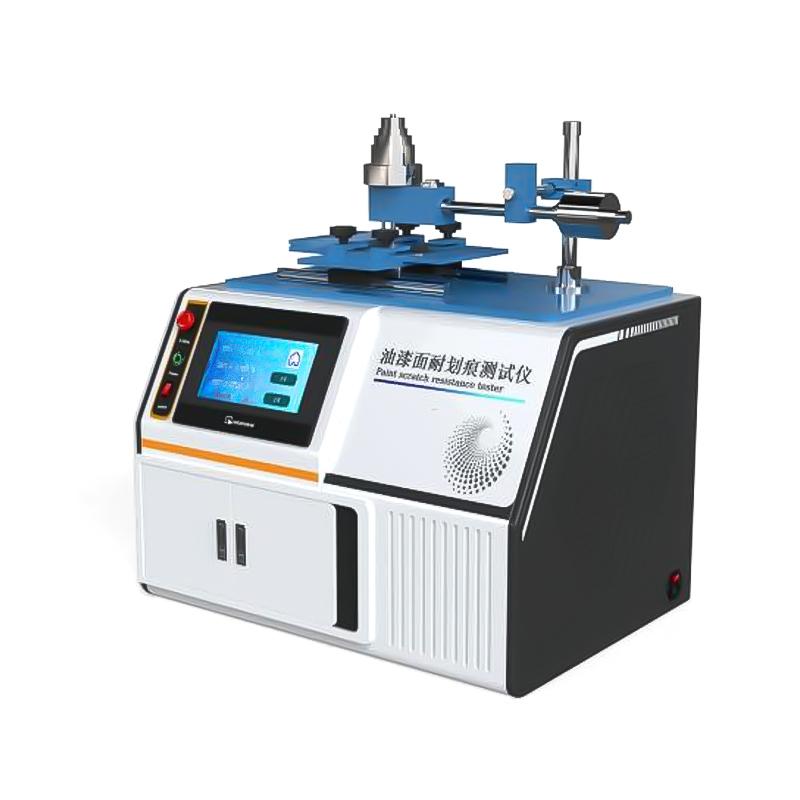

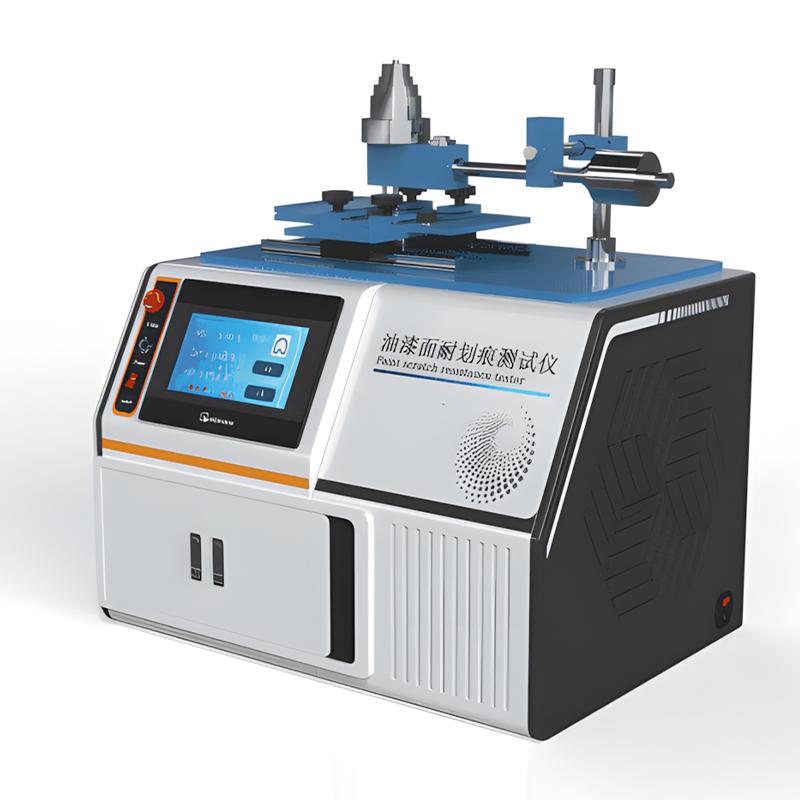

HUITAO HT-783 paints surface resistance Scratching Tester is designed to evaluate the scratch performance of coating materials, suitable for automotive, furniture and construction. It tests the performance of Hardness, Abrasion Resistance and coating adhesion by applying scratches to the coating surface to ensure the durability of the product in practical applications. The tester has a high technical level and strict quality control to ensure the accuracy and Reliability of the test results.
Features
1.Adjustable scratch traverse speed 0-25mm/s
2. Power supply voltage 220V/50Hz
3. Control system with PLC + Touchscreen
4. Operating interface is color 7-inch Touchscreen, support Chinese and English switching
5. The drive mode is stepper motor drive
6. Limited Travel 0-85mm, optional Miscellaneous Travel free customization
7. Test times 0-9999 times can be preset
8. Configure scratch contact automatic stop function (Electrode device)
9. Contact limit angle 18 degrees
10. Contact spherical transition size R6
11. Adjustable scratch pitch 0-50mm
12. Test size approximately 150 * 100mm range
13. Work surface can be 360 ° swirl/spin
14. Standard scratch pressure 10N +/- 0.5N, optional 20N weight and 30N +/- 0.5N scratch pressure
15. Scratch needle R0.25 +/- 0.02mm, optional Miscellaneous specification
Principle
The device consists of a scratch head, a sample stage and a moving system. The scratch head uses a diamond tip or a carbide blade to scratch. The sample stage can move horizontally and vertically, and the moving system controls the movement trajectory of the scratch head.
Applications
Automobiles, furniture, construction
Standards
ISO 1518、BS 3900、ASTM D 5178、ASTM D 2197
Steps
1. Prepare the sample, the size is about 150 * 100mm
2. Place the sample on the work surface
3. Set scratch parameters (speed, spacing, pressure, number of times, etc.) through Touchscreen
4. Start the test, the device automatically performs scratch operation
5. The device automatically stops after the test is completed
6. Evaluate coating scratch resistance performance
Notice
• Power supply voltage 220V/50Hz
• The scratch pressure needs to be selected according to the standard requirements (standard 10N or optional 30N)
• Scratch needle specifications should be selected according to test requirements
• Make sure the Sample size is within the allowable range before testing
• Pay attention to whether the automatic stop function of the device is normal during operation
• Regularly check for scratch abrasion
