Overview

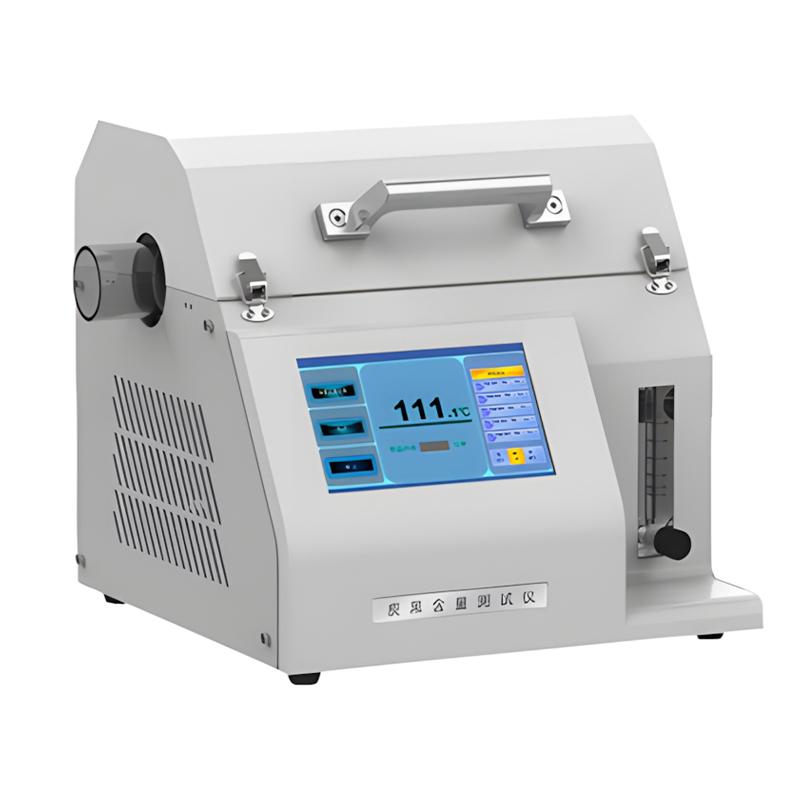

Dingsheng HC3500 carbon black content tester is suitable for the determination of carbon black content in polyethylene (PE), polypropylene (PP) and polybutene plastics. The instrument obtains carbon black content through weight analysis after high temperature analysis of the sample under nitrogen protection. It has the advantages of convenient use, simple operation, accurate measurement, high accuracy and Degree of automation.
Features
1. The open-lid furnace structure is adopted, which is convenient for placing samples and has better heat dissipation effect.
2. The furnace adopts super long heating unit, which can test 4 groups of samples at the same time, which greatly improves the test efficiency.
3. The software has its own calculation function, which can automatically calculate the carbon black content and ash content with one click, which is very convenient and fast.
4. PID precision temperature control, high temperature control accuracy, Temperature range, furnace Temperature uniformity.
5.7 inch LCD Touchscreen display, can start with one key operation, set thermostatic time, high thermostatic accuracy.
6. Intelligent programmable control, multi-component heating program can be set.
Principle
The carbon black content test is obtained by the weight analysis of the sample under nitrogen protection after high temperature analysis.
Applications
Determination of carbon black content in polyethylene (PE), polypropylene (PP) and polybutene plastics
Standards
GB/T 2951.41 - 2 008 "General Test Methods for Cable and Optical Cable Insulation and Sheath Materials", GB/T3515-2005 "Determination of Carbon Content in Rubber, Pyrolysis Method", GB/T13021-1991 "Measurement of Carbon Black Content in Polyethylene (PE) Pipes and Fittings (Thermal Weight Loss Method) ", GBT 13663.2-2018 Polyethylene (PE) (PE) Pipeline Systems for Water Supply, Part 2: Pipes, YDT 837.3-1996 "Copper Core Polyolefin Insulated Aluminum-Plastic Comprehensive Sheath Test Method for Local Communication Cables, Part 3, Mechanical Physical Performance Test Method", ISO 6964, GB/T 13021, IEC 60811-4-1, GB/T 2951.41, JTG E50 T1165
Steps
Step 1 Place samples
2. Set thermostatic time and heating program
3. One-click start test
4. Software automatically calculates carbon black content and ash content
Notice
The test should be carried out under nitrogen protection
• Pay attention to the high temperature of the furnace body to avoid burns
• Set test parameters according to standard requirements
• Regularly check the working status of the instrument
