Overview

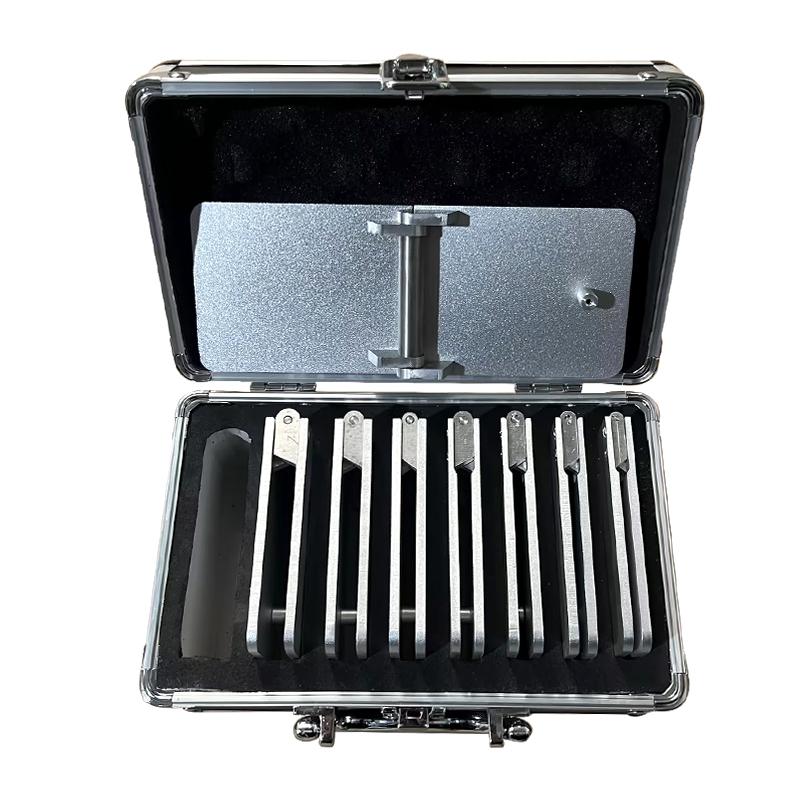

QTY-10A paint film bending tester is a SHIBO brand product, designed and finalized according to the requirements of GB6742 paint film bending test (cylindrical mandrel). The tester adopts the form of hinge connection bending, and is equipped with eight stainless steel cylindrical mandrel with different diameters of 2, 3, 4, 5, 6, 8, 10, and 12mm.
Features
Equipped with eight different diameter cylindrical mandrel (2-12mm)
2. Adopt stainless steel bending shaft
3. Hinge connection bending form
4. Compact surface size: 200 × 58 × 14mm
Principle
Paint film samples were bent tested by cylindrical mandrel with different diameters, and the bending operation was realized by hinge connection to evaluate the performance of the paint film during bending.
Applications
Paints Production, Coatings Testing
Steps
1. Choose the right diameter cylindrical mandrel
2. Place the paint film sample on the tester
3. Bending operation by hinge connection
4. Observe and record the state of the paint film after bending
Notice
• Confirm that the diameter of the cylindrical mandrel meets the test requirements before use
• Ensure that the paint film sample is placed evenly
• Uniform force should be applied during bending operation
• Clean and maintain equipment in time after the test
