Overview

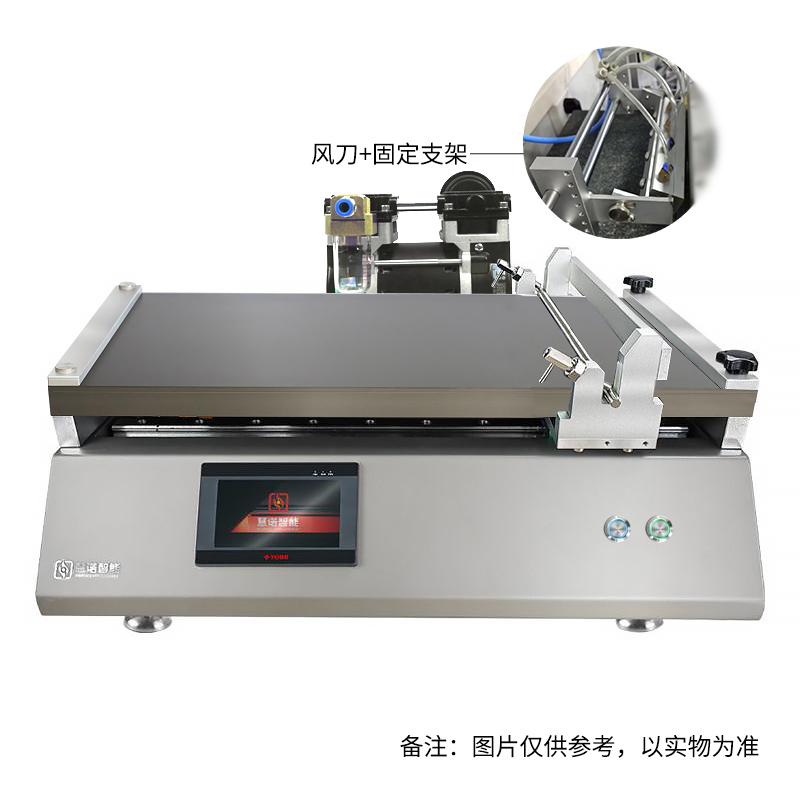

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, which is easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in the laboratory.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Moulding proofing, Coatings, inks, paints, Stock, Lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters through Touchscreen
3. Fix the substrate to the coating table
4. Start Film Applicator for Auto Spreader
5. Remove the sample after completing the Spreader
Notice
• Make sure the power supply of the equipment is stable before operation
• Spreader parameters need to be adjusted according to sample characteristics
• Regularly clean Spreader heads and countertops
• Turn off the power in time after use
