Overview

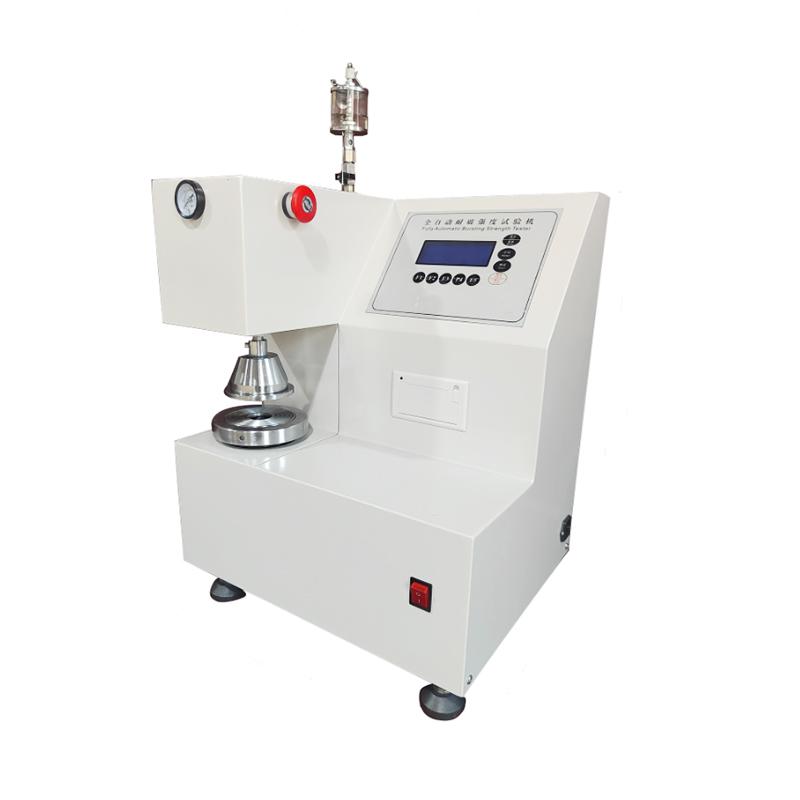

BaidaJUSHI LY-8502 Automatic Burst Strength Tester meets the relevant standards, uses pneumatic clamping samples and liquid crystal display, and is suitable for the determination of Burst Strength of Cardboard, Corrugated Board and Miscellaneous Sheet.
Features
1. After the Cardboard is crushed, it will automatically stop and return to the original position
2. Fully automatic one-click operation
3. Can store 50 sets of data simultaneously
4. Equipped with micro-printing function, can print test results
5. Equipped with an emergency stop button to improve operation safety
6. Equipped with an air pressure gauge to monitor pressure at any time
7, high definition LCD display
8, the use of silicone oil instead of traditional glycerin + water, the machine is not easy to rusting, prolong the service life
Principle
The testing machine by pneumatic clamping the sample, using a pressure converter for induction, high voltage oil pressure speed 170 +/- 10ml/min to apply pressure to the sample, when the Cardboard crushed automatically stop and record Burst Strength value.
Applications
Cardboard, Corrugated Board, Sheet
Standards
ISO 2759、GB/T 1539、QB/T 1057
Steps
1. Prepare the sample and place it in the clamping device
2. Start the test with one-click operation
3. The equipment automatically applies pressure until the sample collapses
4. Automatic shutdown and recording of data
5. Test results can be printed out through miniature printing
Notice
• Make sure the power supply is 1, AC220V before use
• Regularly check the silicone oil level and replenish it in time
• Pay attention to the position of the emergency stop button during operation for use in emergency situations
• Keep the clamp ring clean to avoid affecting Test accuracy
• Regularly use correctors to calibrate equipment
• Device weight about 50KG, be careful when handling
