Overview

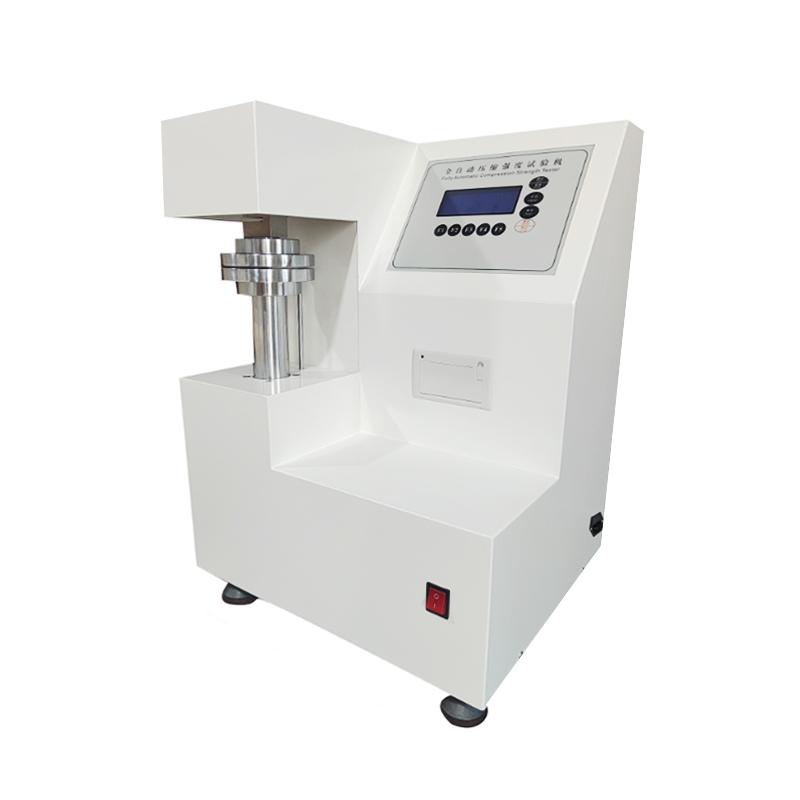

BaidaJUSHI LY-8503 Automatic Compressive Strength Tester is a smart Cardboard Edge Crush Test Tester, also known as Computer Measurement and Control Compression Tester, Cardboard Compression Tester, Electronic Compression Tester, Side Pressure Tester, Ring Pressure Tester. It is the basic instrument for Cardboard/paper compressire strength performance testing (ie paper Encasement testing instrument), equipped with various fixture Accessories to test the Ring Crush Test of base paper, Cardboard Flat Crush Test, Edge Crush Test, adhesive strength and other tests, so that paper manufacturers can control production costs and improve product mass. Its performance parameters and technical indicators comply with relevant national standards.
Features
1. The system automatically calculates Ring Crush Test and Edge Crush Test, without the need for users to calculate manually, reducing workload and errors;
2. Comes with Encasement stacking test function, can directly set the force and time, and automatically stop after the test is completed;
3. After the test is completed, there is an automatic return function, which automatically judges the crushing force and automatically saves the test data;
4. Three adjustable speeds, full Chinese LCD display Operating interface, a variety of units to choose from.
Principle
The testing machine automatically measures and calculates the compressire strength of Cardboard or paper by applying compressive force to different fixture Accessories. During the test, the system controls the upper and lower pressure plates to move at a set speed, applies pressure until the sample collapses, and automatically records the maximum force value and saves the data.
Applications
Cardboard Ring Crush Test, Corrugated Board Edge Crush Test, Corrugated Board adhesive strength test, Corrugated Board Flat Crush Test, Base Paper Laboratory Compressive Strength and Compressive Strength
Standards
GB/T 2679.8-1995、GB/T 6546-1998、GB/T 6548-1998、GB/T 2679.6-1996、GB/T 22874
Steps
1. Equipped with corresponding auxiliary equipment (e.g. ring pressure test center plate, side pressure sample Sampler, etc.) to conduct the required tests;
2. Set test parameters, such as force, time, and speed.
3. Start the test, and the system automatically applies pressure.
4. After the test is completed, it will automatically stop, return, and save the data.
Notice
• Make sure the power supply is AC220V +/- 10% before use;
• Select the appropriate fixture Accessories according to the test requirements;
• Unit switching and speed selection when setting parameters;
• Avoid human interference during testing to ensure data accuracy.
• Regularly check the parallelism of the upper and lower pressure plates to keep the equipment clean.
