Overview

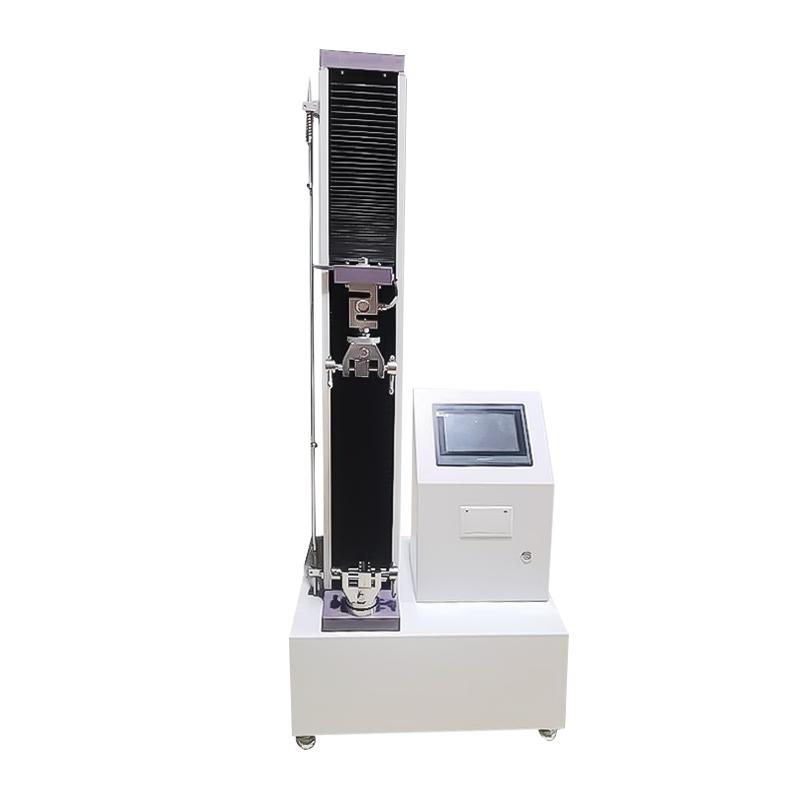

BaidaJUSHI LY-7012C 600KG Single Column Universal Testing Machine is a Universal Testing Machine for static load, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties of various materials. The equipment is suitable for physical and Mechanical Property Testing of Plastic Sheet, Tube, Profile, Plastic film, Rubber, Wire and cable, Steel, Glass Fiber Dimension and other materials, and is widely used in material development, physical property testing, teaching research and quality control.
Features
1. High Accuracy Force Value measurement, Precision up to +/- 0.01N, Resolution 1/200000
2. Test speed, 0~ 500mm/min adjustable
3. Multiple Unit Display, Support Force and Stress Unit switching
4. Safe shutdown mode, including upper and lower limit safety settings and sample breakpoint sensing
5. The result output is convenient and equipped with a micro printer
6. Power system adopts speed regulating motor, stable operation
7. Optional conventional tensile fixture to enhance applicability
Principle
Single-column Universal Testing Machine is driven by a speed-regulating motor to apply tensile, compression and other forces to the sample, and uses High Accuracy Sensor to measure the change of force value. The device automatically controls the Test speed according to the set parameters, and automatically stops when the safety limit is reached or the specimen is broken. The test results are output through a micro-printer to achieve accurate evaluation of the mechanical performance of the material.
Applications
Material development, physical property testing, teaching and research, quality control
Steps
1. Power on (1PH, AC220V, 50/60Hz)
2. Install optional tensile fixtures and specimens
3. Set test parameters, such as speed, force value units, etc
4. Start the test and the equipment will run automatically
5. After the test is completed, output the results through the micro-printer
6. Turn off the power and clean the equipment
Notice
• Power supply voltage meets AC220V requirements
• Travel (700mm) and Test space (100mm)
• Regularly Check Force Precision and Equipment Stability
• Follow safety settings to avoid over-limit use
• Turn off the power in time after use to keep the equipment clean
