Overview

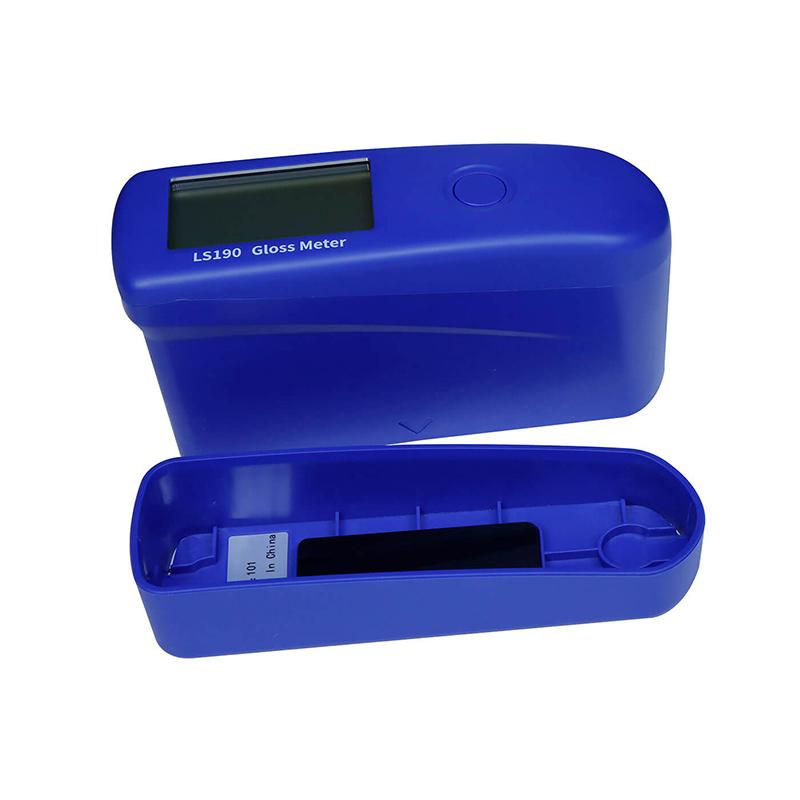

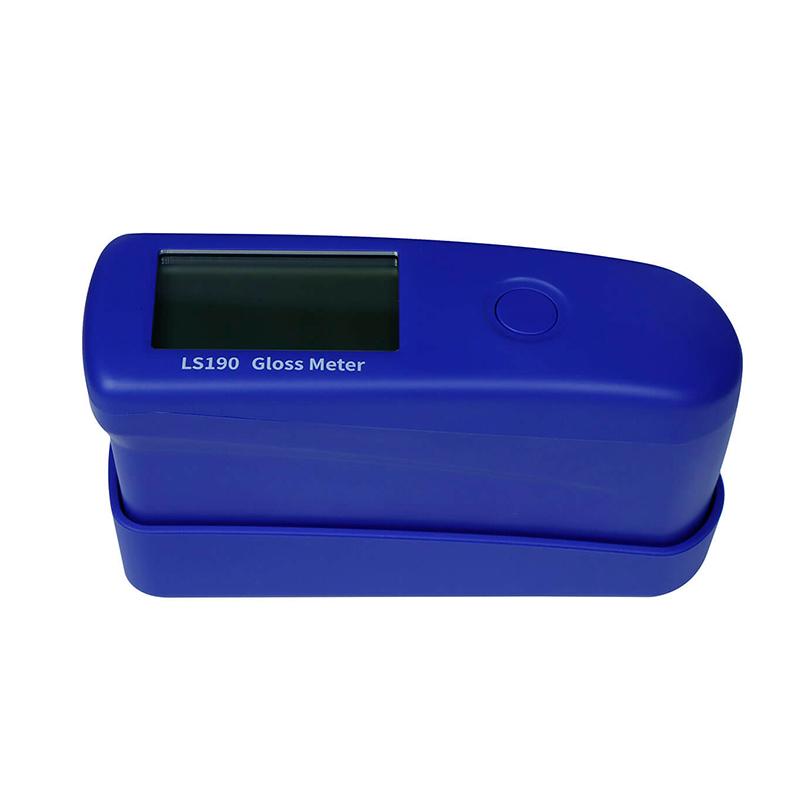

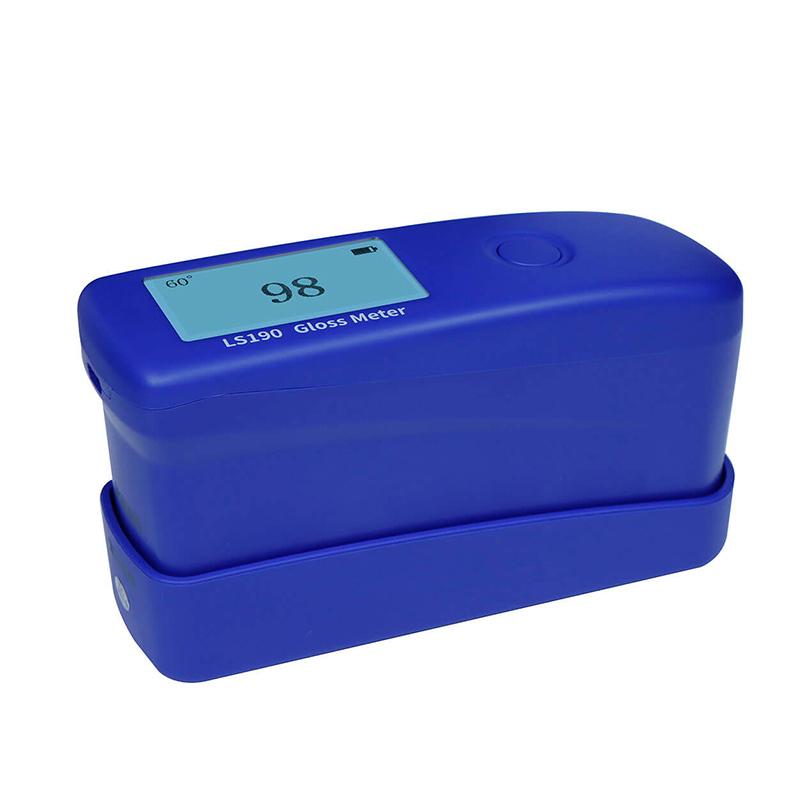

LS190 is a Handheld glossmeter with a range of 0-200GU. It is easy to operate, release and measure immediately, without waiting. The instrument supports normal mode and QC mode, which can realize fast detection, improve efficiency, and meet the national secondary working machine standards for accurate testing.
Features
1. Imported chip and Sensor, with 50 point linear fitting algorithm, Repeatability up to +/- 1GU, resolution up to 1GU, accurate test, stable data.
2. Using D65 Illuminant, the Receiver Light spectrum Response Linear dispersion conforms to the Light spectrum visual function V (lambda) to ensure more accurate measurement of Color objects.
3. The full range accuracy meets the national secondary working machine standard, which can ensure that it has passed the Measurement Institute test.
4. No need to press the button to operate after starting, that is, the measurement time is short and the Test speed is fast.
5. Support QC mode, users can customize upper and lower limits for qualified judgment, suitable for batch testing.
6. Connectivity measurement is supported, and the computer intelligently counts and generates reports on the data, making the measurement more professional.
7. Blue engineering plastic shell, ergonomic design, comfortable grip.
8. With automatic shutdown function, built-in lithium battery, full power can be continuous measurement 115200 times.
Principle
The instrument uses D65 Illuminant and receiver, and its Light spectrum Response Linear dispersion conforms to the Light spectrum visual function V (lambda). The imported chip and Sensor combined with 50-point linear fitting algorithm achieve accurate measurement of Glossiness.
Applications
Glossiness testing, quality control, batch testing, Connectivity measurement
Standards
ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807, JJG 696-2015 secondary work machine requirements
Steps
1. No need to press the button to operate after booting, it can be tested immediately.
2. Customize the upper and lower limits in QC mode for qualified judgment.
Notice
• Operating temperature range is 10~ 45 ℃.
• Operating humidity range is 0~ 85% RH (no condensation).
• Storage Temperature range is -10~ 60 ℃.
• Humidity range 0~ 85% RH (no condensation).
The minimum size of the test object is 20mm * 10mm.
