Overview

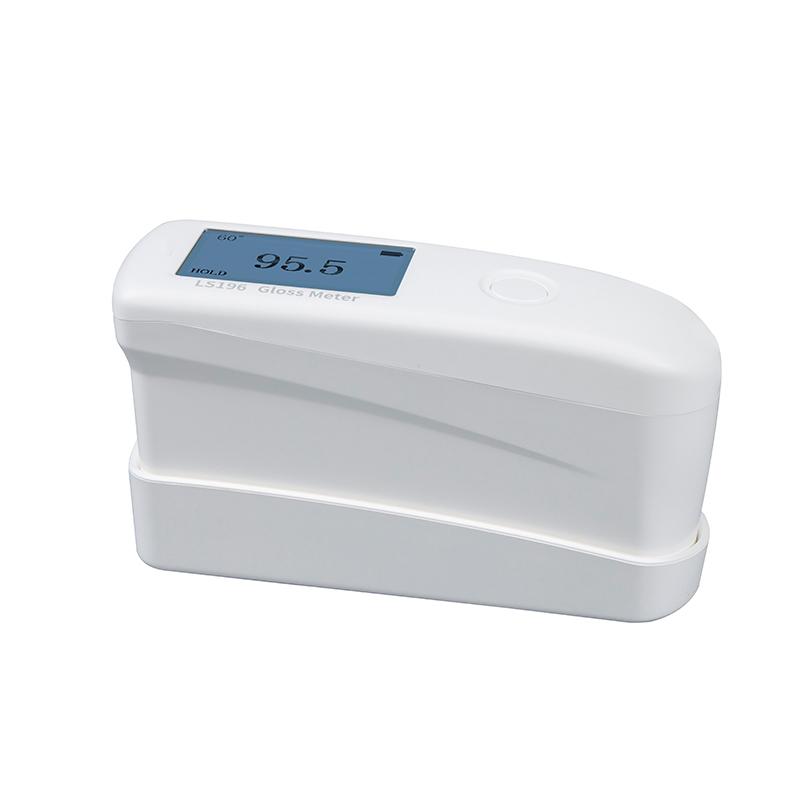

LS196 is a Handheld glossmeter with an ivory white engineered shell. Appearance is simple and generous. Its 60 ° universal angle design, range up to 1000GU, easy to operate, just put and measure, no need to wait. The instrument supports normal mode and QC mode. In QC mode, it can automatically determine whether the material Glossiness is qualified and improve the detection efficiency. It is professionally used for surface Glossiness testing of paints, coatings, inks, plastics, tiles, ceramics, Stone, metals and other materials.
Features
1. Range up to 1000GU, easy measurement of metal products, Eletroplating workpieces and other high Glossiness materials.
2. Adopt a 60 ° universal angle design, suitable for surface Glossiness testing of most materials, with a wide range of applications.
3. The instrument adopts D65 Illuminant, and the receiver Light spectrum Response Linear dispersion conforms to the Light spectrum visual function V (lambda) to ensure more accurate measurement of objects with Color.
4. The accuracy within the full range meets the national first-class working machine standard, which can ensure that it has passed the Measurement Institute test.
5. Using imported chips and Sensors, with a unique 50-point linear fitting algorithm, Repeatability can reach +/- 0.2GU, resolution can reach 0.1GU, and repeated test data at the same location is consistent.
6. No need to press the button to operate after booting, it can be tested immediately, and the waiting of 0.5s is rejected.
7. Support QC mode, users can customize upper and lower limits for qualified determination, suitable for batch testing.
8. With powerful PC Software support, Connectivity measurement can generate measurement reports, and the measurement results are clear at a glance.

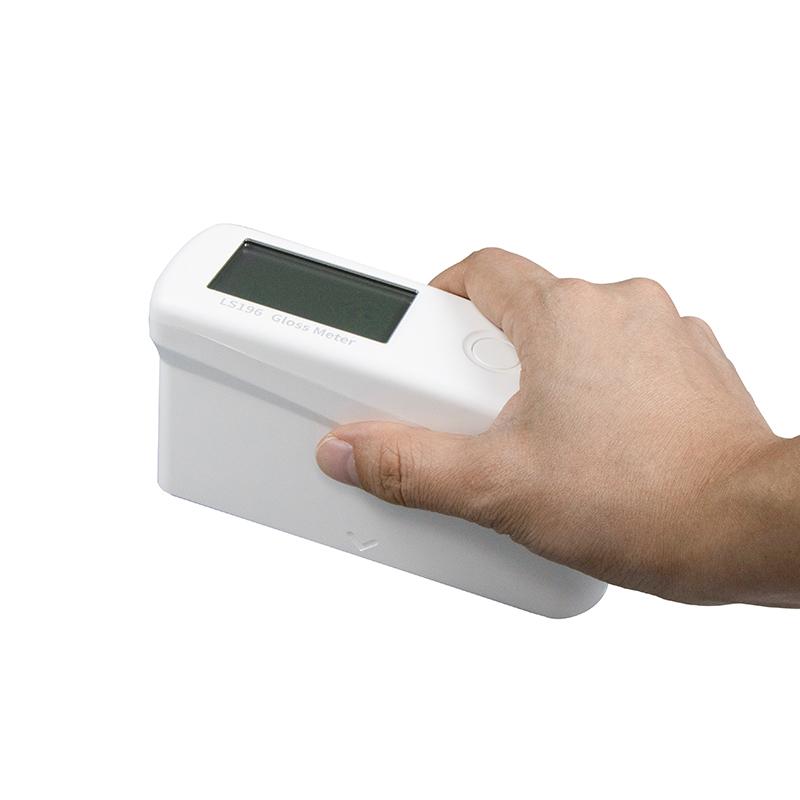

9. The fuselage is made of ivory white engineering plastic shell. Appearance is smooth, ergonomic design, comfortable grip, and long-term measurement is effortless.
10. With automatic shutdown function, built-in lithium battery, long-lasting battery life, full power can be continuous measurement 115,200 times.
Principle
The instrument adopts a 60 ° universal angle design, illuminates the surface of the object through the D65 Illuminant, and the receiver Light spectrum Response Linear dispersion conforms to the Light spectrum visual function V (lambda). Combined with imported chips and Sensors and a unique 50-point linear fitting algorithm, accurate gloss measurement is achieved to ensure data Repeatability and accuracy.
Applications
Paints, Coatings, inks, Plastics, Tiles, Ceramics, Stones, Metals
Standards
ISO2813、ISO7668、ASTM D523、ASTM D2457、DIN 67530、GB/T9754、GB/T13891、GB/T7706、GB/T8807、JJG 696-2015
Steps
1. No need to press the button to operate after booting, it can be tested immediately.
2. Direct measurement of material Glossiness in normal mode.
3. Customize the upper and lower limits in QC mode to determine the qualification.
Notice
The minimum size of the test object is 20mm * 10mm.
• Operating temperature is 10~ 45 ℃, Humidity 0~ 85% RH (no condensation).
• Storage temperature is -10~ 60 ℃, Humidity 0~ 85% RH (no condensation).
• Ensure that the instrument is fully charged before use and avoid operating in extreme environments.
