Overview
The LS192 is a Handheld glossmeter with a 60 ° universal angle design and a range of up to 1000GU. It is widely used for surface Glossiness testing of paints, coatings, inks, plastics, paper, tiles, ceramics, Stone, metals and platings. The instrument is easy to operate and can be measured immediately without pressing buttons. In addition to normal mode, it can also be set to QC mode for quick QC detection. The instrument is also equipped with powerful PC software for Connectivity measurement, intelligent statistics of data and generation of measurement reports.
Features
1. The operation is simple, it can be used immediately after starting the machine, the instrument can be measured immediately, and the data can be locked with one click, without cumbersome settings.
2. The instrument can be switched to normal mode or QC mode to adapt to different application scenarios. Normal mode can be released and measured immediately, and fast reading; QC mode can customize the upper and lower limits and judge whether the data is qualified or not, which can realize fast detection of incoming materials.
3. The instrument has Ambient Temperature Compensation function, numerical stability, allowing long-period calibrating. Repeatability is very good, 0-100GU Measurement range, Repeatability up to +/- 0.2GU; 100-1000GU Measurement range Repeatability up to +/- 0.2% reading.
4. The LS192 glossmeter can ensure that it passes any Measurement Institute test and meets the national JJG696-2002 first-class working machine standard, which is fully comparable to the imported glossmeter test data.
5. Equipped with dedicated host computer software (only supports Windows systems), supports PC-side settings, Connectivity measurement, and can print test reports with test results.

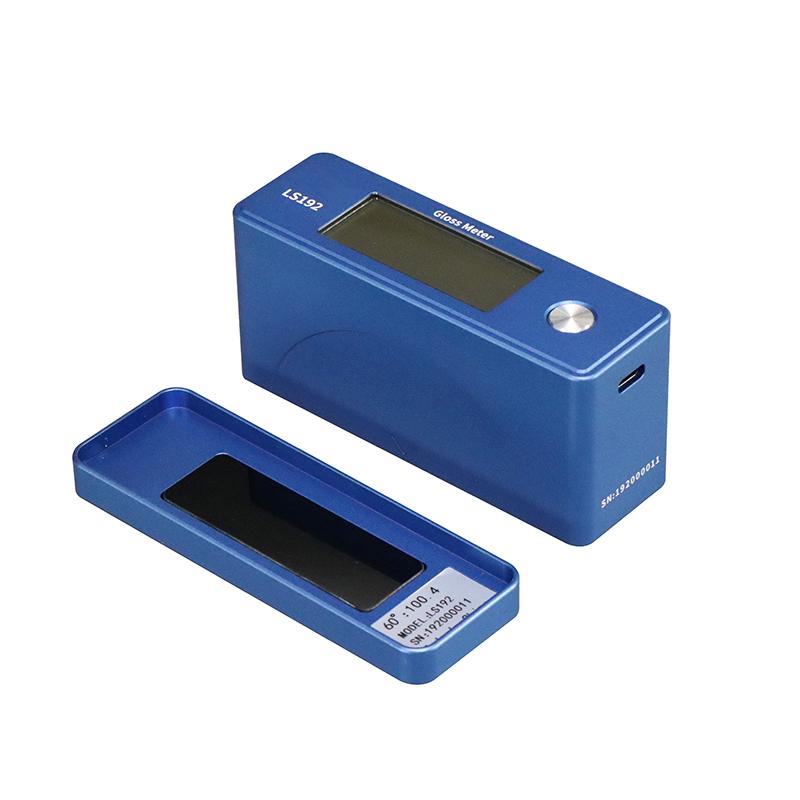

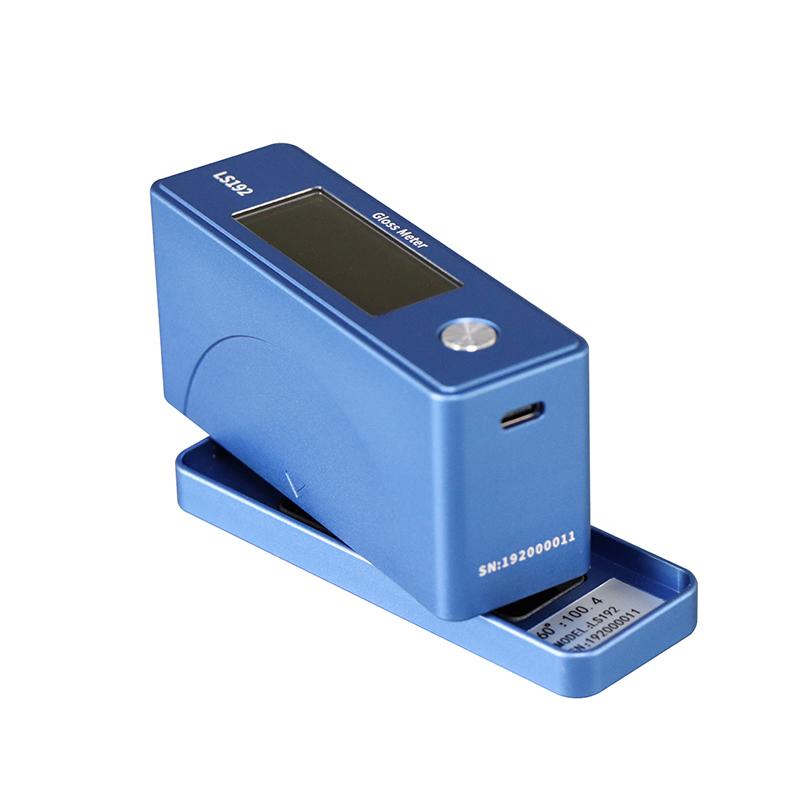

6. Strong magnetic suction bottom cover design, two-in-one with the standard plate, can be calibrated when turned on, no need to worry about Calibration plate loss.
7. Built-in high-performance rechargeable lithium battery, the instrument has ultra-low power consumption, and can last for more than 48 hours on a single charge.
8. The fuselage is thin, compact and portable, with an aviation aluminum shell, industrial style design, and excellent texture.
Principle
The instrument adopts a 60 ° universal angle design, performs Glossiness testing on the surface of the product through the Measuring Area, and combines the Ambient Temperature Compensation function to ensure numerical stability. It can be placed and measured immediately during operation, and can be switched to normal mode or QC mode for quick detection without pressing a button.
Applications
Paints, Coatings, inks, Plastics, Paper, Tiles, Ceramics, Stones, Metals, Platings
Standards
ISO2813、ISO7668、ASTM D523、ASTM D2457、DIN 67530、GB/T9754、GB/T13891、GB/T7706、GB/T8807、JJG 696-2002
Steps
1. It can be used when turned on, and the instrument can be measured immediately, without button operation.
2. Can switch normal mode or QC mode for measurement.
3. Connect the computer with USB and run the PC software for Connectivity measurement, parameter setting and report generation.
Notice
• PC software only supports Windows Operating system.
• Operating temperature of the instrument is 10~ 45 ℃, 0~ 85% RH (no condensation).
Storage temperature is -10~ 60 ℃, 0~ 85% RH (no condensation).
• Encasement list includes glossmeter, USB data cable, software U disk, cleaning cloth, manual, certificate/quality assurance card.
