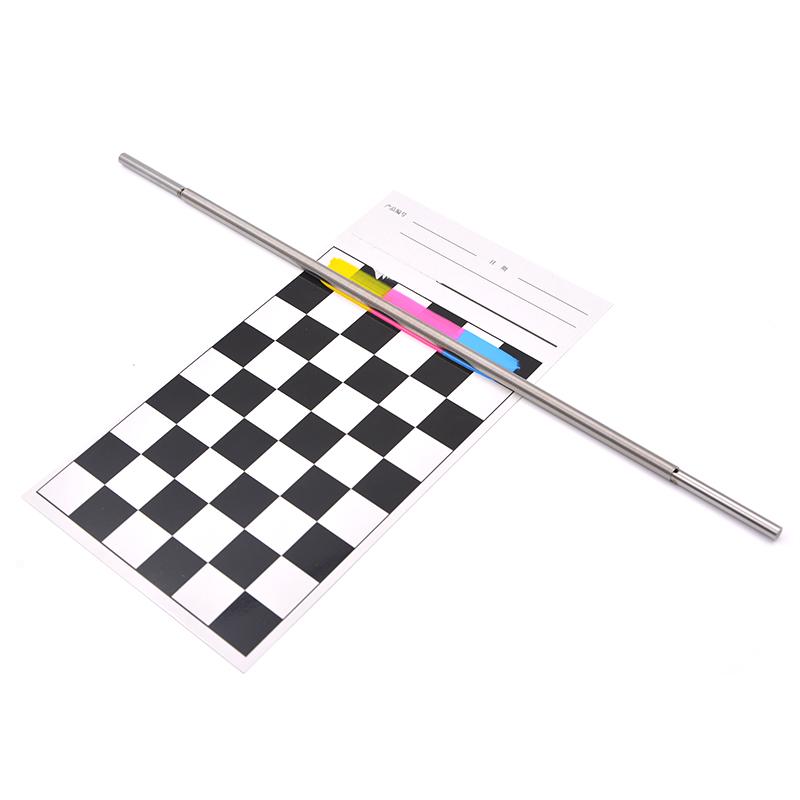

RDS 10 #1/4 Applicator Rod wet film thickness 22.9 μm, stainless steel wire-wound

Name: RDS 10 #1/4 Applicator Rod wet film thickness 22.9 μm, stainless steel wire-wound
Brand: RDS
SKU: NB004881
Price: 158.0 USD
Availability: PreOrder

$ 158.00Ex works

Wet film thickness 22.9 microns, diaMeter 6.35mm, using the wide-wound process, through the groove to roller painting and scraping accurate control of Coating Weight, suitable for a variety of substrates, easy to clean and Spreader uniform.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB004881

Service :The delivery and service By NBCLab.Com

Overview

The RDS 10 #1/4 Applicator rod is a professional Spreader tool with a wet film thickness of 22.9 microns and is divided into two types: wire-wound drawdown bar and molding rod. The molding rod is processed by a special extrusion process with continuous grooves, unbroken wires and easy to clean; the wire-wound drawdown bar follows the traditional Mayer Rod test principle and is more commonly used in the industry. The film thickness and accuracy of the same model of the two types are the same, the main difference is Coat Weight.

Features

1. Provide wide-wound drawdown bar and molding rod two types to choose from 2. The forming rod adopts a special extrusion process, which has the advantages of continuous wire and easy cleaning 3. Wire-wound drawdown bar is based on the traditional Mayer Rod test principle and is widely used in the industry 4. The same type of film thickness and accuracy are consistent 5. High Accuracy wire-rod film applicator

Principle

Through the design of different grooves on the rod body, the inks are controlled on the film, paper and other substrates by roller painting and scraping, so as to achieve uniform coating of Coating and form a flat and uniform thickness coating.

Applications

Spreader for film, paper and other substrates

Steps

1. Select the appropriate Applicator rod type (wire-wound drawdown bar or molding rod) 2. Applicator rod mounted to high accuracy wire-rod film applicator 3. Spreader on the surface of the substrate by roller painting or scraping 4. Coating uniformly to form a flat coating

Notice

• Choose the appropriate rod type according to Coating Weight requirements • Pay attention to cleaning and maintenance before and after use • Ensure Applicator rod is compatible with Film Applicator • Spreader uniformity during operation

Production process
wire-wound
wet film thickness
22.9 μm
rod diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
wire diameter
0.25mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
