Overview

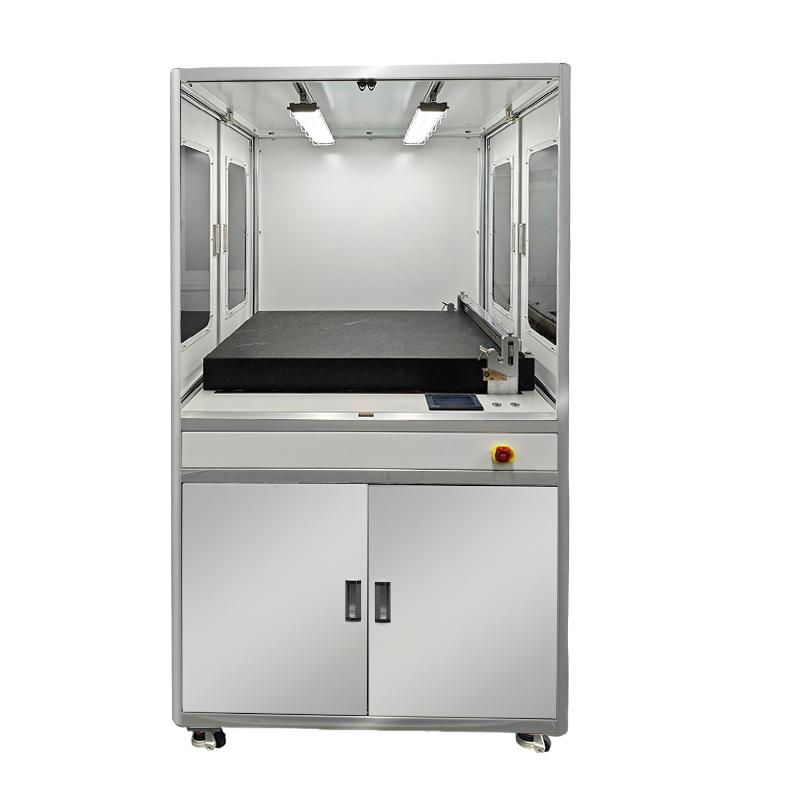

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. Big brand differential regulator, high film thickness control accuracy

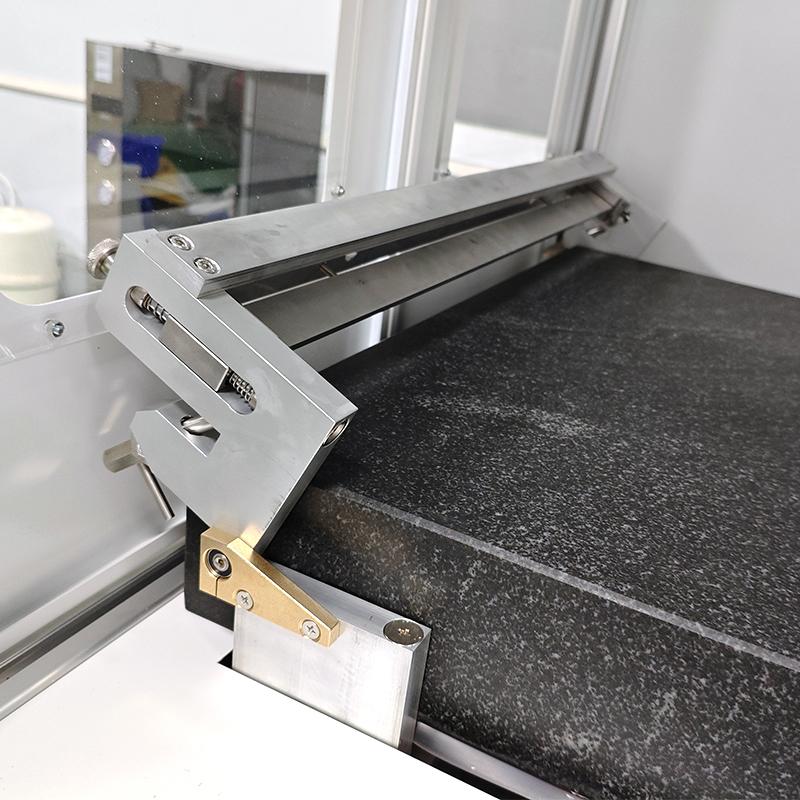

3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy

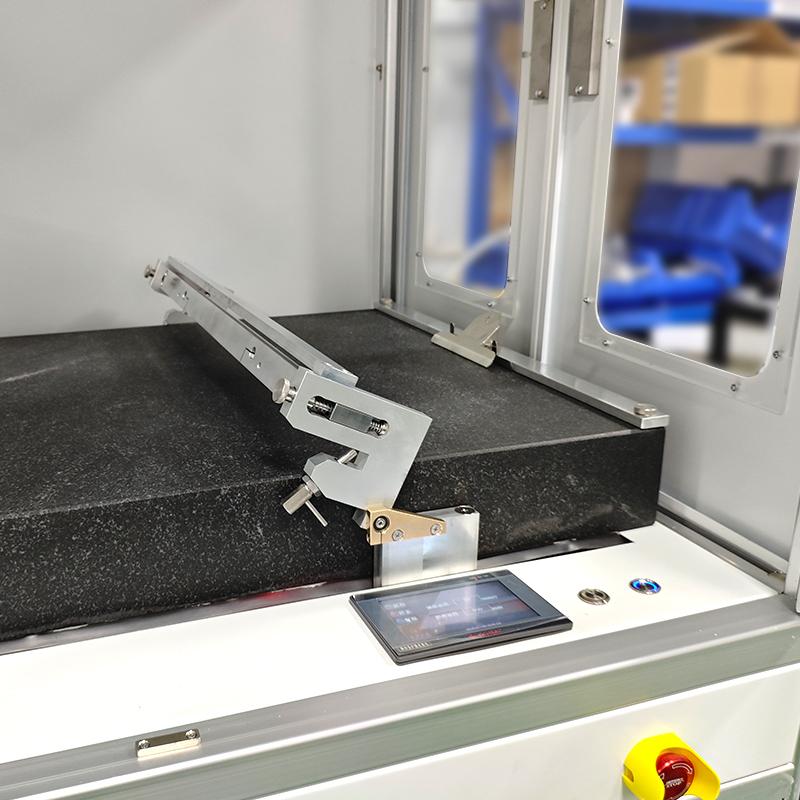

5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare samples and substrates
2. Set Spreader parameters (application length, Spreader speed)
3. Install bar or Blade Coating head
4. Start the device for automatic filming
5. Clean the Spreader head after finishing the film
Notice
• Make sure the power supply of the device is 220V 50Hz before use
• Spreader coating speed range 5~ 180mm/s
• Regularly clean clamshell Blade Coatings to maintain accuracy
• Spreader thickness according to bar model, wet film thickness 0~ 300μm optional
• Customized functions need to be confirmed in advance
