Overview

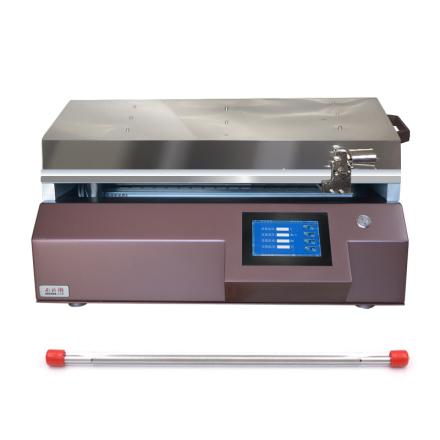

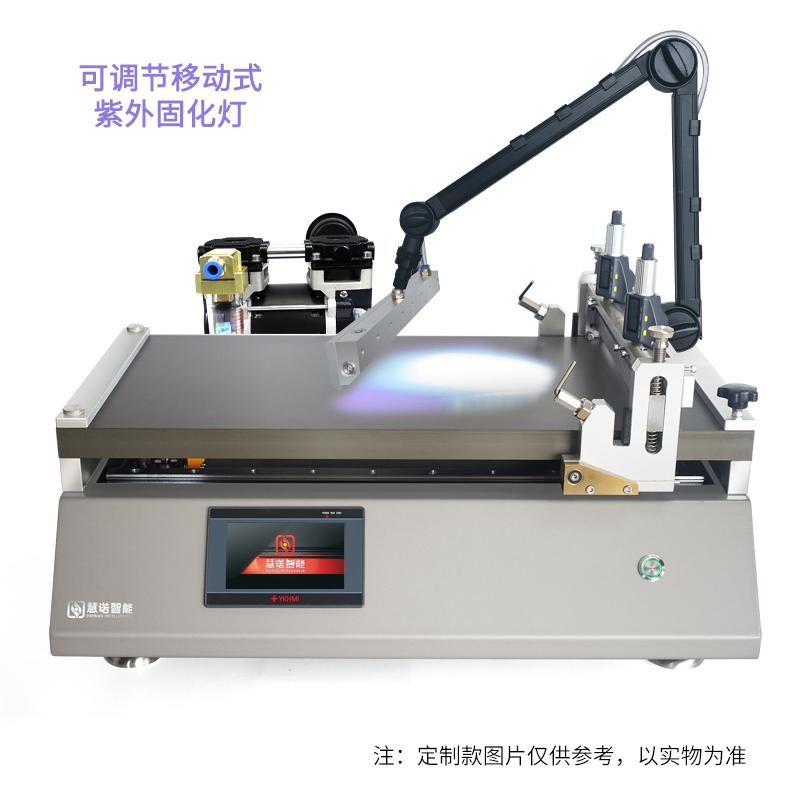

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Select coating method (bar or Drawdown blade)
5. Start Film Applicator Spreader
6. Choose heat curing or UV UV curing as needed
Notice
• Make sure that the power supply of the equipment meets the requirements before use (100V~ 220V/50~ 60HZ)
• Pay attention to the Spreader parameter settings during operation to avoid exceeding the equipment specifications
• Drawdown blades and bars should be cleaned carefully
• Pay attention to safety protection when using heating and UV curing functions
• Regularly check whether the Vacuum chuck system and heating system are functioning properly
