Overview

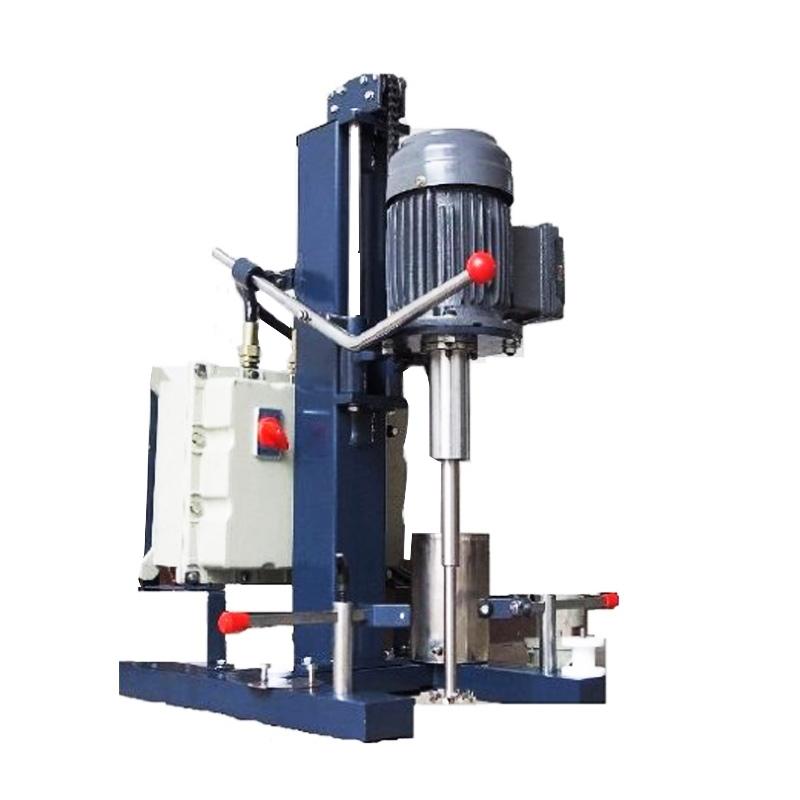

MUXUAN MXF-0.75 full explosion-proof laboratory dispersion sand mill adopts a new high-performance motor as the driving motor, which is suitable for stirring and mixing of flammable and explosive materials. It has the advantages of small size, large output power, small vibration, stable Rotation speed, low noise and variable frequency and speed. It completely improves the working safety environment of laboratory testers and is a new upgraded product that is more suitable for laboratory use.
Features
1. The new high-performance intermediate frequency variable frequency motor is used as the drive motor, which has the advantages of small size, large output power, small vibration, stable Rotation speed, low noise and variable frequency speed, large starting torque, high operating efficiency, low energy consumption, low noise, no commutation spark interference, no carbon brush mechanical abrasion, Stability and other advantages
2. One machine is multi-purpose, which can realize dispersion, grinding, stirring and mixing
3. Simple operation, easy disassembly of the working head; equipped with dispersion disc and sand disc
4. Closed work, reducing volatilization and splash pollution, easy to clean
5. Modular design, unique internal quality; easier maintenance
6. CPU frequency conversion digital display Dynamic Rotation speed control, intelligent control of the whole machine
Principle
The equipment is driven by high-performance intermediate frequency variable frequency motor, and realizes intelligent control through CPU variable frequency digital display dynamic Rotation speed Control system, which drives dispersion disc or sand disc to disperse, grind, stir, mix and other operations.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Select the appropriate dispersion disc or sand disc according to the material characteristics
2. Install the working head and fix it
3. Rotation speed parameters required
4. Start the equipment for dispersion, grinding, mixing or mixing operations
5. Turn off the device after the operation is completed
6. Remove the working head for cleaning
Notice
• Material viscosity should not exceed 50000 cps
• Processing capacity range 0.2-5 L
• Pay attention to safety when disassembling the work head
• Before using the equipment, check whether the components are firmly installed
• Pay attention to observe the running status of the equipment during operation
