Overview

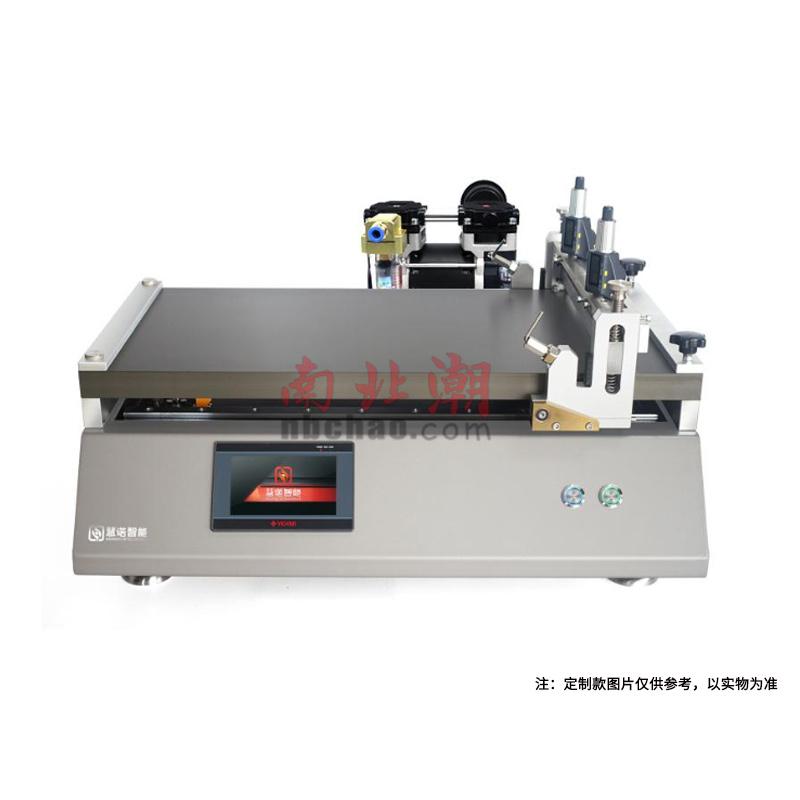

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a drawdown Bar & blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader and are easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
University research institutes, New materials, lithium batteries, glues, Resin, coatings, inks, paints, Stocks, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other laboratories
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed, etc.)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Select coating method (bar or Drawdown blade)
5. Start Film Applicator for automatic filming
6. Spreader head after film
Notice
• Please read the instructions carefully before operation
• Make sure the substrate is firmly fixed
• Regularly clean Spreader heads and countertops
• Pay attention to heating temperature control
• Use appropriate Spreader parameters
