$ 7403.00Ex works
Using bar and Drawdown blade double coating method, coating speed 1~ 300mm/s stepless speed regulation, Spreader accuracy of +/- 0.003mm, equipped with Vacuum chuck and clamshell design, easy to clean and suitable for soft substrates.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB048940
Service :The delivery and service By NBCLab.Com

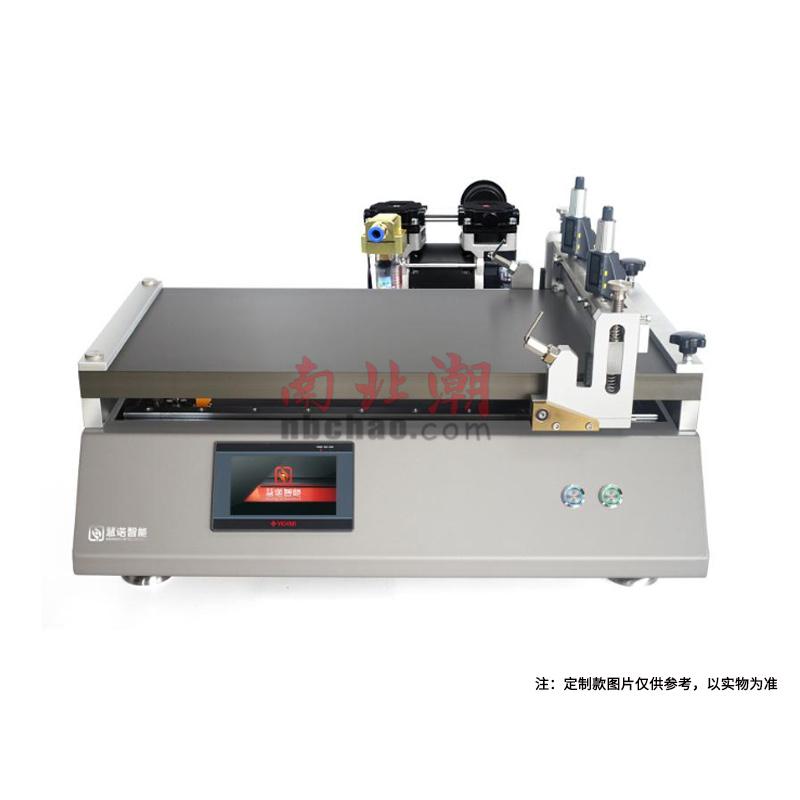

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is drawdown Bar & blade Coater, using bar and Drawdown blade two coating methods, with Vacuum chuck function, innovative bar Installation method and clamshell Drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. High Accuracy film applicator, original imported bar film uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Two coating methods, bar and Drawdown blade, are used, driven by servo motor, combined with Vacuum chuck to fix the substrate, to achieve High Accuracy automatic film.
University research institutes, New materials, lithium batteries, glues, hot-melt adhesives, coatings, inks, paints, Stocks, lithium batteries, Pressure sensitive adhesives, Resin, polymer materials and other laboratories Moulding proofing
1. Prepare the substrate and place it on the Spreader stage 2. Vacuum chuck function fixed substrate 3. Select the coating method (bar or Drawdown blade) and set the parameters 4. Adjust application length and speed via Touchscreen 5. Start the automatic film process 6. Turn off the equipment and clean it after finishing the film
• Make sure the power and air source of the device are connected correctly before use • Spreader parameters need to be adjusted according to sample and substrate characteristics • Clean Spreader head and countertop regularly to maintain accuracy • Avoid touching running parts during operation • Vacuum chuck function for soft substrates to ensure flat placement • Pay attention to air pressure adjustment when using the feeding system to avoid overpressure operation
