$ 6128.00Ex works
With bar and Drawdown blade two coating methods, coating speed 1-300mm/s stepless speed regulation, film thickness control accuracy of +/- 0.001mm, equipped with Vacuum chuck and heating system, support UV light curing function.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB048968
Service :The delivery and service By NBCLab.Com

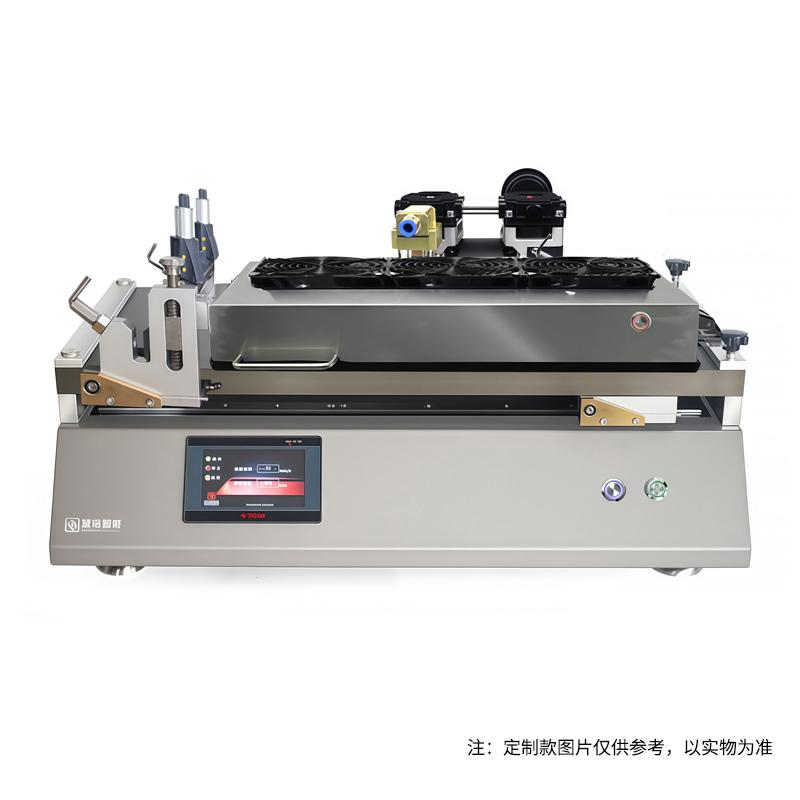

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. High Accuracy film applicator, original imported bar film uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. Vacuum chuck and heating
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
University research institutes, New materials, lithium batteries, glue, Resin and other laboratories for Moulding proofing
1. Set Spreader parameters through the Touchscreen control panel 2. Adjust application length and Spreader speed 3. Select Bar or Blade Coating Method 4. Start the device for automatic filming
• Please make sure the power supply of the device is connected correctly before use • Pay attention to the Spreader parameter settings when operating • Regularly clean the Spreader head to keep the equipment clean • Pay attention to the safe use of Vacuum chuck and heating function
We recommend using the Hinuo TM3300UV/02 Automatic Coating Machine. This device integrates both wire rod and blade coating functions, offering high coating precision, making it particularly suitable for samples such as lithium battery materials that require strict coating uniformity. It features vacuum adsorption and heating functions, ensuring a flat substrate and stable coating curing during the coating process, making it ideal for film preparation and prototyping in lithium battery laboratories.
For materials that are prone to drying and sticking, such as adhesives and resins, we recommend the Huinuo TM3300UV/02. Its blade head features a flip-top design, and the wire rod adopts an innovative installation method, making disassembly and cleaning particularly convenient. This effectively prevents sample residue from affecting subsequent experiments. Additionally, its coating speed and length are adjustable, allowing for flexible adaptation to the coating requirements of adhesives and resins with different viscosities.
You might consider the Huinuo TM3300UV/02. It is a composite film applicator that integrates both thermal curing and UV curing functions. With its uniformly controlled heating temperature and UV light source offering sufficient power and appropriate wavelength, you can conduct experiments with various curing methods on a single device. This makes it highly efficient, particularly suitable for scenarios like new material research, where exploring different process conditions is essential.
