Overview

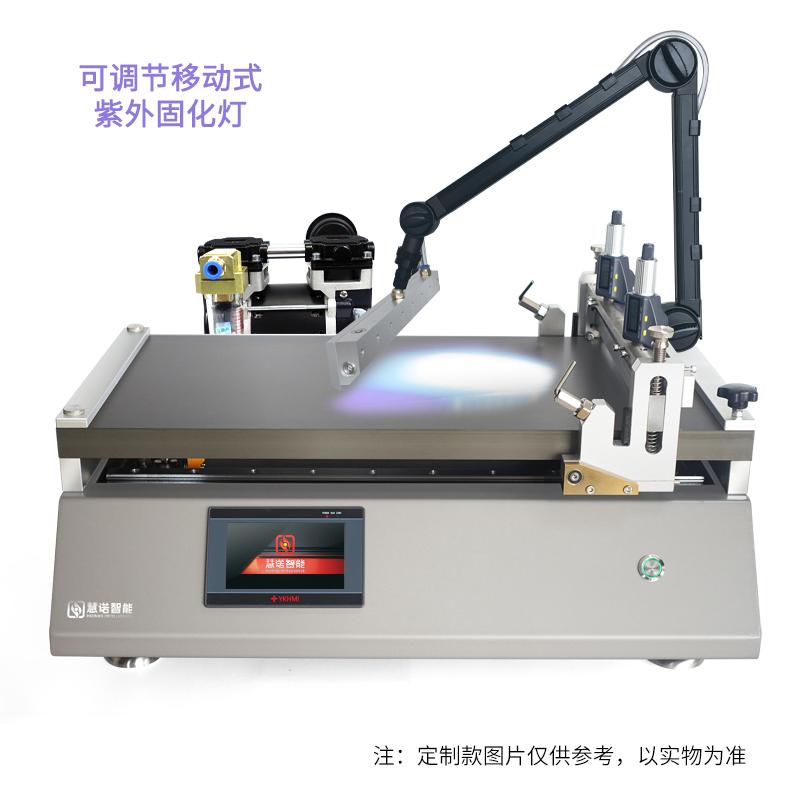

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a drawdown Bar & blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader and are easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in laboratories.
Features
1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Moulding proofing, coatings, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples
Standards
3C certification national standard
Steps
1. Set Spreader parameters through the Touchscreen control panel
2. Use a fixture to fix the substrate
3. Select Bar or Blade Coating Method
4. Adjust application length and Spreader speed
5. Start the device for automatic filming
Notice
• The thickness of the substrate needs to be ≤ 50mm (customized)
• Glass coating table material, pay attention to avoid violent collision
• Make sure the power supply of the device is 220V/50HZ before Spreader (110V/60HZ can be customized)
• Clean the Clamped Blade Coating Head in time after use
• Optional features include heating and Vacuum chuck, depending on requirements
