Overview

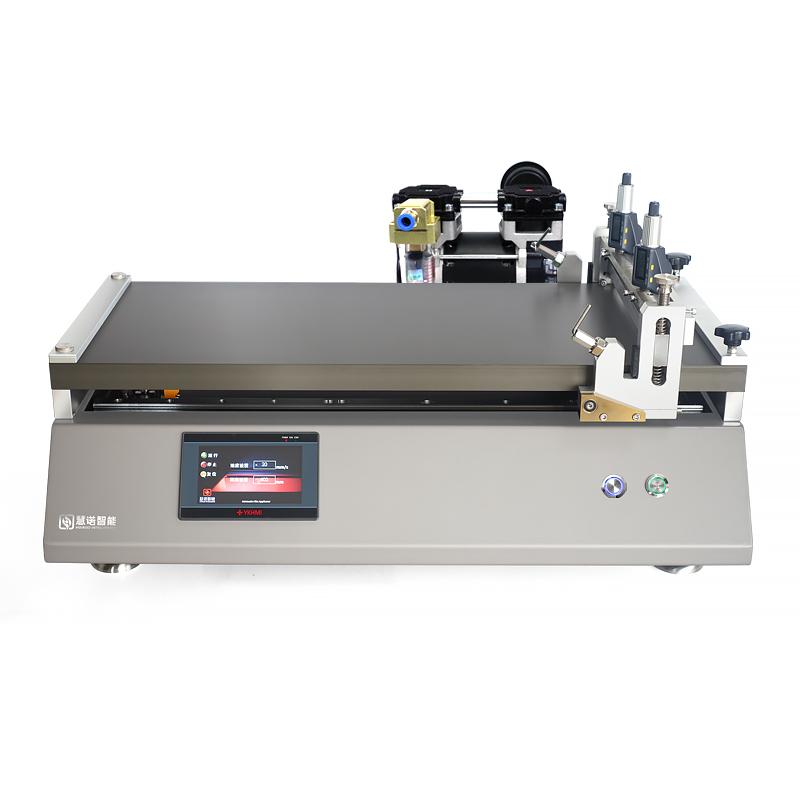

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is drawdown Bar & blade Coater, using bar and Drawdown blade two coating methods, with Vacuum chuck function, innovative bar Installation method and clamshell Drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
Automatic Film Applicator uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automated film is realized by using two coating methods, bar and Drawdown blade, combined with Vacuum chuck function to fix the substrate.
Applications
Paint, inks, paints, Stock, hot-melt adhesive, lithium battery, Pressure sensitive adhesive, Resin, glue, polymer materials and other film sample preparation, can be scraped on film, cardboard, aluminum foil copper foil
Steps
1. Prepare the substrate and samples
2. Set application length and Spreader speed parameters through Touchscreen
3. Select Bar or Blade Coating Method
4. Start Vacuum chuck fixed substrate
5. Start the automated film process
6. Clean the Spreader Head after completion
Notice
• Power supply voltage matching before use (default 220V/50HZ, can be customized 110V/60HZ)
• Check Vacuum chuck function before Spreader
• Select the appropriate bar or adjust the thickness of the Drawdown blade according to the required film thickness
• Clean the Spreader head in time after the Spreader is completed, especially the clamshell Drawdown blade head
• Pay attention to safety during operation and avoid contact with moving parts
• Regularly check countertop Smoothness and equipment operation status
