Overview

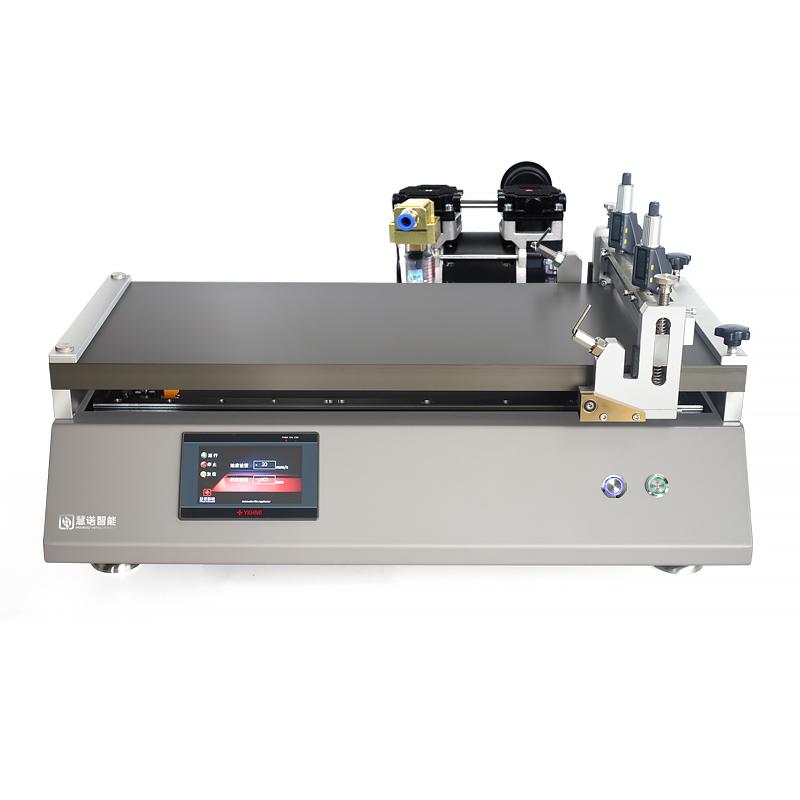

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, using two coating methods of bar and Drawdown blade. External Vacuum chuck pump, innovative bar Installation method and clamshell Drawdown blade head greatly improve Spreader efficiency, easy cleaning, speed control and application length adjustment functions, suitable for laboratory High Accuracy automatic film.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Two coating methods, bar and Drawdown blade, are used to fix the substrate through Vacuum chuck and fixture to realize the automatic film process.
Applications
Moulding proofing in research institutes of universities, New materials, lithium batteries, glues, Resin and other laboratories. Suitable for coating, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples, can be scraped on films, cardboard, aluminum foil and copper foil.
Steps
1. Prepare Substrate and Spreader Samples
2. Select coating method (bar or Drawdown blade)
3. Set Spreader parameters (application length, Spreader speed)
4. Fixed substrate (using Vacuum chuck or fixture)
5. Start Film Applicator for Auto Spreader
6. Clean the Spreader head after finishing the Spreader
Notice
• Please read the instruction manual carefully before operation
• Power supply voltage meets equipment requirements (100V~ 220V/50~ 60HZ)
• Check whether the substrate is firmly fixed before Spreader
• Regularly clean Spreader heads and countertops
• Clean bar and Drawdown blade after use
• Pay attention to the normal operation of the vacuum pump
