Overview

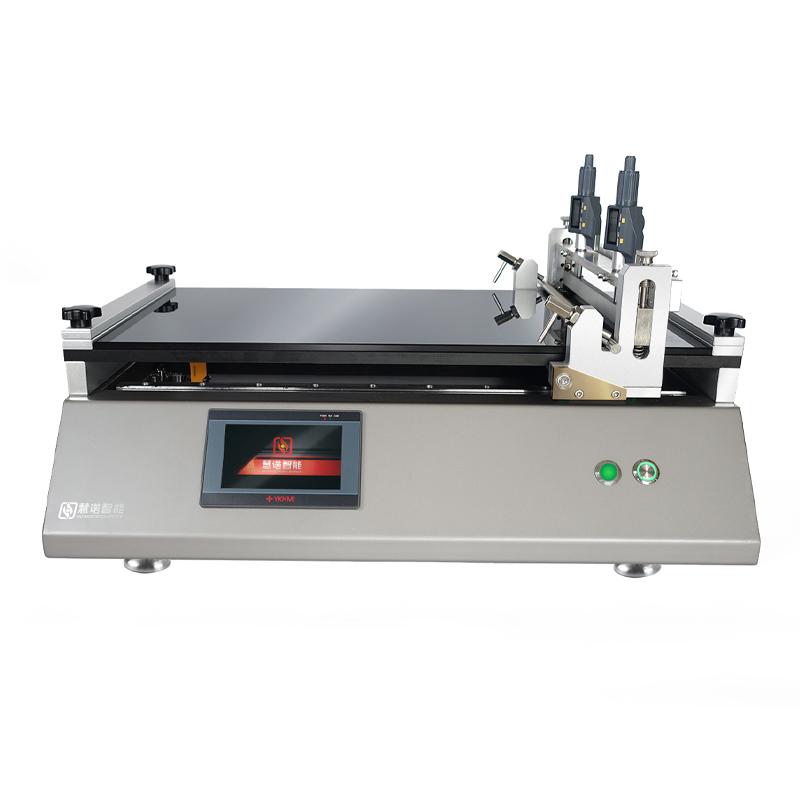

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
Automatic Film Applicator uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. It has two functions of bar Spreader and Blade Coating, and adopts the innovative bar Installation method and the clamshell Drawdown blade head to realize High Accuracy automatic film.
Applications
Paint, inks, paints, Stock, Lithium Battery, Pressure sensitive adhesive, Resin, Glue, Polymer Materials, Pharmaceuticals and other film sample preparation, can be scraped on Glass, cardboard, fabric
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (such as application length, Spreader speed)
3. Select coating method (bar or Drawdown blade)
4. Start the device for automatic filming
5. Clean the Spreader head after finishing the film
Notice
• Make sure that the power supply of the equipment meets the requirements before use (100V~ 220V/50~ 60HZ)
• Spreader process pay attention to safety, avoid contact with moving parts
• Regular cleaning of Spreader head to maintain accuracy
• Select the appropriate Spreader thickness and speed according to material characteristics
• Optional functions (e.g. heating, Vacuum chuck) need to be configured on demand
