Overview

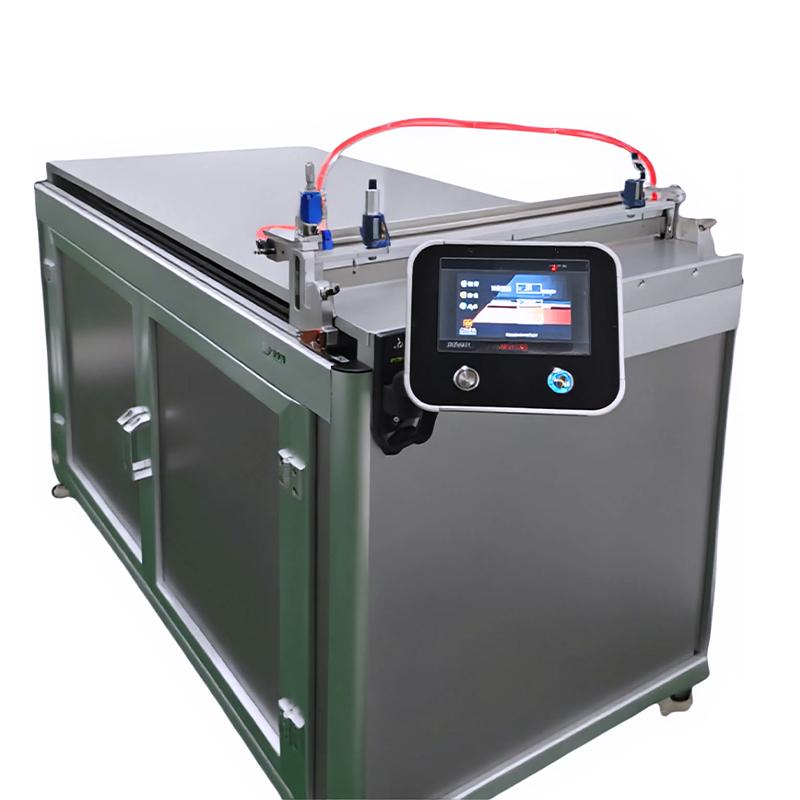

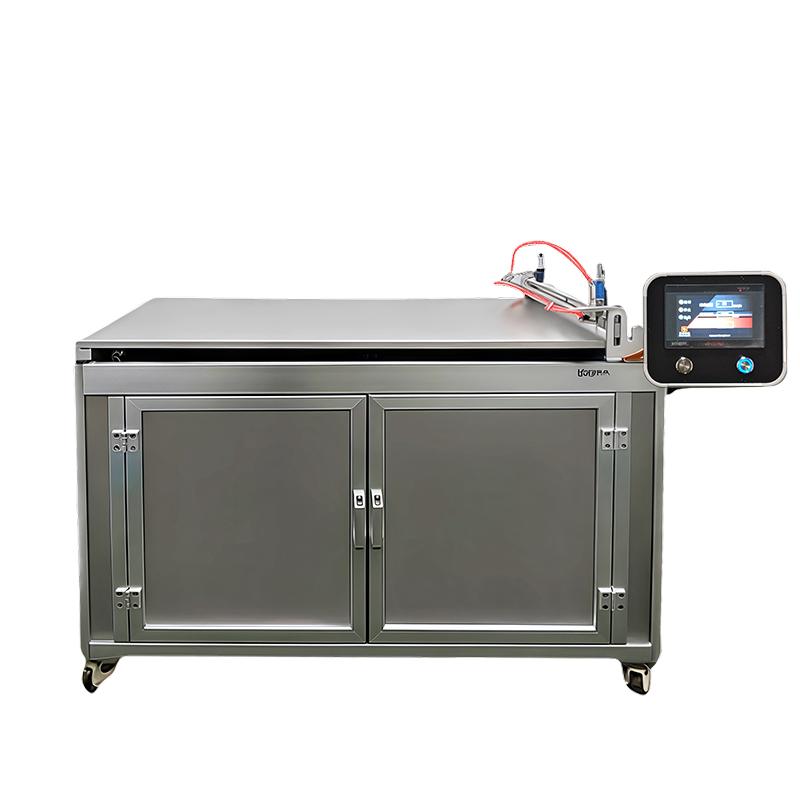

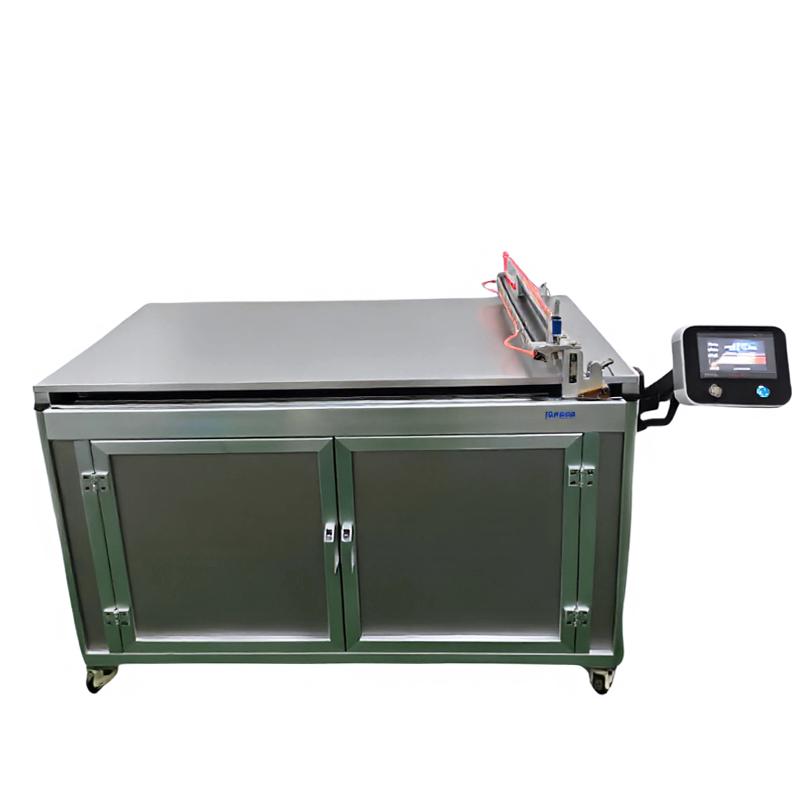

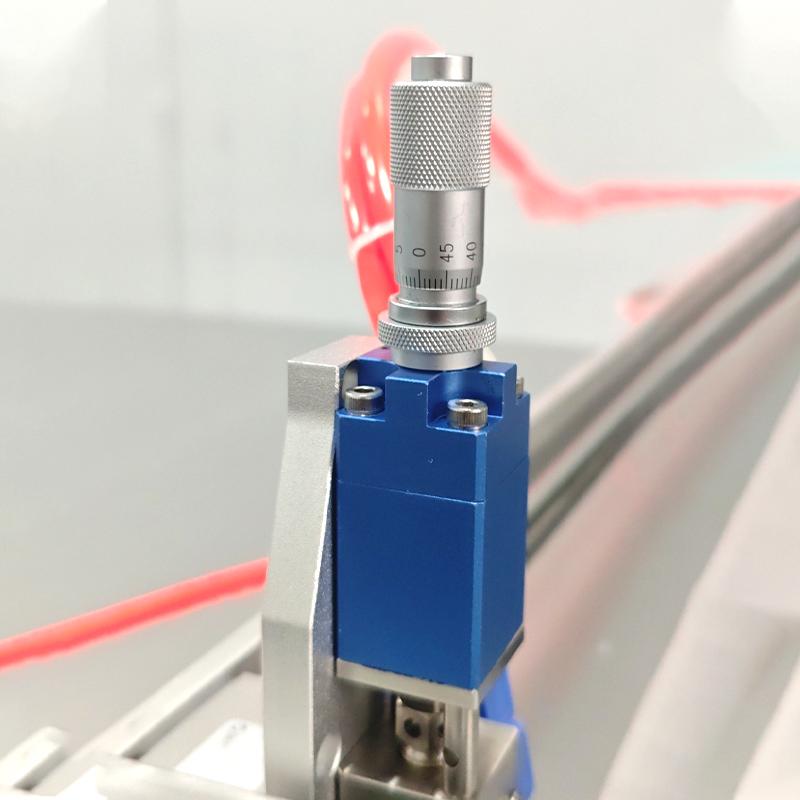

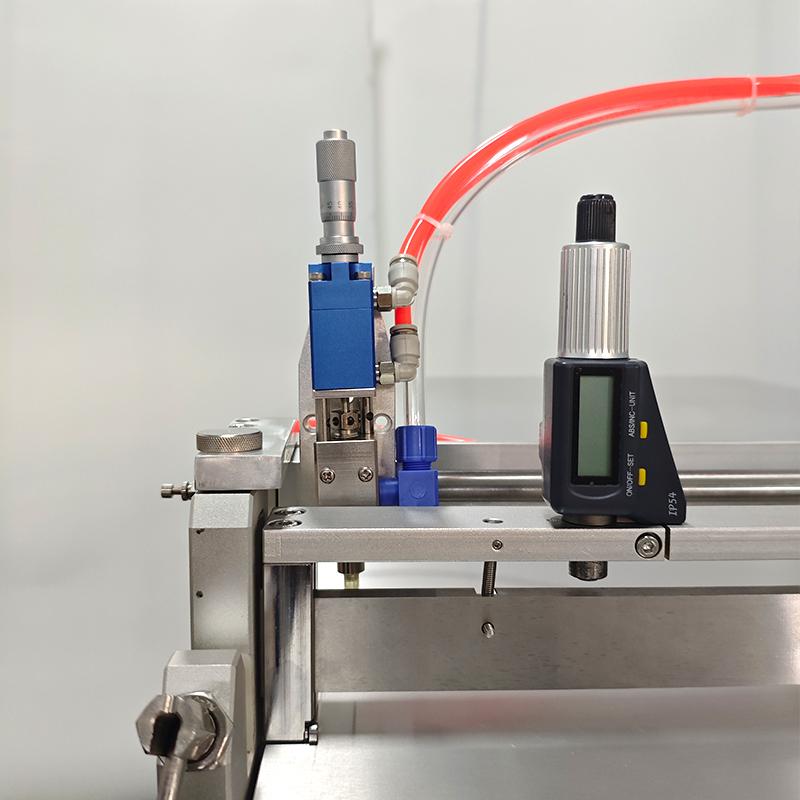

HuiNuo TM3000/11AFD Automatic Film Applicator is a multi-functional Spreader equipment, using bar and Drawdown blade two coating methods, supporting 1~ 300mm/s stepless speed regulation coating speed. The equipment is equipped with an automatic feeding system, which realizes reciprocating linear motion feeding through air source pressure, suitable for film applications of various substrates.
Features

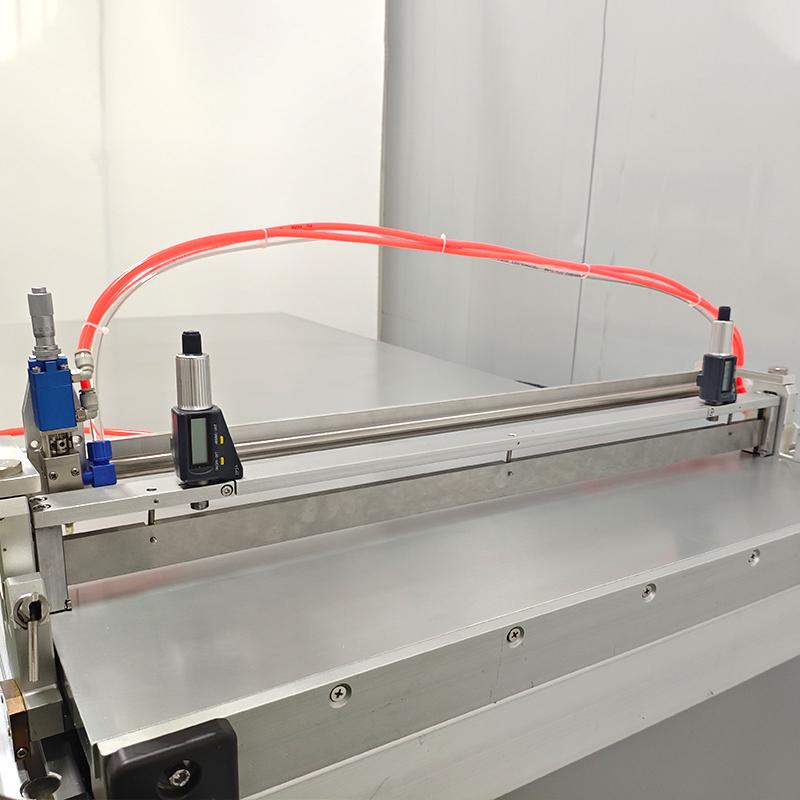

1. Support bar and Drawdown blade double coating method, bar accuracy up to +/- 0.001mm, Blade Coating accuracy +/- 0.003mm.
2. The coating speed is 1~ 300mm/s stepless speed regulation, and the effective coating area can be customized.
3. Standard automatic feeding system, the amount of material can be adjusted, and the Mixing Tank is made of 304 stainless steel, with a maximum pressure of 8Mpa.
4. Equipped with color LCD Touchscreen, Operating language supports Chinese (can be customized in English).
5. Optional heating and Vacuum chuck function to enhance application flexibility.
Principle
The device performs Spreader on the surface of the substrate through a bar or Drawdown blade. The thickness of the bar Spreader is determined by the rod number. The thickness range of Blade Coating is 0.1~ 10mm. The automatic feeding system is driven by air source pressure, and the material is evenly discharged from the Mixing Tank by reciprocating linear motion. The coating speed and the amount of material can be precisely controlled by adjusting the air pressure and speed.
Applications
Coatings, inks, Adhesives, Electronic Materials, Laboratory R & D
Standards
Power standard: 100V~ 220V/50~ 60HZ
Steps
1. Fix the substrate to the coating table fixture.
2. Select the bar or Blade Coating method according to your needs, and set the coating speed.
3. Start the automatic feeding system, adjust the air pressure and discharge port speed to control the discharge volume.
4. Start the Spreader process by setting parameters through Touchscreen.
5. After the Spreader is completed, clean the device and turn off the power.
Notice
• The air source of the feeding system needs to be equipped with a 8 trachea, and the pressure is 0.6Mpa.
• The maximum pressure of the Mixing Tank is 8Mpa, do not use it under overpressure.
• Glass coating table material, to avoid hard collision during operation.
• Device power is 400w, and the power supply needs to match 100V~ 220V/50~ 60HZ.
• Optional features such as heating and Vacuum chuck need to be configured according to actual needs.
