Overview

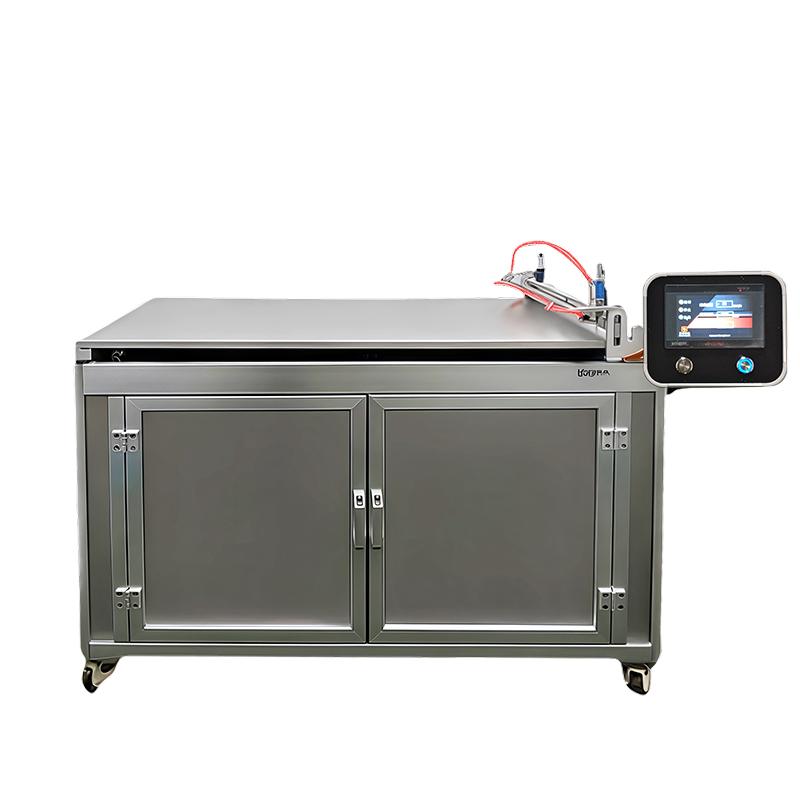

HuiNuo TM3000/12AFD Automatic Film Applicator is a multifunctional Spreader device that supports two coating methods, bar and Drawdown blade. The coating speed can be stepless in the range of 1~ 300mm/s, and can be customized according to needs. The equipment is equipped with an automatic feeding system, which adopts the principle of air source pressure outflow to realize reciprocating linear motion feeding, which is suitable for Spreader applications of various substrates.
Features
1. Various coating methods: support bar and Blade Coating, bar accuracy +/- 0.001mm, Blade Coating accuracy +/- 0.003mm.
2. Automatic feeding system: Adopt the principle of air source pressure outflow, the amount of material can be adjusted, and the Mixing Tank volume is 1L, and the material is 304 stainless steel.
3. High Accuracy Control: Coating speed stepless speed regulation, feeding traverse speed 2~ 150mm/s, equipped with color LCD Touchscreen, Operating language can be Chinese or English.
4. Flexible customization: coating speed, effective coating area and other parameters can be customized, optional heating and Vacuum chuck function.
5. Safe and reliable: Mixing Tank equipped with safety valve, pressure regulating valve, pressure gauge, discharge valve, the maximum pressure can withstand 8Mpa.
Principle
Automatic Film Applicator performs Spreader on the substrate through bar or Drawdown blade. The thickness of bar Spreader is determined by the rod number, and the thickness range of Blade Coating is 0.1~ 10mm. The automatic feeding system is driven by the air source pressure (0.6Mpa), and the material is extruded from the Mixing Tank by reciprocating linear motion. The amount of material is controlled by adjusting the air pressure and the running speed of the discharge port to achieve uniform Spreader.
Applications
Coatings, inks, Adhesives, Electronic materials, paper, film
Standards
Power standard: 100V~ 220V/50~ 60HZ
Steps
1. Prepare the substrate and fix it on the Glass Spreader stage.
2. Select the bar or Blade Coating method according to your needs, and set the coating speed.
3. Start the automatic feeding system, adjust the air pressure and discharge port speed to control the discharge volume.
4. Start the Spreader process by setting parameters through Touchscreen.
5. After the Spreader is completed, clean the device and turn off the power.
Notice
• Make sure the air source pressure is 0.6Mpa before use, and connect the 8-Mpa trachea.
• Mixing Tank Pressure shall not exceed 8MPa to avoid overpressure operation.
• Spreader process pay attention to the substrate is fixed to prevent displacement.
• Regularly check the safety valve, pressure regulator and other components of the feeding system to ensure normal operation.
• The power supply of the equipment is 100V~ 220V/50~ 60HZ, which needs to match the local voltage standard.
• Optional features such as heating and Vacuum chuck need to be configured according to actual needs.
