Overview

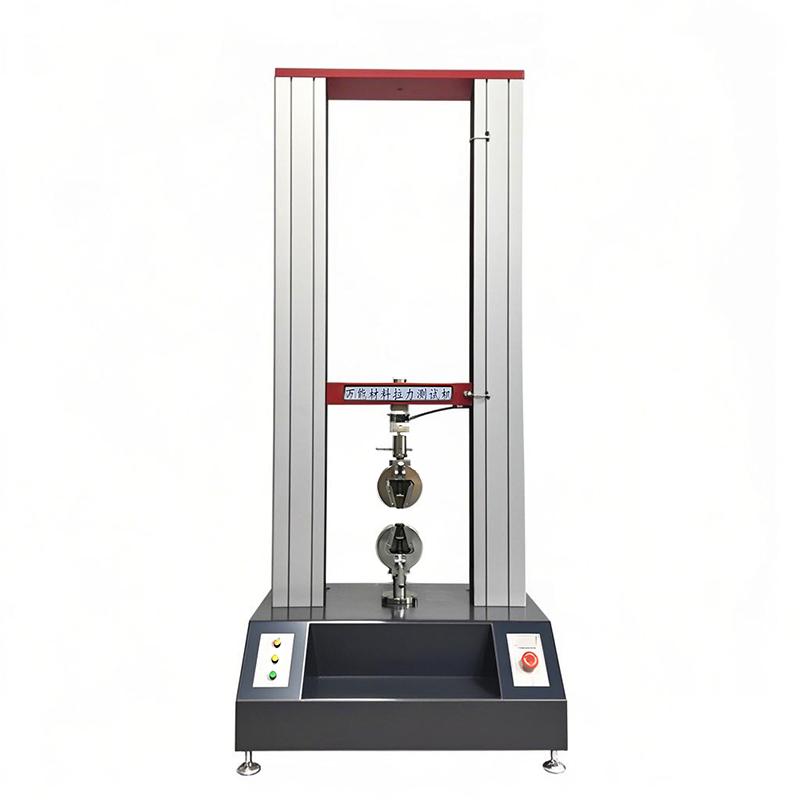

Lugong STS10K Double Arm Universal Testing Machine is suitable for measuring the mechanical properties and related physical parameters of various materials under stretching, compression, bending, shearing, tearing, disbonding, puncture and other states. It can perform stretching, compression, three-point bending, four-point bending, shearing, tearing, disbonding, finished shoe puncture, carton holding pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests, and can test and provide data according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Features
1. Mechanical process structure: The main frame consists of a base, two columns and two precision ball screws to form a gate-type floor-to-ceiling frame structure. The transmission loading system adopts a servo motor and a synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate and drive the moving beam to achieve loading. Beautiful shape, Stability, rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
2. Control and measurement system: user rights hierarchical management mode, powerful test management function, powerful data and Linear dispersion analysis function, convenient report editing, test unit can be arbitrarily set according to needs, multiple protection mechanisms, test data reminder storage to avoid accidental loss, multi-language one-click switching, using USB or serial communication, stable and reliable data transmission, strong anti-interference ability.
Principle
The drive loading system adopts servo motor and synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drive the moving beam to realize loading. The mechanical properties of the material in the state of stretching, compression, bending and shearing are accurately measured and recorded by the control and measurement system.
Applications
Material tensile test, compression test, bending test, shear test, tear test, disbonding test, puncture test, finished shoe puncture test, carton holding pressure test, foam cycle compression test, spring tension and compression test, dynamic and static cycle test
Standards
GB、ISO、DIN、ASTM、JIS
Steps
1. Set up the test unit according to the test requirements.
2. Select the appropriate test mode (e.g. tensile, compression, bending, etc.).
3. Start the servo motor and load it by moving the beam.
4. Real-time monitoring and recording of force values, deformation, displacement, and other parameters.
5. Process results using data and Linear dispersion analysis.
6. Generate and edit test reports.
Notice
• Ensure that the power supply is 220 +/- 10% VAC, Frequency 50Hz, to avoid voltage instability.
• Stability of mechanical structures such as ball screws and columns is checked regularly.
• Measurement range is within 1%~ 100% FS to avoid overloading.
• Priority is given to using USB or serial ports during data transmission to ensure anti-interference.
• Test data is stored in a timely manner to prevent accidental loss.
• Pay attention to the displacement rate adjustment range of 0.01~ 500mm/min during operation to avoid being too fast or too slow.
• When customizing effective stretch travel, compression travel or dimension according to your needs, you need to confirm the specifications in advance.
