Overview

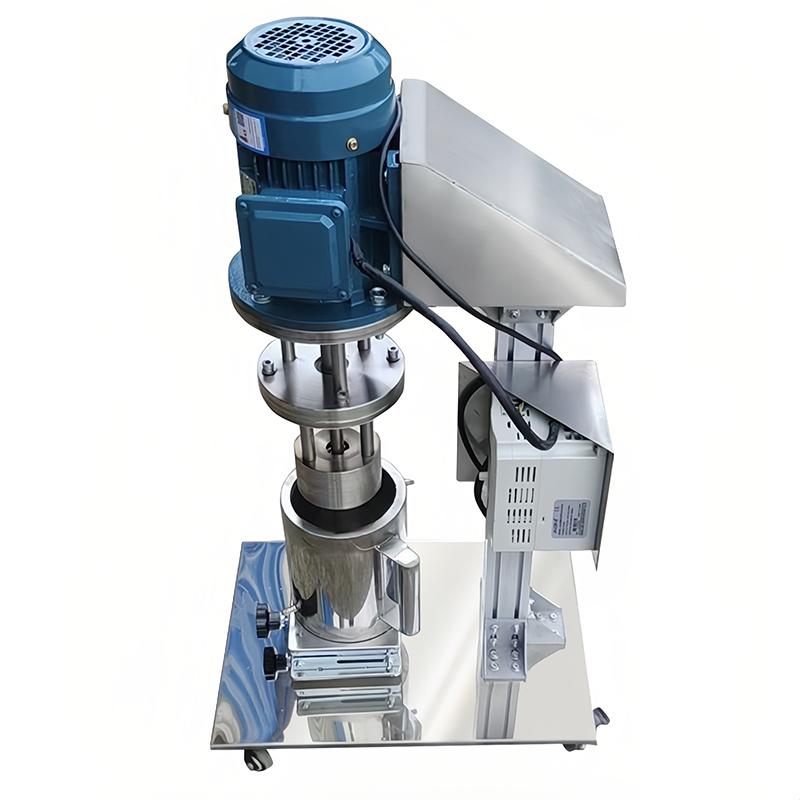

The laboratory manual lift basket sand mill is an economical wet dispersion grinding equipment developed by MUXUAN brand for scientific research institutions and enterprises and institutions, model MXY-A750-1.5/01. The equipment can operate stably for a long time, with low noise, and complete two production processes of dispersion and grinding at the same time, effectively reducing the fineness of medium and low viscosity materials in a short time.
Features
1. High grinding efficiency, good product fineness: Rotation speed 3500rpm, arc impeller kinetic energy drive, zirconia lever to make the grinding medium irregular movement, fineness up to 10um or less, liquid-liquid dispersion ground up to sub-micron or even nano level; separation plate using CNC control numerical processing of the whole material, long life without clogging.
2. Easy to operate, easy to clean: its own energy-saving inverter to control the start and speed; manual or electric lifting device; the cylinder and lid are relatively closed, and the solvent volatilization is less; the unique design of the grinding cavity, direct solvent circulation cleaning; the whole machine stainless steel design, easy to clean; can set the grinding time to stop regularly.
3. Small temperature rise, stable product: Mixing Tank with double-decked chill down jacket, mirror polishing treatment, water chill down during operation, conventional temperature rise is less than 10 °; multiple barrels can be customized for easy use.
4. Strong non-standard: lifting form can be customized manual or electric; non-standard customized explosion-proof type; material contact parts can be made of SS304 or SS316L material; support high temperature, high voltage, flammable, explosive, corrosion and other working conditions tailor-made.
Principle
When the laboratory manual lift basket sand mill motor is running, it drives the dial rod and dispersion disc to swirl/spin at high speed, so that the ground body generates negative pressure, which prompts the material to be forcibly sucked into the grinding cavity, and the high-density zirconia beads continue to collide and rub, so that the material particle size becomes smaller and the fineness is reduced.
Applications
Interior-wall latex paint, industrial paint, wood paint, various colorants, water-based oily inks, pesticide suspensions
