Overview

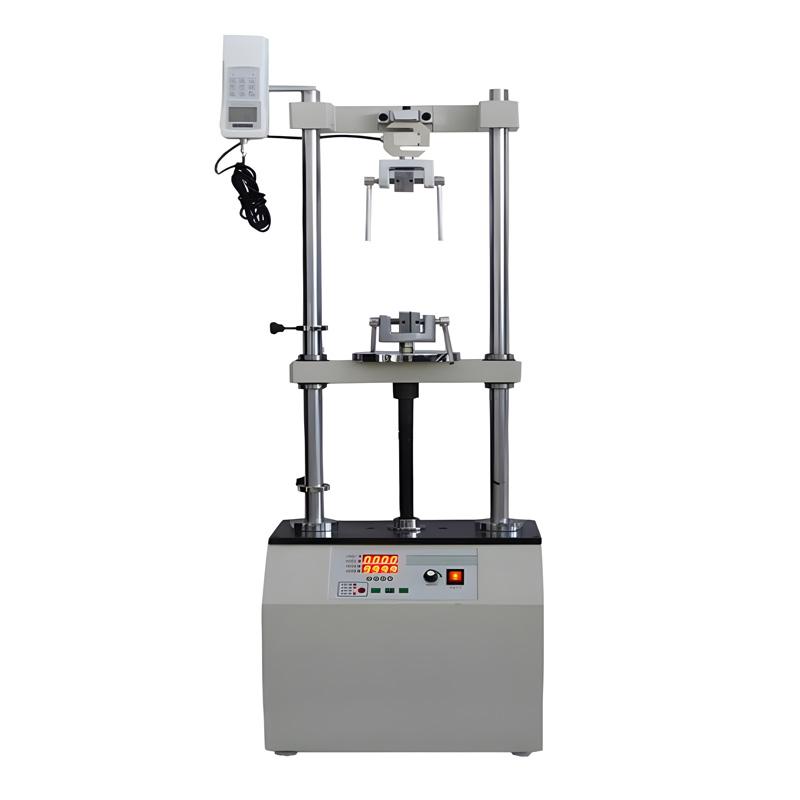

This HBO HDD-10K electric double column Universal Testing Machine adopts double guide rod structure and motor drive, which is suitable for tensile pressure load test, insertion force test, failure test of various products, etc. It can realize a variety of practical functions such as pull-off and stop, force value maintenance, applied force limit, fatigue test, etc. It is widely used in mass inspection, physical experiment, engineering test and other fields. It is equipped with special host computer operating software to connect to the computer, and supports data storage, analysis, export, query and printing.
Features
1. Dual-screen backlight display
2. Value types include real-time force tracking, peak hold, first peak, button pressure-resilience
3. Four test modes: automatic counting, automatic timing, manual counting, manual timing
4. Test speed adjustable
5. It can be pointed and operated automatically, which is convenient for adjusting the upper and lower positions of the fixture before the test
6. The pause time during the sample batch test can be set, and the sample clamping time can be customized
7. The loading force can be set, and the beam remains stationary or returns to the origin when the preset force is reached
8. Force holding function: Loading force holding time can be freely set
9. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
10. Pull and break and stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
11. Equipped with limit protection devices and leakage protection devices
12. Test direction display (pull, thrust)
13. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
14. Store 99 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
15. RS232 and USB dual interface, convenient with industrial computer PLC, PC Connectivity
16. Host computer software: Chinese WINDOWS interface
17. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
18. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
19. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
20. Test data: The data obtained from the test can be queried and exported in excel format
21. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The testing machine is loaded by motor drive and double guide rod structure, using electric loading mode, force sampling Frequency is 120HZ, to ensure the accuracy class is 0.5, indication relative error ≤ +/- 0.5%. The equipment supports a variety of test modes, including automatic counting, automatic timing, manual counting and manual timing. Test speed is stepless in the range of 0-500mm/min, and can be set to time range 0-9999s and number range 0-9999 times (round trip) to achieve accurate force value control and data collection.
Applications
Mass inspection, physical experiment, engineering test
Steps
1. Connect the power supply (AC 220V 50/60HZ) and start the device
2. Adjust the upper and lower position of the fixture by pointing or automatic operation
3. Set test parameters, including test mode, speed, loading force, holding time, number of round-trip movements, etc
4. Install the specimen and set the pause time for batch testing
5. Start the test, the equipment runs automatically and collects data
6. After the test is completed, query, analyze, export data or print reports through the host computer software
7. Use limit protection devices to ensure safe operation
Notice
• Check the power supply and cable before operation to ensure safety
• Set the upper and lower limit comparison value to avoid overload, pay attention to the sound alarm
• Pay attention to limit protection during the test to prevent equipment damage
• Maintain Equipment Regularly to Ensure Precision
• Use leakage protection devices to prevent electrical accidents
• Ensure a stable computer connection when exporting and storing data
