Overview

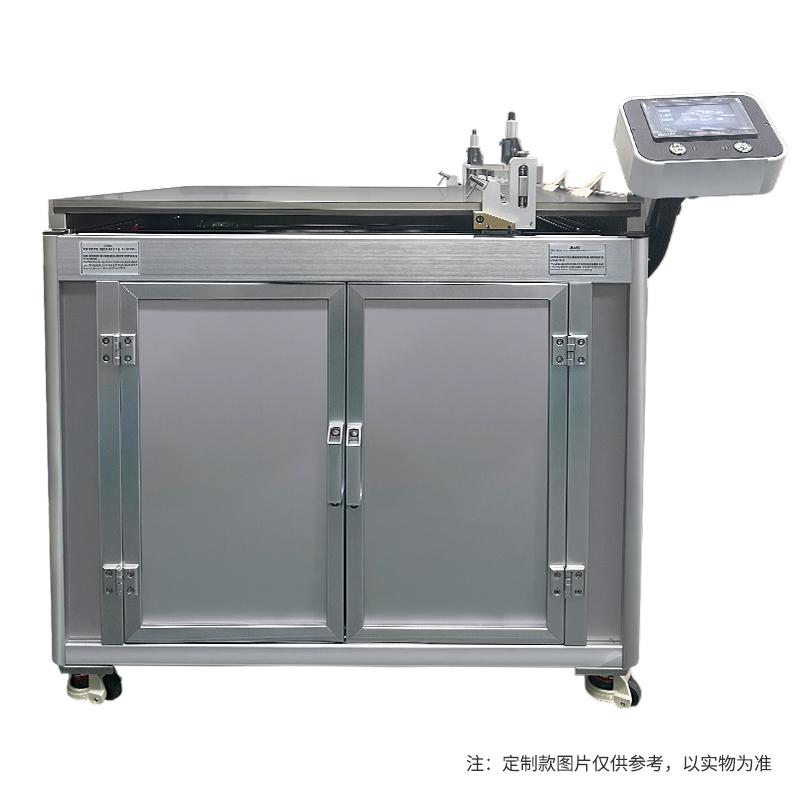

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a drawdown Bar & blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader and are easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
University research institutes, New materials, lithium batteries, glue, Resin and other laboratories for Moulding proofing
Steps
1. Set Spreader parameters (application length, Spreader speed)
2. Select coating method (bar Spreader or Blade Coating)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Start Film Applicator for Auto Spreader
5. Clean the Spreader head after finishing the Spreader
Notice
• Make sure the Smoothness of the countertop meets the requirements before use
• Select the appropriate coating method and thickness range according to the sample characteristics
• Regularly clean the Clamped Blade Coating Head to maintain Spreader accuracy
• Pay attention to the safe use of Vacuum chuck and heating function when operating
• Customized functions need to confirm technical parameters in advance
