Overview

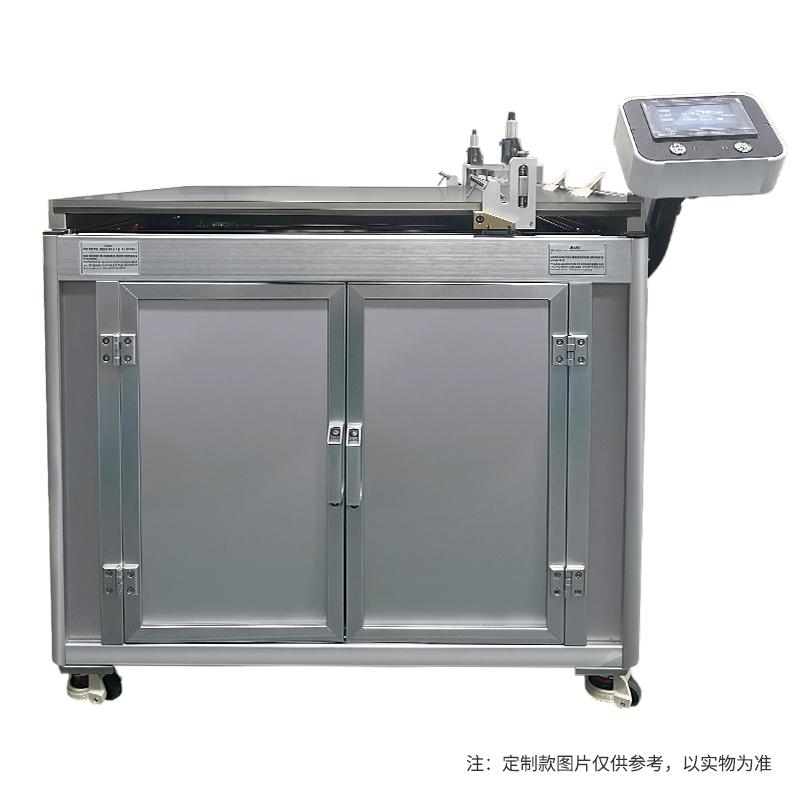

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a drawdown Bar & blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader and are easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
University research institutes, New materials, lithium batteries, glue, Resin and other laboratories for Moulding proofing, suitable for coatings, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glue, polymer materials, pharmaceuticals and other film samples, can be scraped on Glass, cardboard, fabric.
Steps
1. Prepare the substrate and samples
2. Fix the substrate on the Spreader stage using Vacuum chuck or fixture
3. Choose the bar or Blade Coating method according to your needs
4. Set application length and Spreader speed parameters through Touchscreen
5. Start the device for automatic filming
6. Remove the sample after the Spreader is completed
7. Spreader head and countertop
Notice
• Please read the instructions carefully before operation
• Power supply voltage meets equipment requirements (100V~ 220V/50~ 60HZ)
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and parameters according to the sample characteristics
• Regularly clean the Spreader head and countertop to keep the equipment clean
• Pay attention to temperature control when using the heating function to avoid burns
• Turn off the power supply in time after the device is used
