Overview

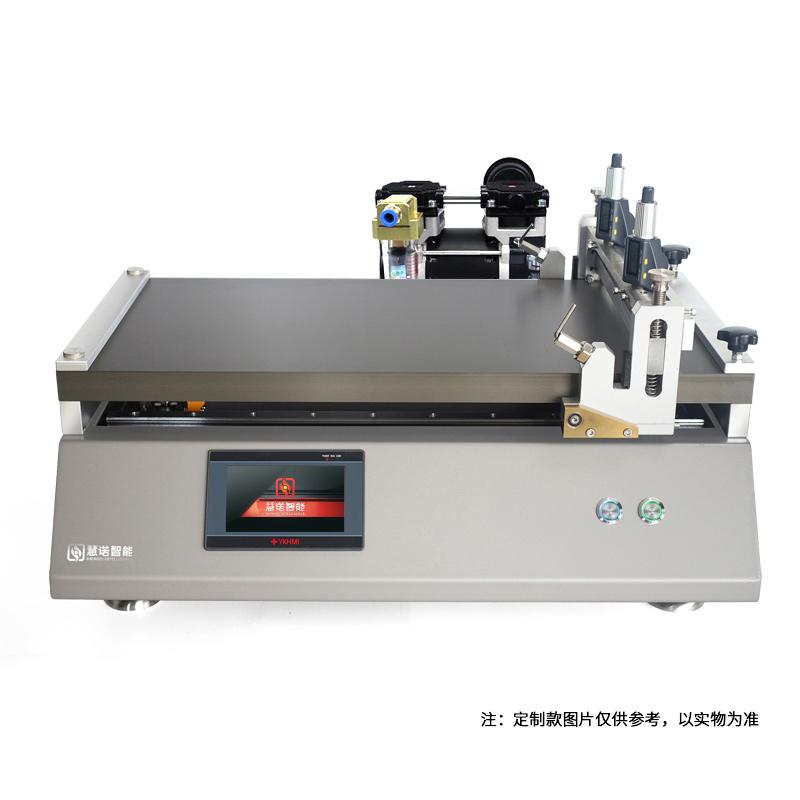

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a drawdown Bar & blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader and are easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. The device adopts bar Spreader and Blade Coating, which are driven by servo motors and fixed with Vacuum chuck to realize High Accuracy automatic film.
Applications
Moulding proofing in research institutes of universities, New materials, lithium batteries, glues, Resin and other laboratories. Suitable for coating, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples, can be scraped on Glass, cardboard, cloth.
Steps
1. Prepare the substrate and samples
2. Place the substrate on the Spreader table and fix it by Vacuum chuck
3. Set Spreader parameters (application length, Spreader speed, film thickness, etc.)
4. Select coating method (bar Spreader or Blade Coating)
5. Start the device for automatic filming
6. Remove the sample after finishing the film
7. Spreader head and countertop
Notice
• Please read the instruction manual carefully before operation
• Ensure that the power supply of the equipment meets the requirements (100V~ 220V/50~ 60HZ)
• Spreader check Vacuum chuck system working properly
• Regularly clean the Spreader head and countertop to keep the equipment clean
• Pay attention to temperature control when using the heating function to avoid burns
• Device weight is heavy (40kg), pay attention to safety when handling
• Customized functions need to be confirmed with the manufacturer in advance
