$ 6128.00Ex works
Servo motor to ensure stable operation, film accuracy of +/- 0.001mm, coating speed 1~ 300mm/s stepless speed regulation, clamshell Drawdown blade for easy cleaning, suitable for a variety of materials uniform Spreader.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB049272
Service :The delivery and service By NBCLab.Com

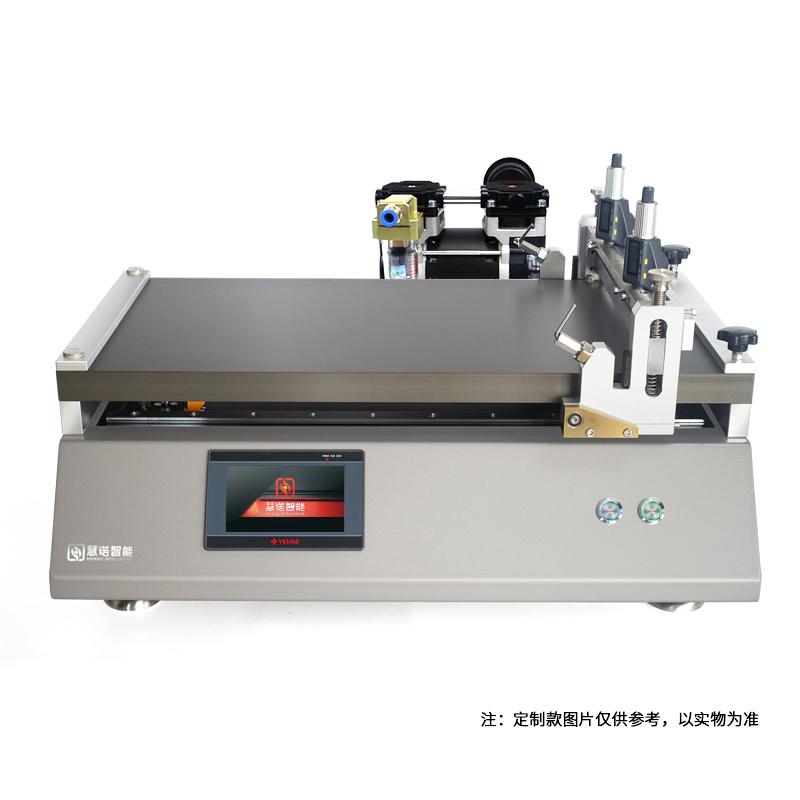

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. High Accuracy film applicator, original imported bar film uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With heating and Vacuum chuck function 8. Servo motor, more stable operation, higher film accuracy
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automated film is realized by using bar Spreader and Blade Coating, driven by servo motor, combined with Vacuum chuck and heating functions.
Paint, inks, paints, Stock, Lithium Battery, Pressure sensitive adhesive, Resin, Glue, Polymer Materials, Pharmaceuticals and other film sample preparation, can be scraped on Glass, cardboard, fabric
1. Prepare the substrate and samples 2. Set Spreader parameters (application length, Spreader speed, etc.) through Touchscreen 3. Select coating method (bar or Drawdown blade) 4. Start Vacuum chuck fixed substrate 5. If heating is required, set the heating temperature 6. Start the film program 7. Spreader head after film
• Make sure the power supply of the device is connected correctly before operation • Spreader parameter settings need to be adjusted according to sample characteristics • Clean the Spreader head in time after use, especially the clamshell Drawdown blade • Vacuum chuck function ensures the substrate is flat when used • Pay attention to temperature control when using the heating function to avoid burns • Regularly check equipment operation status to ensure accuracy and Stability
Recommend the wire rod and blade coater because it combines two coating methods: wire rod and blade. The wire rod coating precision can reach ±0.001mm, making it suitable for preparing samples like lithium battery slurry that require highly uniform thin films. The machine uses servo motors and differential regulators to precisely control coating speed and thickness, ensuring consistent film formation and improving experimental efficiency.
In university new materials laboratories, it is primarily used for coating film preparation of samples such as paints, adhesives, resins, and polymer materials. With both wire bar and blade functions, it offers a wide range of coating thicknesses (different wire bar numbers are available, and the blade range is 0.1-10mm). Additionally, it features heating and vacuum adsorption capabilities, enabling coating on various substrates such as glass and cardboard, making it suitable for diverse thin film preparation needs in scientific research.
It is recommended to choose a model equipped with a flip-type doctor blade coating head. The thickness of the doctor blade can be adjusted within a range of 0.1 to 10 mm, with an accuracy of ±0.003 mm. The flip design makes cleaning particularly simple, allowing for quick removal of residual samples without disassembly. Additionally, the touchscreen enables free adjustment of coating length and speed, making daily use both flexible and convenient.
