Overview

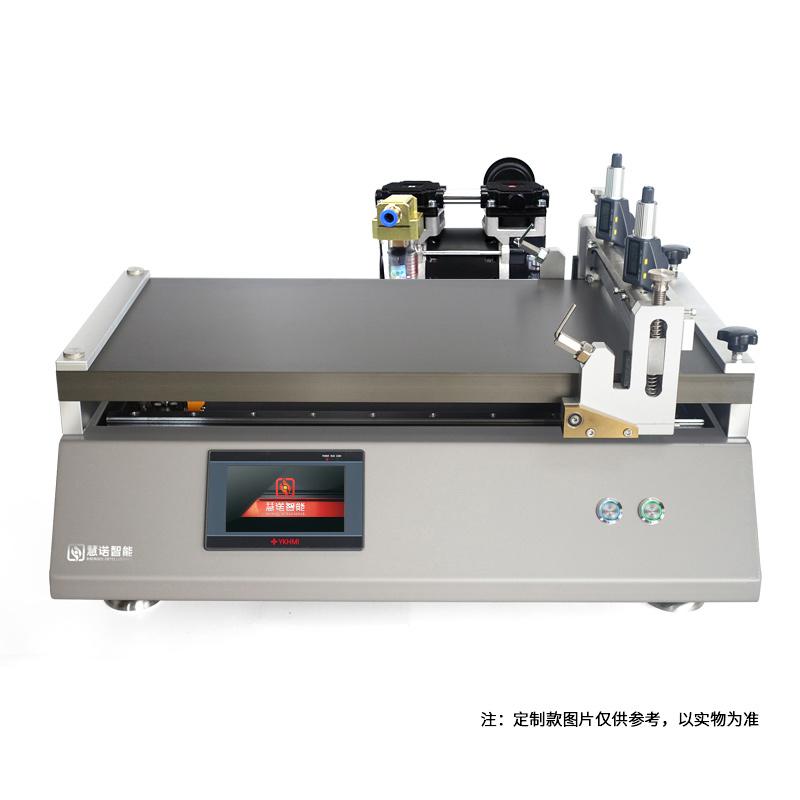

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed, etc.)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Select coating method (bar or Drawdown blade)
5. Start Film Applicator Spreader
6. Clean the Spreader head after finishing the Spreader
Notice
• Make sure the power supply of the equipment is stable before operation
• Spreader parameters need to be adjusted according to sample characteristics
• Regularly clean Spreader heads and countertops
• Make sure the substrate is flat when using Vacuum chuck
• Pay attention to temperature control when using the heating function
• Customized functions need to confirm the specifications in advance
