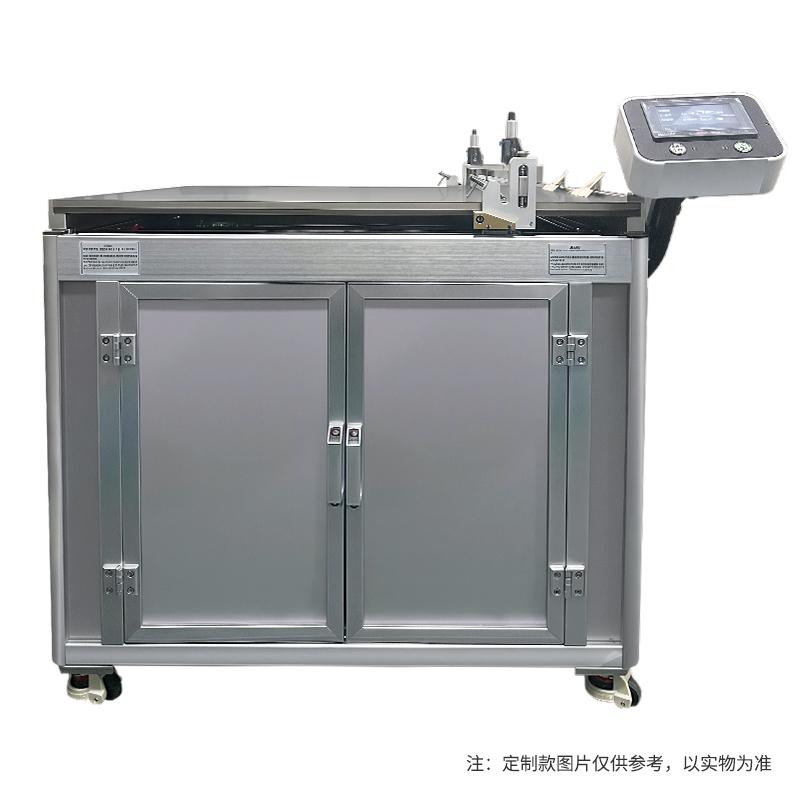

HuiNuo TM3000proA/15D Automatic Film Applicator drawdown Bar & blade Coater High Accuracy film

Name: HuiNuo TM3000proA/15D Automatic Film Applicator drawdown Bar & blade Coater High Accuracy film
Brand: HuiNuo
SKU: NB049297

Please contact customer service

Servo motor drive to achieve stepless speed regulation of 1~ 300mm/s, meyer Rod coating accuracy of +/- 0.001mm, clamshell Drawdown blade design for easy cleaning, support 1000 * 600mm effective coating area.

Model

TM3000proA/15D

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB049297

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.

Features

1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. High Accuracy film applicator, original imported bar film uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed

Principle

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.

Applications

Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples

Standards

3C certification national standard

Steps

1. Prepare the substrate and samples 2. Set application length and Spreader speed via Touchscreen 3. Select Bar or Blade Coating Method 4. Start the device for automatic filming 5. Clean the Spreader head after finishing the film

coating method
Bar + drawdown blade
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Aluminum alloy + Hardness oxidation treatment
Coating table Size
1240*630mm
Coating Size
1000*600mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
Bar accuracy
±0.001mm
Blade Coating Thickness Range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
600mm
Blade Coating accuracy
±0.003mm
Motor Type
Servo motor
Power
400w
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
100V~220V/50~60HZ
Dimension
1260 * 740 * 940Mm (subject to the actual product)
optional feature
Heating, Vacuum chuck

[Q] I want to perform lithium battery separator coating in the lab, with high requirements for film thickness uniformity. Do you have any recommendations for automatic coating machines?

It is recommended to use an automatic film applicator with dual functions of wire rod and blade. This is because the wire rod coating precision can reach ±0.001mm, making it suitable for coating samples like lithium batteries, which require extremely high uniformity in film thickness, ensuring the accuracy of experimental data.

[Q] Our lab frequently needs to test adhesives and resins of varying viscosities. How should we choose a film applicator?

For materials with a wide viscosity range, such as adhesives and resins, it is recommended to choose a model with a coating speed range of 1-300 mm/s in stepless adjustment and equipped with both wire rod and blade coating methods. This allows for flexible adjustment of speed and coating heads based on the fluidity of the sample, ensuring reliable coating results for both low-viscosity resins and high-viscosity adhesives.

[Q] Is it troublesome to clean the blade head of the film applicator? We change our experimental samples quite frequently.

We recommend choosing a model with a flip-top scraper head. This design allows you to open it directly for cleaning the blade, offering flexibility and convenience. It greatly saves cleaning time when switching between different experimental samples and improves experimental efficiency.
