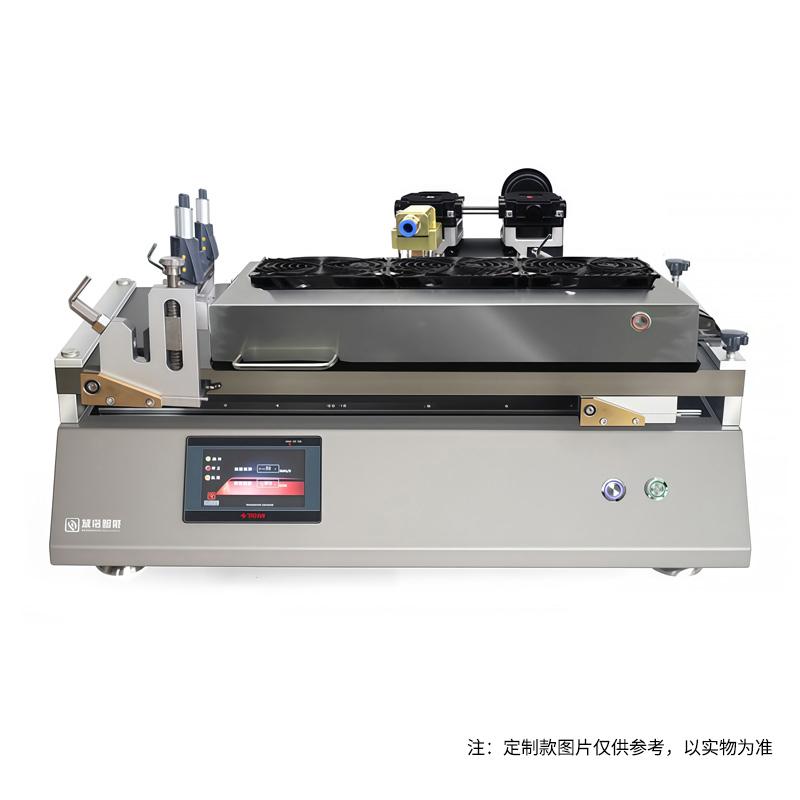

HuiNuo TM3300Pro/24 Automatic Film Applicator drawdown Bar & blade Coater Vacuum chuck High Accuracy film

Name: HuiNuo TM3300Pro/24 Automatic Film Applicator drawdown Bar & blade Coater Vacuum chuck High Accuracy film
Brand: HuiNuo
SKU: NB049322

Please contact customer service

The equipment adopts bar and Drawdown blade double coating method, coating speed 1~ 300mm/s stepless speed regulation, Spreader accuracy bar +/- 0.001mm, Drawdown blade +/- 0.003mm, with Vacuum chuck and heating function, support Touchscreen operation, suitable for high uniformity film of various substrates.

Model

TM3300pro/24

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB049322

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is drawdown Bar & blade Coater, using bar and Drawdown blade two coating methods, with Vacuum chuck function, innovative bar Installation method and clamshell Drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.

Features

1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. High Accuracy film applicator, original imported bar film uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader

Principle

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.

Applications

Coatings, inks, paints, Stock, hot-melt adhesives, Lithium batteries, Pressure sensitive adhesives, Resin, Glue, Polymer materials

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

coating method
Bar + drawdown blade
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
Vacuum chuck + fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table Size
940*330mm
Coating Size
700*300mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
meyer rod coating accuracy
±0.001mm
Blade Coating Thickness Range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
300mm
Blade Coating accuracy
±0.003mm
Vacuum Area
780 * 260Mm (can be customized)
Vacuum aperture diameter
Φ0.8mm
Vacuum hole pitch
20*20mm
Vacuum pump pumping rate
5.4m³/h
Ultimate vacuum degree
50KPa
Vacuum Pump Power
180W
Vacuum pump weight
7.1kg
Heating mode
Platen Heating + Top Heating
Heating mode
Mica sheet heating (optional graphene heating, faster thermal conductivity)
Temperature Range
RT +~ 180 ℃ (can be customized)
Temperature Uniformity
±1℃
Motor Type
Servo motor
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
100V~220V/50~60HZ
Power
1800w
Dimension
960*440*430mm
weight
40kg

[Q] I need an automatic coating machine for laboratory use, primarily for applying lithium battery slurry. It requires high precision in film thickness control and excellent coating uniformity. Do you have any recommendations?

Based on your requirements for lithium battery slurry coating and high-precision film thickness control, we recommend selecting an automatic coating machine equipped with a high-precision differential regulator and imported high-precision wire-wound rods. This type of equipment can achieve a coating precision of ±0.001mm with the wire-wound rod, ensuring highly uniform slurry coating, which is crucial for the repeatability and consistency of lithium battery electrode preparation. Additionally, the servo motor drive ensures stable coating speed, further enhancing the quality of the film.

[Q] In our lab, we often need to apply hot melt adhesive or glue onto soft aluminum or copper foils. The substrate tends to shift during coating, which affects the film quality. What should we do?

To address the issue of easy shifting during coating on soft foil materials, it is recommended to use an automatic film applicator with vacuum adsorption functionality. It can firmly secure aluminum foil, copper foil, or thin films through densely arranged vacuum holes on the worktable, preventing substrate slippage or wrinkling during the coating process. Combined with a flip-open scraper head, it also facilitates the cleaning of residual adhesive after coating, making it suitable for sample preparation with materials such as hot melt adhesives.
