Overview

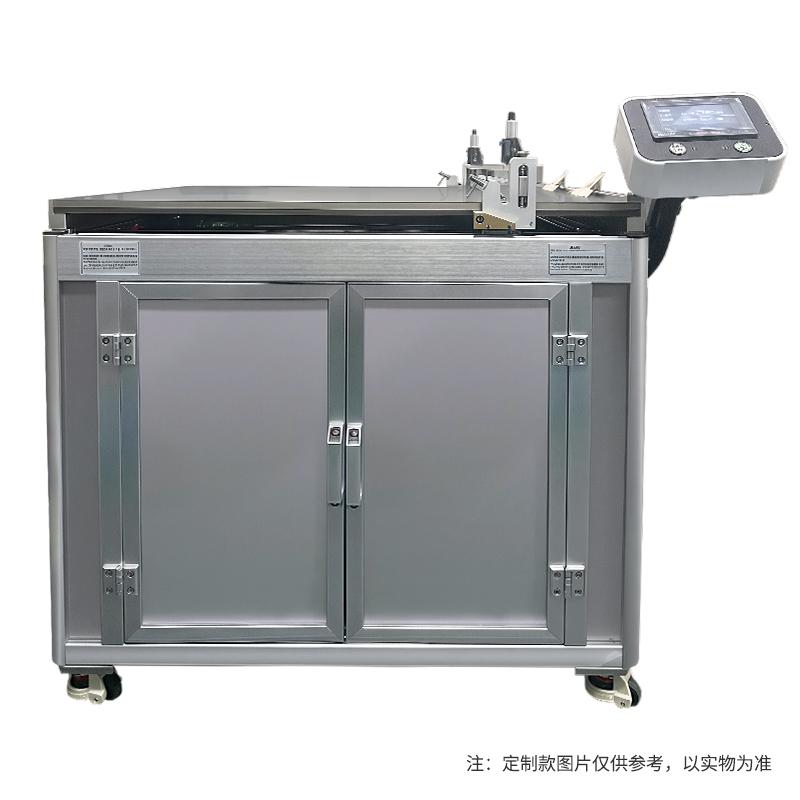

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, using two coating methods of bar and Drawdown blade, with Vacuum chuck function, the innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy cleaning, support speed control and application length adjustment, suitable for high Accuracy automatic film in the laboratory.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Moulding proofing in laboratories such as university research institutes, New materials, lithium batteries, glues, hot-melt adhesives; coating, inks, paints, Stock, hot-melt adhesives, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials and other film samples
Steps
1. Set Spreader parameters (application length, Spreader speed)
2. Select coating method (bar or Drawdown blade)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Start Film Applicator for Auto Spreader
5. Clean the Spreader head after finishing the Spreader
