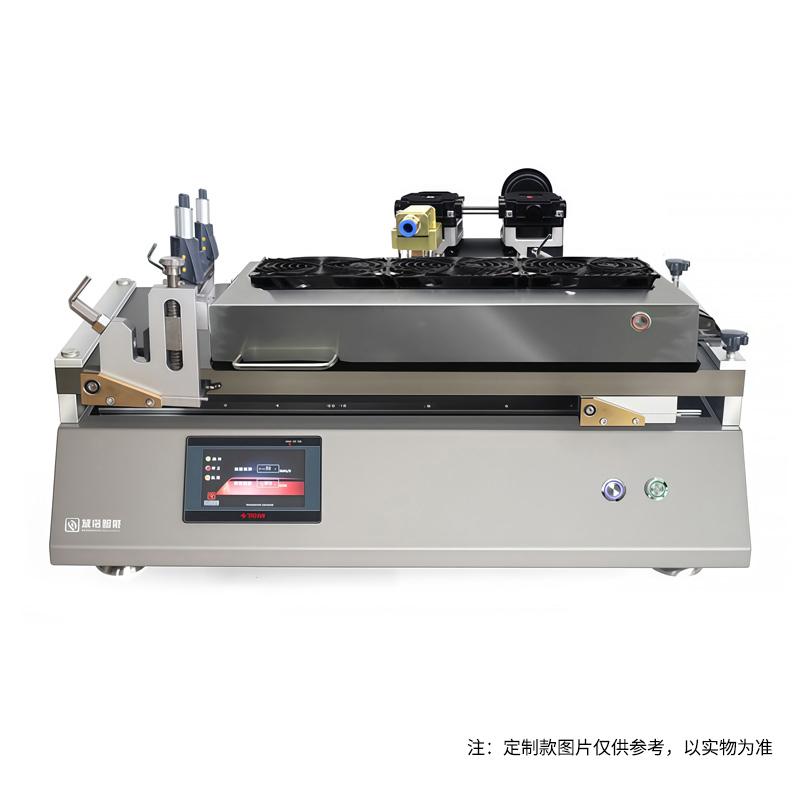

HuiNuo TM3100Pro/01 Automatic Film Applicator drawdown Bar & blade Spreader Vacuum chuck High Accuracy

Name: HuiNuo TM3100Pro/01 Automatic Film Applicator drawdown Bar & blade Spreader Vacuum chuck High Accuracy
Brand: HuiNuo
SKU: NB049350
Price: 4057.0 USD
Availability: PreOrder

$ 4057.00Ex works

Drawdown blade with bar and two coating methods, coating speed 1~ 300mm/s stepless speed, film thickness control accuracy of +/- 0.001mm, clamshell design for easy cleaning, Vacuum chuck for soft substrates.

Model

TM3100pro/01

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB049350

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, using two coating methods of bar and Drawdown blade, with Vacuum chuck function, the innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy cleaning, support speed control and application length adjustment, suitable for high Accuracy automatic film in the laboratory.

Features

1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. High Accuracy film applicator, original imported bar film uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader

Principle

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.

Applications

Moulding proofing, coatings, inks, paints, Stock, hot-melt adhesives, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials and other film samples

coating method
Bar + drawdown blade
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table Size
600*300mm
Coating Size
400*300mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
meyer rod coating accuracy
±0.001mm
Blade Coating Thickness Range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
300mm
Blade Coating accuracy
±0.003mm
Heating mode
Platen Heating + Top Heating
Heating mode
Mica sheet heating (optional graphene heating, faster thermal conductivity)
Temperature Range
RT +~ 180 ℃ (can be customized)
Temperature Uniformity
±1℃
Drive motor
Servo motor
Power
2000w
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
220V/50HZ (can be customized 110V/60HZ)
Dimension
658*438*400mm

[Q] For preparing coated samples of lithium battery materials in the laboratory, what instruments would you recommend?

Recommend the TM3100pro/01 automatic coating machine. This device adopts two coating methods: wire rod and blade, with high coating precision. The wire rod coating accuracy can reach ±0.001mm, making it suitable for sample preparation requiring high coating uniformity, such as lithium battery materials. It features a vacuum adsorption function, which can stably fix soft substrates like aluminum foil and copper foil, ensuring a smooth coating process. It is an ideal choice for film preparation and sampling in lithium battery laboratories.

[Q] In our laboratory, we frequently need to coat viscous samples such as hot melt adhesives and glues, and we prefer easy cleaning. Are there suitable coating machines available?

For viscous samples such as hot-melt adhesives and glues, we recommend the Huinuo TM3100pro/01. It is equipped with a flip-top blade coating head, which can be easily opened after coating for thorough cleaning, preventing sample residue and cross-contamination. Additionally, the device supports heating from both the base plate and the top, with a temperature control range of up to 180°C. This effectively reduces the viscosity of hot-melt adhesives and similar samples, making them easier to coat evenly. It is suitable for use in new materials and adhesive laboratories.

[Q] We need a coating machine that can handle both very thin precision coatings and thicker layers. How should we choose in terms of functionality?

If you need to balance both thin-layer and thick-layer coating, the Huinuo TM3100pro/01 is an excellent choice. It integrates both wire rod and blade coating methods: using imported high-precision wire rods enables extremely thin coatings, with thickness options available based on the rod number. Meanwhile, its flip-type blade can handle relatively thick coatings ranging from 0.1 to 10 mm. With just one machine, you can meet various experimental needs, from precise thin coatings to conventional thick coatings, offering comprehensive functionality and high cost-effectiveness.
